Appendix C Cabling Diagrams Gen 3 Site Controller System Manual
Site Controller Cabling
C-8 68P80801E30-A 5/1/2002
Table C-3 identifies and Figure C-4 shows site controller E1 120Ω (2.048
Mb) cabling.
Note: All cabling for E1 120Ω Control Racks is the same as that shown in
Table C-1 (Site Controller T-1 Cabling) . In addition, the following
cables shown in Table C-3 and Figure C-4 are also included for E1
120Ω communication.
Table C-3 Site Controller E1 120 Ω (2.048 Mb) cabling
Index
number
Part
number
From To Notes
43 3082468Y03
Modular T-Adapter on
Controller A, T1/E1-1
Connector
Network
44 3082468Y03 Modular T-Adapter on
Controller A, T1/E1-1
Connector
Network
iSC400
102600JNM
10B2-1123 10/100B-T10B2-210B2-3
X.21
SITE REF OUT
PARALLELSERIALREDUND4321
T1/E1
GPS
-48V RTN
BAT
iSC400
102600JNM
10B2-1123 10/100B-T10B2-210B2-3
X.21
SITE REF OUT
PARALLELSERIALREDUND4321
T1/E1
GPS
-48V RTN
BAT
iSC400
102600JNM
10B2-1123 10/100B-T10B2-210B2-3
X.21
SITE REF OUT
PARALLELSERIALREDUND4321
T1/E1
GPS
-48V RTN
BAT
iSC503
032801JNM
TO NETWORK
43
44

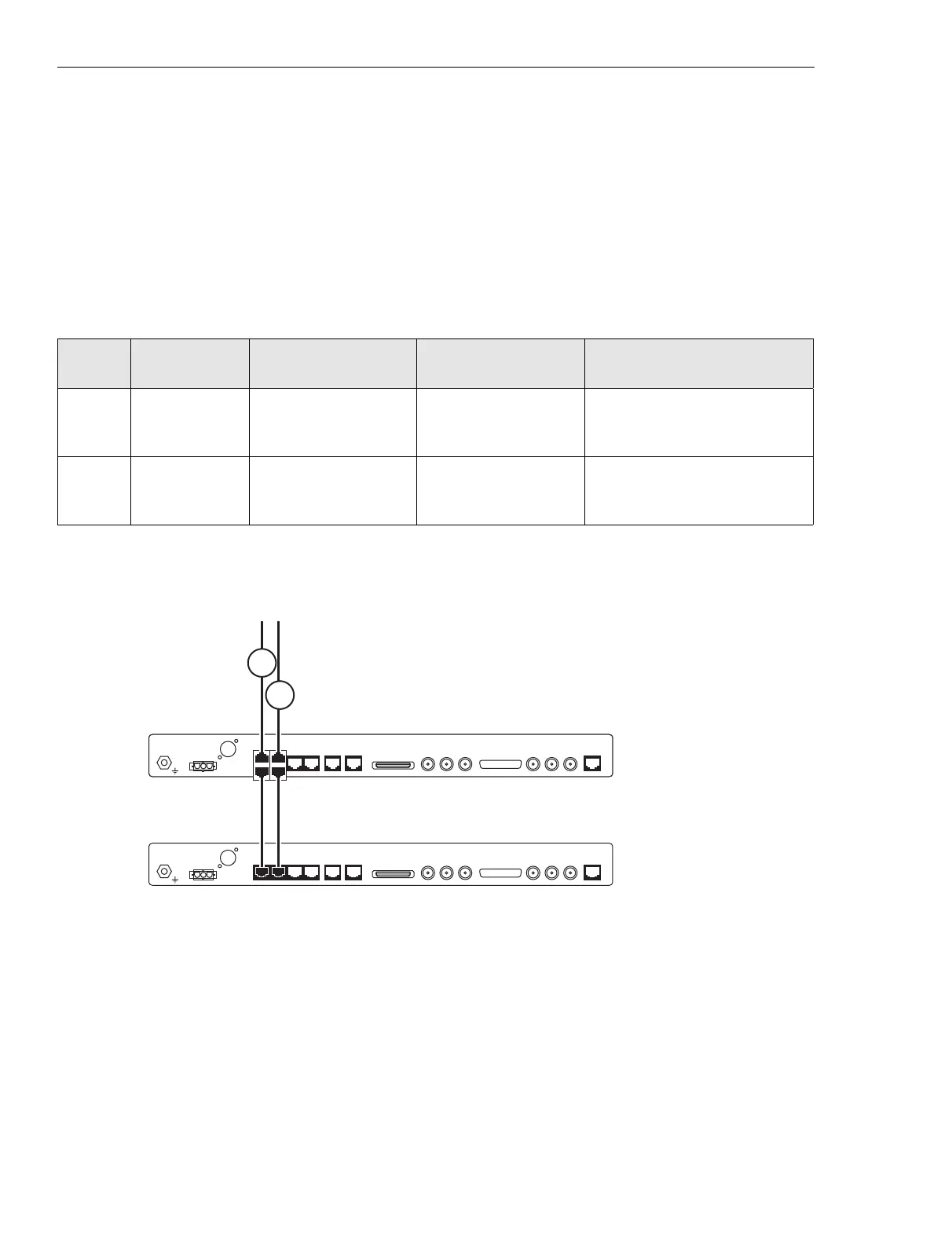

Figure C-4 120 Ω (2.048 Mb) E1 Cabling
