T1 Connection Test
6-18 68P80801E30-A 5/1/2002
2. Disconnect the Telco SmartJack from the Telco surge arrestor.
3. Connect the T1 test set into the surge arrestor.
If the Controller is not currently connected to the Telco demarcation
point, the T1 test set can be plugged directly into the Controller.
4. Configure the T1 test set to the settings indicated in Table 6-3.
T1 test procedure
This test involves equipment looping using the loop [line #] and deloop
[line #] MMI commands.
Table 6-3 Settings for the T1 test set
Function Setting
Receive input Term
Transmit output 0dB(DSX)
Timing Int
Test Cont
Code B8ZS
Print Event Off
Mode ESF
Pattern T1-QRSS
Results I Summary
Results II Time
DEMARC POINT
8 CONDUCTOR
MODULAR CABLE
T
1 PHONELINE
TELCO MAINTAINED CUSTOMER MAINTAINED
IN OUT NETWORK
T1
TEST SET
FACILITY
TX/RCV
TEST
CABLE
DISCONNECTED
CABLE
iSC060
052296JNM
iSC
SURGE
SUPPRESSOR
SMART JACK

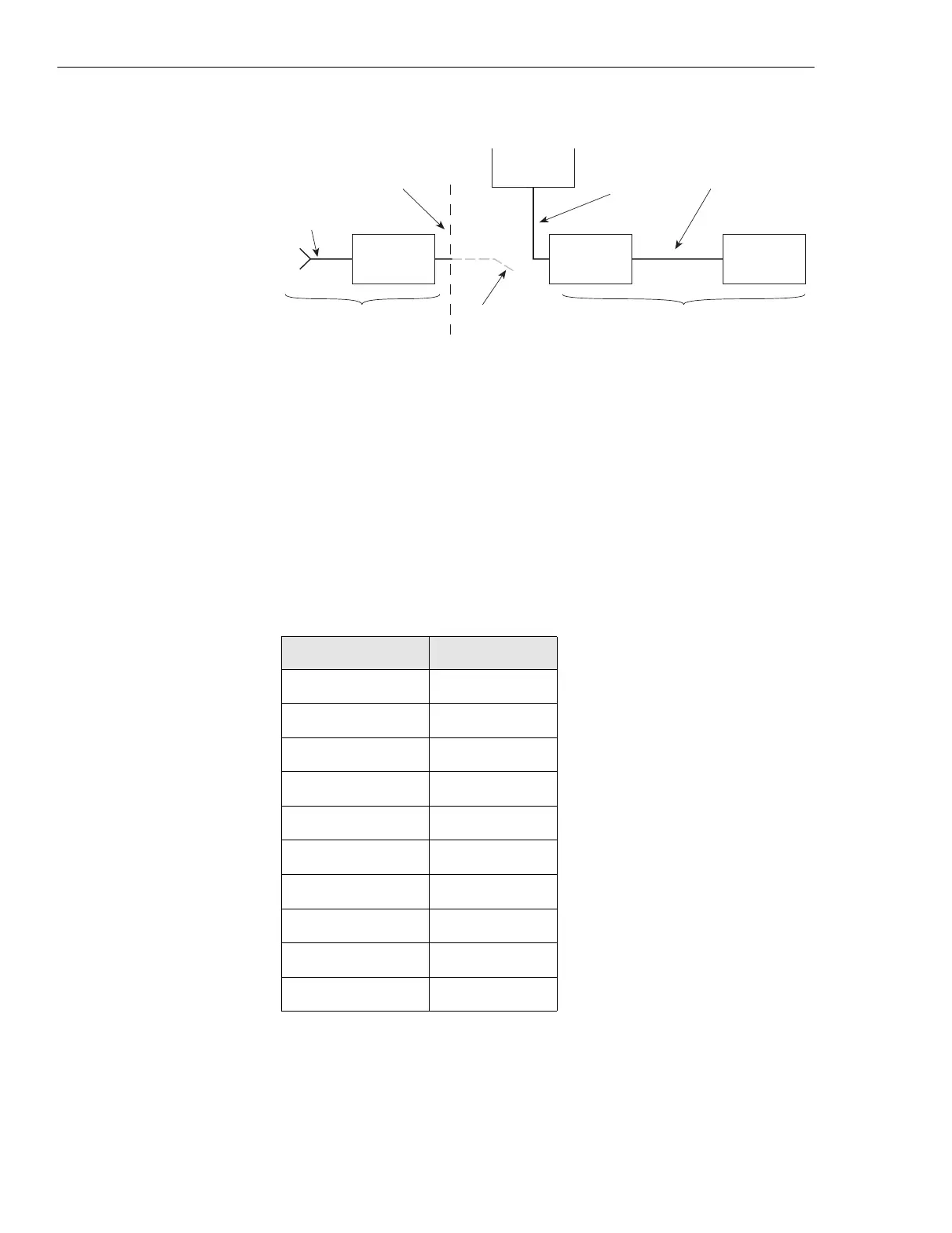

Figure 6-2 T1 test connections
