Gen 3 Site Controller System Manual Chapter 4 Installation
Intercabling Connections
1. Locate the 50-pin Champ cable connected to punch block 1.
2. Connect the free end of this cable to the System Alarm/Control
connector on the rear of the EAS/EAS2.
3. Locate the 50-pin Champ cable connected to punch block 2.
4. Connect the free end of this cable to the User Alarm/Control
connector on the rear of the EAS/EAS2.
Alarm System Cabling
The Environmental Alarm System (EAS/EAS2) handles alarms for the site.
Site alarm wiring enters from the top of the equipment cabinet via the
junction panel. Connector pinouts for the junction panel are the same as
EAS/EAS2 connector pinouts.
RF#3RF#2RF#1CONTROLSERIALPARALLEL
CONTROLLER B
SERIALPARALLEL
CONTROLLER A
RTN
-48V
USER ALARM/CONTROL
SYSTEM ALARM/CONTROL
ENVIRONMENTAL ALARM SYSTEM
Motorola
-48V , 1.0A
iSC407
042202JNM
PUNCH BLOCK 1PUNCH BLOCK 2
EAS
RF3RF2
RF1CONTROL
-48V
MOTOROLA
ENVIRONMENTAL
ALARM SYSTEM
INPUT:
PARALLEL
CONTROLLER B
PARALLEL
CONTROLLER A
USER ALARM/CONTROL
RTN
SYSTEM ALARM/CONTROL
-48V , 0.5A
EAS2
3083892X04 (EAS)
3083892X04 (EAS)
3083892X07 (EAS2)
3083892X07 (EAS2)

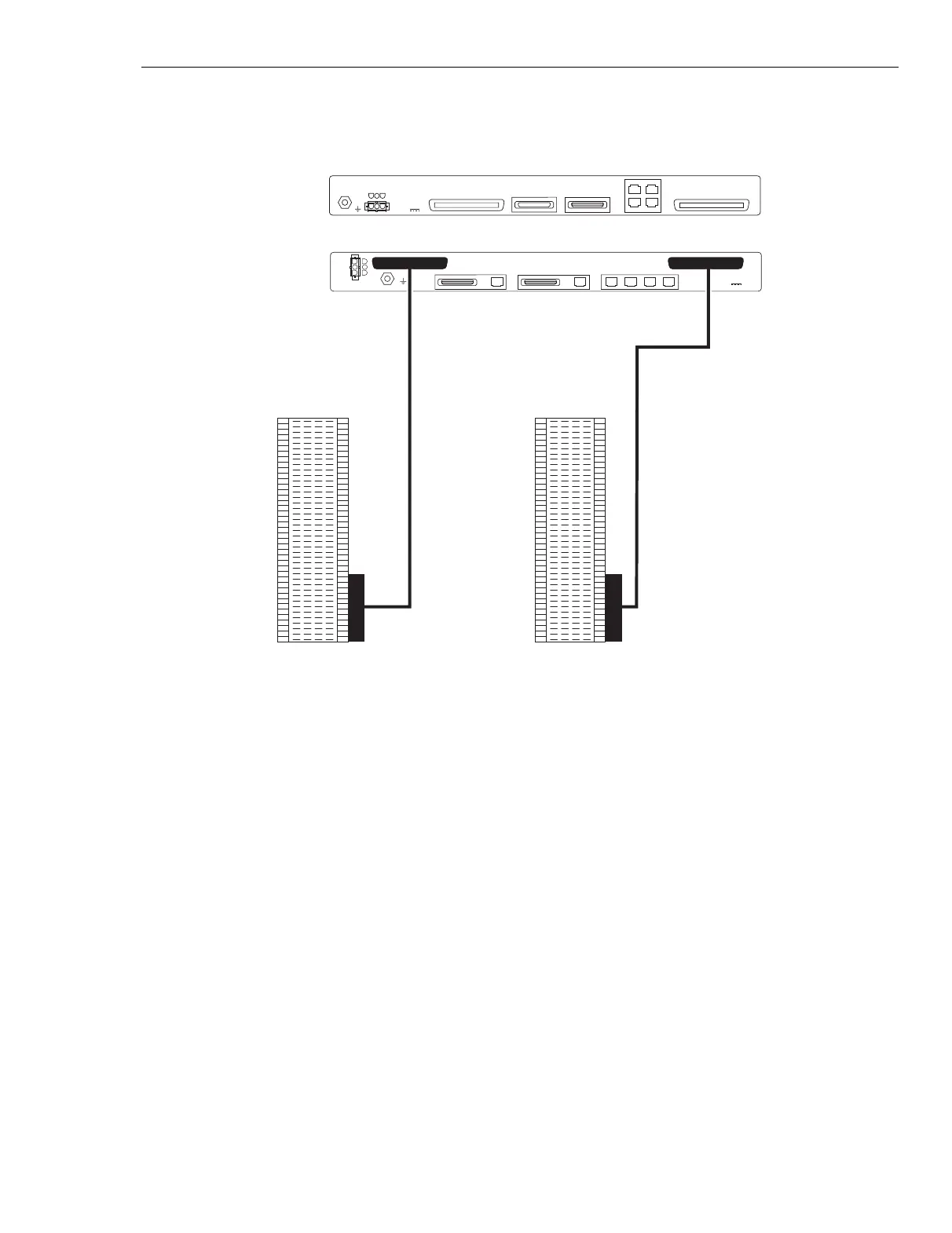

Figure 4-19 EAS/EAS2 to punch block 1 and punch block 2 connections
