AFP-3030 Programming Manual — P/N DOC-01-032:A 26/06/2015 17
Events List Screen Main Menu and Event Counts Screen
2.2 Events List Screen
When an event occurs on the system, the fire panel is considered in an off normal state. The event
can be displayed in the Events List screen, which will display the current event(s), time and date the
event occurred, whether or not the even has been acknowledged, and the how many of each event
type has occurred. The user can scroll through the events and see additional information if it is
available.
There are two types of Events Lists: one for Alarm Conditions, and one for Non-Alarm conditions,
such as fault or supervisory. Events Lists are displayed by priority.
• Alarm Events (Highest priority)
• Supervisory Events
• Fault Events
• Disable Events
• Other Events (Lowest Priority - Other events include events that are not Alarm, Supervisory,
Fault, or Disable)
Each Events List will be displayed with unacknowledged events first in chronological order (earli-
est to latest), followed by acknowledged events in chronological order (earliest to latest).
The Events List type is displayed in a banner above the Top Window along with the number of the
event listed in the top window and total number of that specific event type. Only one type of event
will automatically be displayed on the fire panel at one time. If more than one event type is present
on the system, the highest priority events list will be automatically displayed. Other lists can be dis
-
played using the event buttons located to the right of the display.
The Total Events Counter is located just above the current date and time at the bottom of the dis-
play. It will display the total number of each event type that has occurred on the panel up to 999
events. If there are more than 999 of any event type, it will not increment further.
Alarm Events List
The Alarm Events List will be displayed when one or more alarms occur on the fire panel.

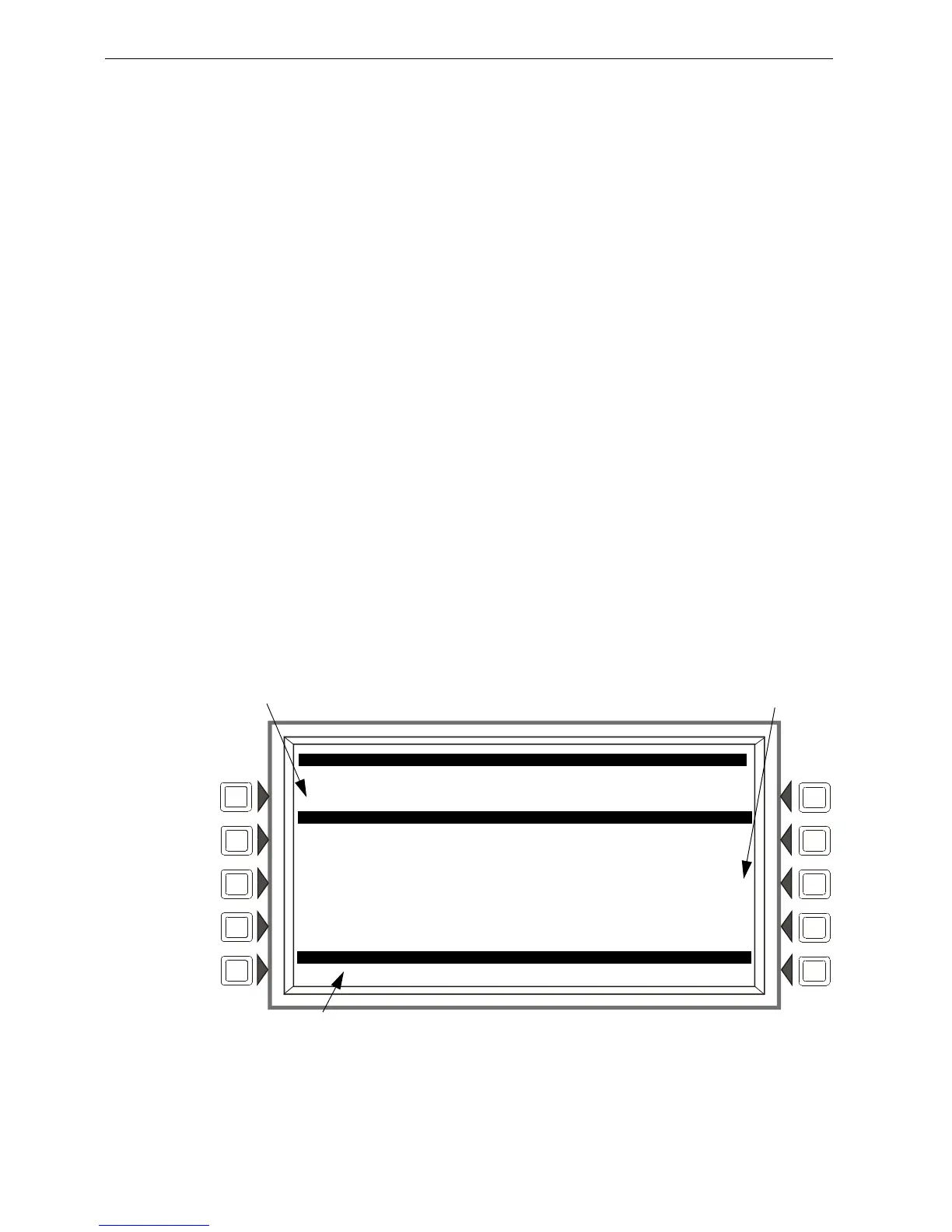

Figure 2.13 Alarm Events List
FIRST ALARM
Z001: Zone Z001 SMOKE(PHOTO)
Detector L01D001
ALARM 1 OF 5
ACKNOWLEDGE FIRE ALARM
Z001: Zone Z001 SMOKE(PHOTO)
Detector L01D001
10:35:17A TUE 02 DEC 2014
ALM:5 SUP:0 FLT:0 DIS:0 OTHER:0
11:58:43A TUE 02, DEC, 2014
Centre Window: All Alarm events listed, unacknowledged first,
followed by acknowledged, in chronological order.
Top Window: First alarm event
Total Events Count: Total number of Alarm, Supervisory, Fault, Disable and Other Conditions
To Next Page
