22 AFP-3030 Programming Manual — P/N DOC-01-032:A 26/06/2015
PrealarmProgram Panel Program
3.2.3 Network Mapping
The Network Mapping softkey is only available if the Network Display Mode option is enabled.
Pressing the softkey will display the following screen.
There are 15 of these screens covering nodes 1 through 240. Each screen will have 16 nodes on it.
The up and down arrow keys are used to select which node to edit. When a field is selected, the
NEXT SELECTION/PREVIOUS SELECTION keys will toggle between OFFLINE/ONLINE,
MAPPED/UNMAPPED.
• OFFLINE - The node is not communicating on the network.
• ONLINE - The node is communicating on the network.
• MAPPED - Events are annunciated by the AFP-3030. When a node is mapped to the AFP-
3030, it is automatically mapped for mass notification events as well. Mass Notification
mapping can be disabled separately from event mapping via VeriFire Tools.
• UNMAPPED (blank) - Events are ignored by the AFP-3030.
NEXT navigates to the next screen in the sequence. The last screen will not have a NEXT key.
BACK will go to the preceding screen in the sequence or to the Node Programming menu if the
current screen is the first one in the 15-screen sequence. ACCEPT implements any changes that
have been made up to this point and returns the user to the Node Programming menu. AUTO
PROGRAM will consult the internal map of which nodes are on the network and automatically set
all 240 Nodes according to the map, regardless of which screen is being shown. The results will not
be saved to flash until the ACCEPT key is pressed.

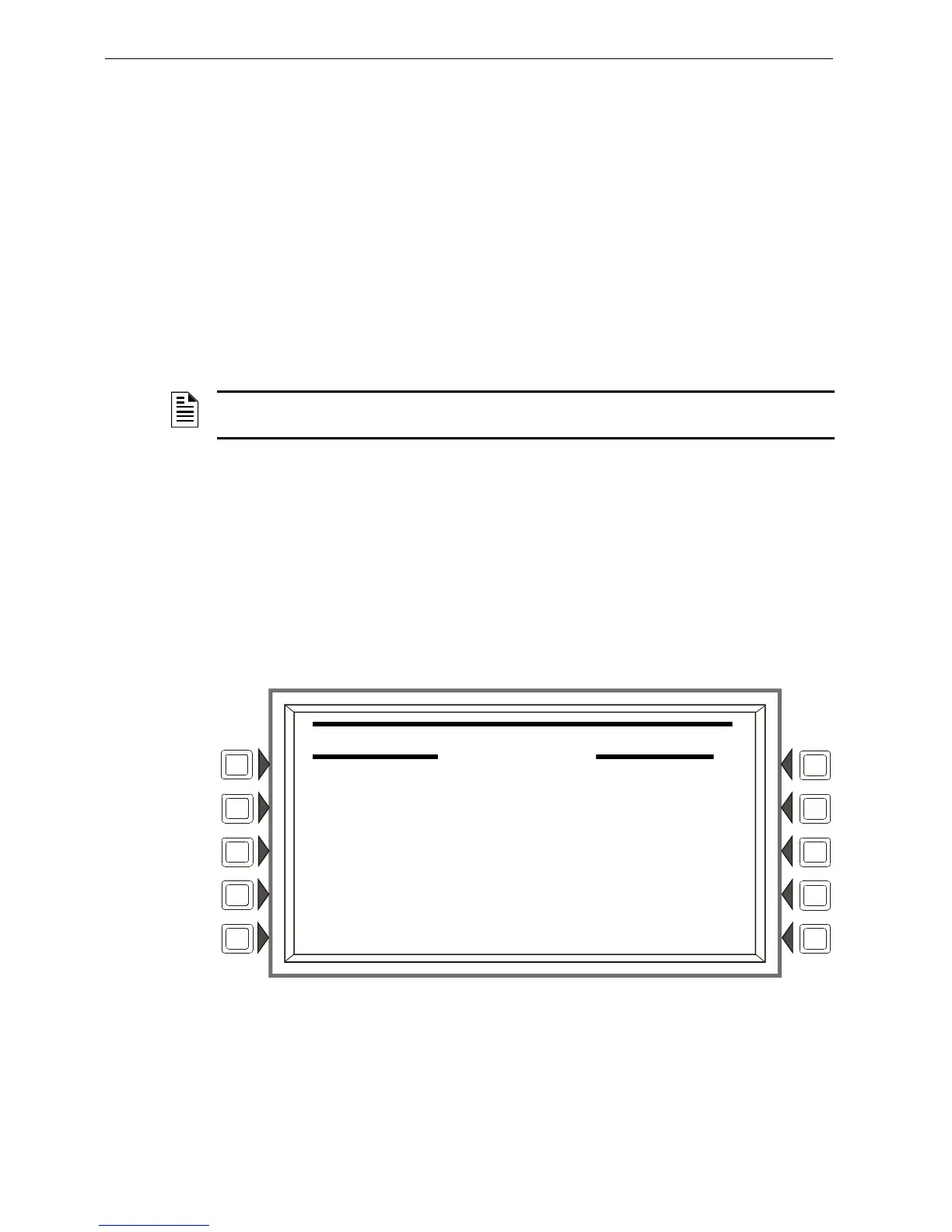

Figure 3.5 Program Menu: Network Mapping
NOTE: The AFP-3030 can be programmed to monitor events on one (1) additional fire panel or
gateway and up to four (4) DVCs.
NETWORK MAPPING
SCREEN 01 OF 15
001:OFFLINE / 002:OFFLINE /
003:ONLINE /MAPPED 004:OFFLINE /
005:OFFLINE / 006:OFFLINE /
007:OFFLINE / 008:OFFLINE /
009:ONLINE /MAPPED 010:OFFLINE /
011:OFFLINE / 012:OFFLINE /
013:OFFLINE / 014:OFFLINE /
015:OFFLINE / 016:OFFLINE /
AUTO PROGRAM ACCEPT
NEXT BACK
