PrealarmProgram Point Program
Soft Keys
ZONE LABEL: Press to type in a 20-character maximum zone description that will appear in the
zone’s display messages.
NON-RESETTABLE CONTROL: Select YES to designate the zone as non-resettable (not affected
by System Reset), or NO to designate the zone as resettable (zone will turn off when System Reset
occurs.). Default: NO
SILENCEABLE ZONE: This option will designate the general zone as silenceable. When a
general zone is programmed as silenceable, a signal silence local to the panel or over the network
will deactivate the zone and any devices mapped to it, unless those devices are programmed with
another active zone that is not silenceable. Default: NO
PRECEDENCE PARTICIPATION: Must be set to YES if the zone is programmed as a control
zone to an ACM or SCS device. Default: NO
ACCEPT: Press to save the message and return to the previous screen.
3.4.4 Logic Zone
Logic Zone Programming
This screen displays when a logic zone is entered at the Point Programming Menu (see Figure 3.31
on page 46).
The logic equation for that zone will display in line 6. Line 4 indicates the current state of the logic
zone (ON or OFF). If there is no equation at the logic zone number entered, nothing will display in
lines 4 and 6, and the user must press the EDIT EQUATION soft key to proceed to the next screen
and enter an equation.
Refer to Appendix D, “CBE: Zones and Equations” for information on how to create a logic
equation, and how logic equations operate.

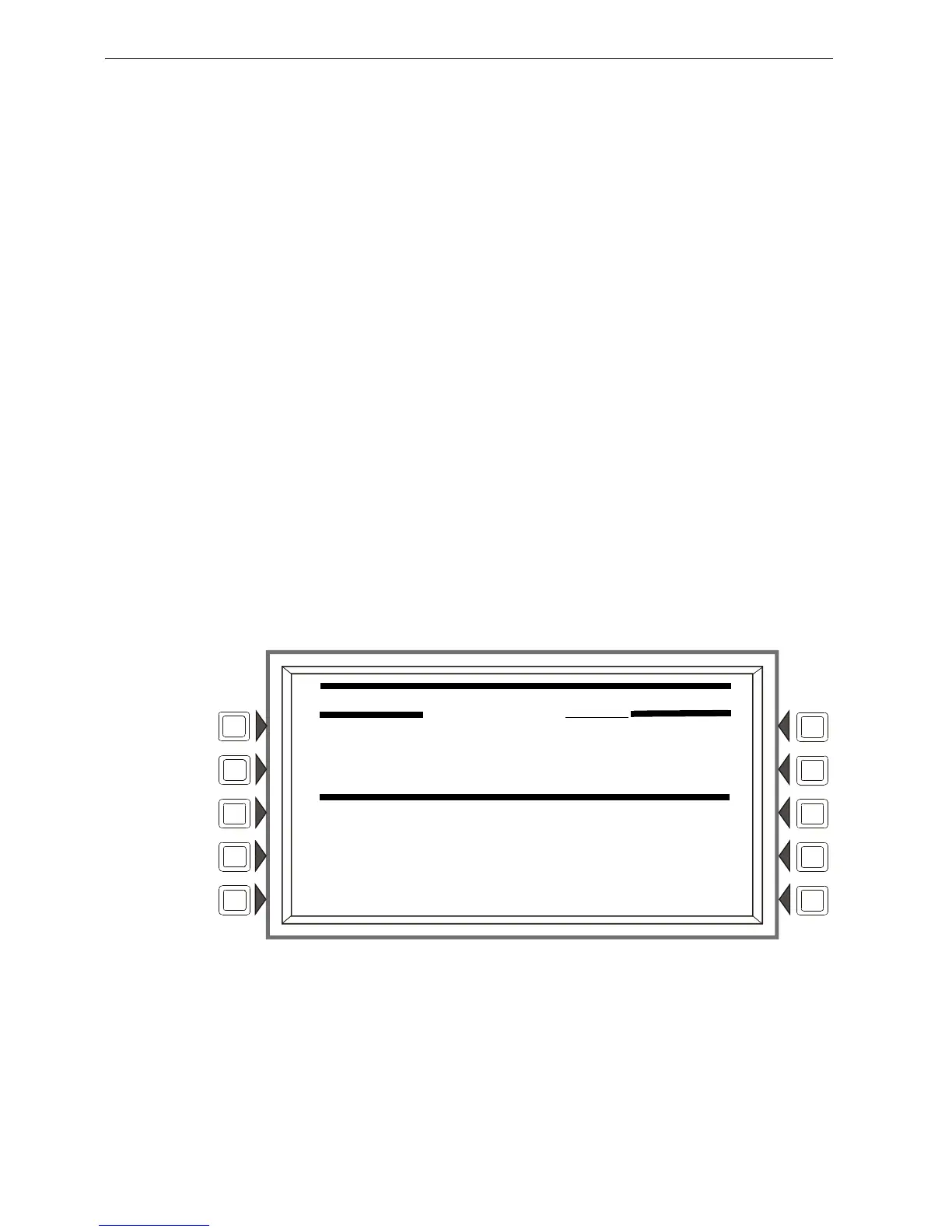

Figure 3.48 Logic Zone Programming Menu Screen
Soft Keys
EDIT EQUATION: Press to proceed to the edit screen to add or edit a logic equation.
NEXT/PREVIOUS EQUATION: Press to view the next or previous logic equation.
