INTELLIGENT PDU USER MANUAL

102

Sensor

Description

Sensor Count

Sensor Port Hub (EF001)

Passive hub allowing for three

additional sensors to be

connected.

N/A

Leak Detection Sensor

Extension (EG001)

Extends the Rope type leak

detector by an additional 6m. A

total of four extensions can be

added to the leak detection

sensor for a total length of

30m.

N/A

SmartZone G5 Dry

Contact Sensor (ACC01)

Input to the G5 iPDU and

designed to monitor a change

in contact state.

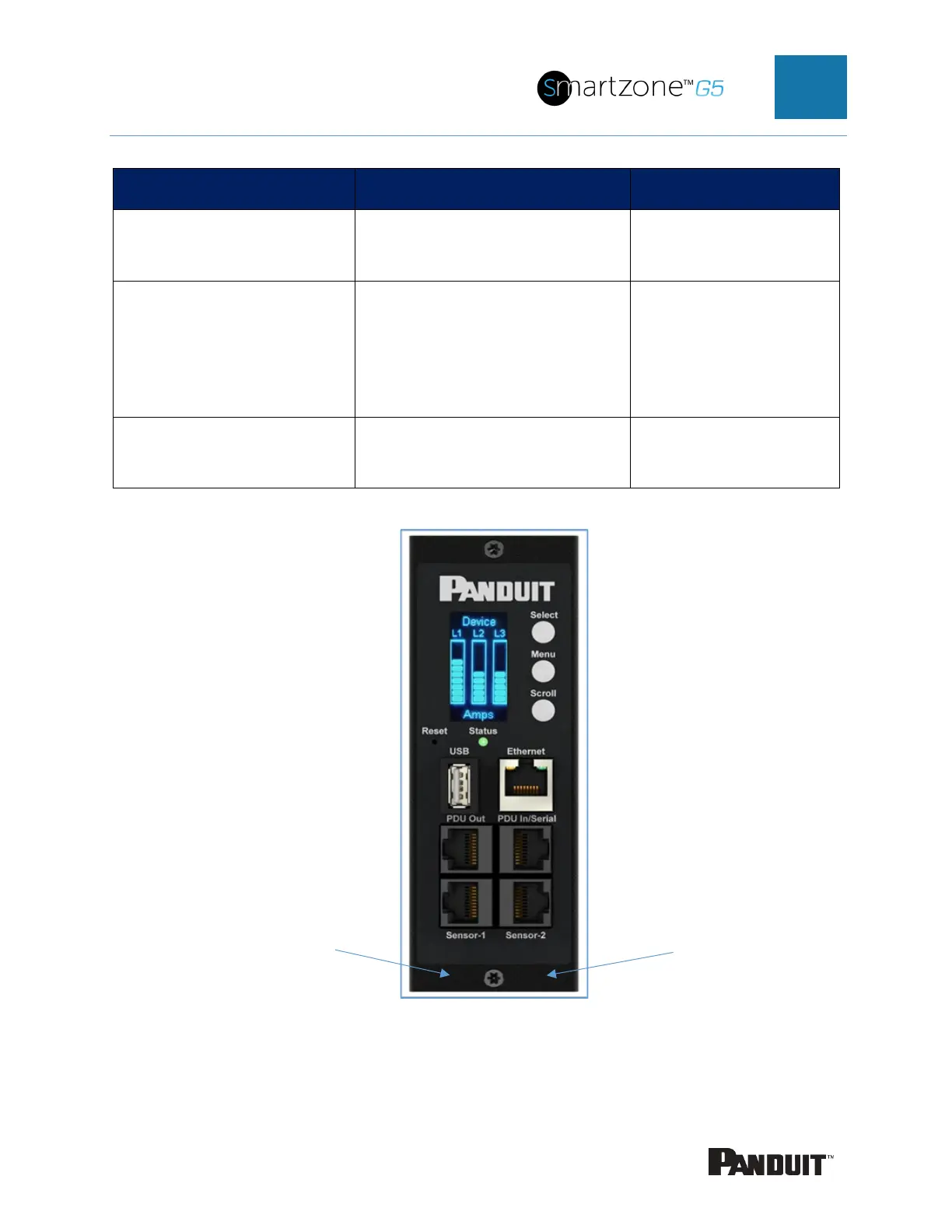

Figure 82: Sensor Ports for Vertical PDU
