INTELLIGENT PDU USER MANUAL
23
system resides. To setup the system information, follow these steps.

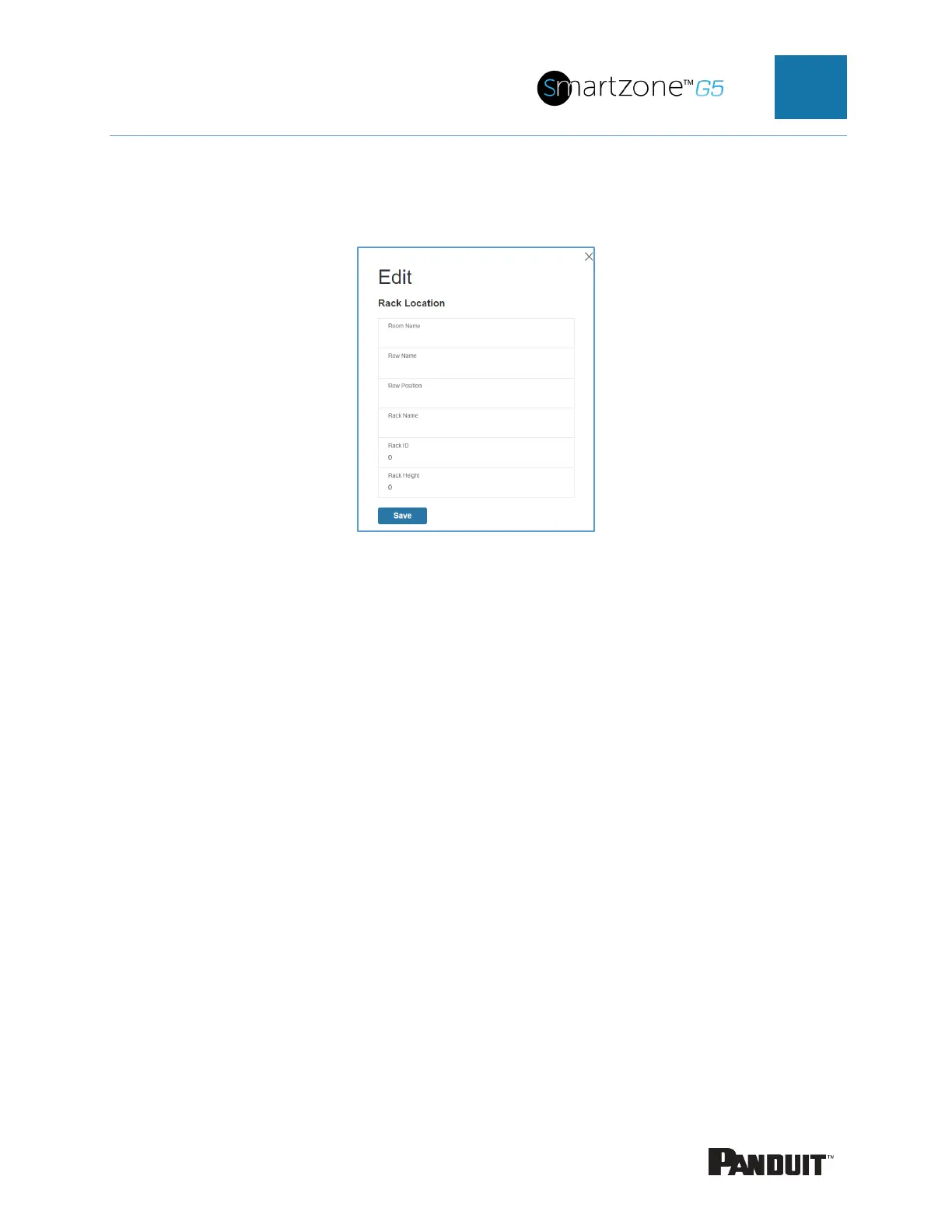

Figure 16: Rack Location Configuration
2. Enter the room location of the rack or cabinet that contains the PDU system into
Room Name.
3. Enter the name of row where the PDU is located in Row Name.
4. Enter the position of the row where the PDU is positioned in Row Position.
5. Enter the ID of the rack/cabinet where the PDU is located into Rack ID.
6. Enter the height of the rack/cabinet where the PDU is located into Rack Height.
7. Press Save.
Power Panel & Core Location
The Power Panel & Core Location describes the name of each PDU that is part of the
PDU system. It also indicates the location of the PDUs inside the rack or cabinet. To
configure, follow these steps:
1. Select the pencil icon next to Power Panel & Core Location.
