INTELLIGENT PDU USER MANUAL

Phase Submenu

The Phase submenu is to display the status of 3-Phase. On the Power menu, scroll

down to highlight Phase. Press Select to display the screens to set the values for the

submenu. After you select the phase, press Select to display the values for that phase

on the screen. Press Menu to return to the previous menu.

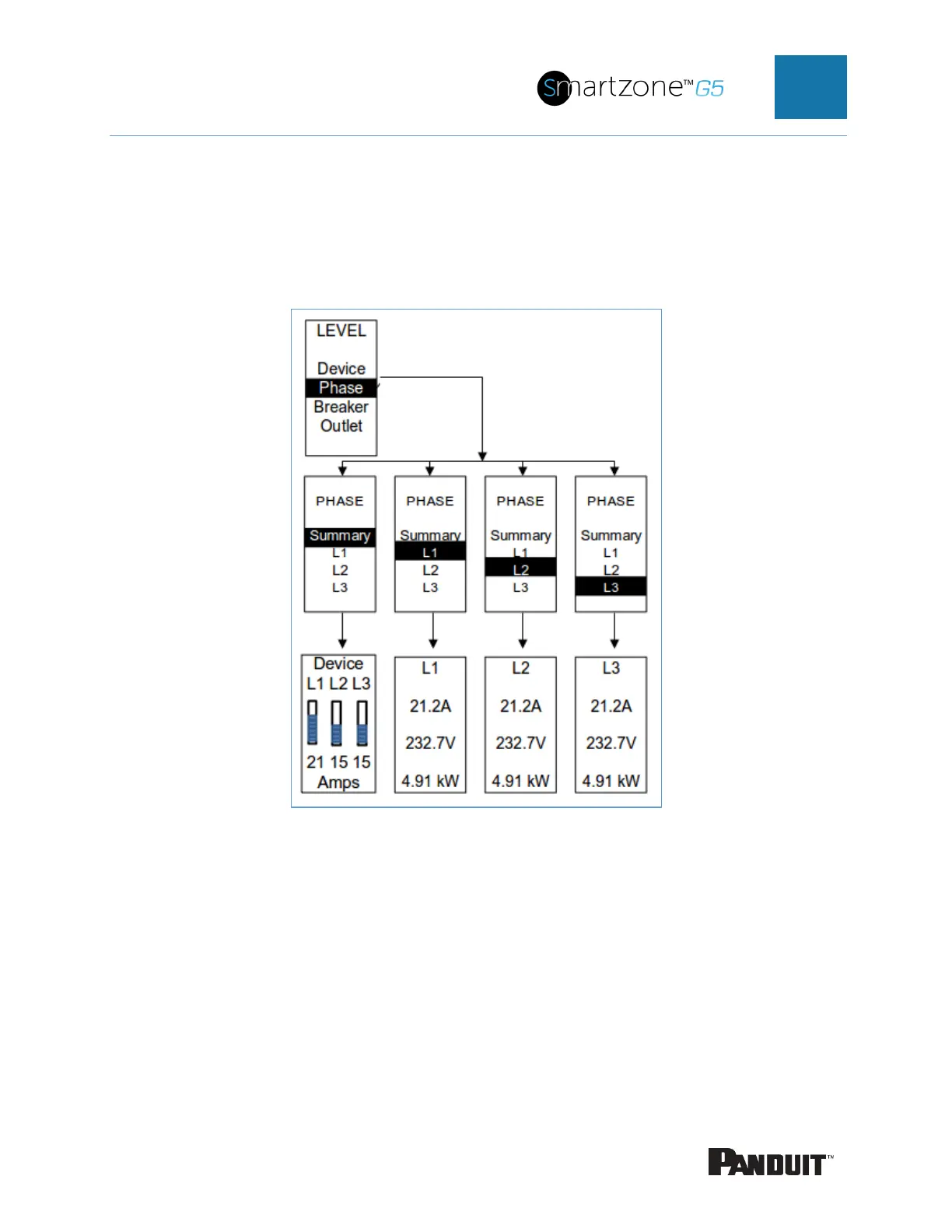

Figure 65: Phase Submenu
