INTELLIGENT PDU USER MANUAL

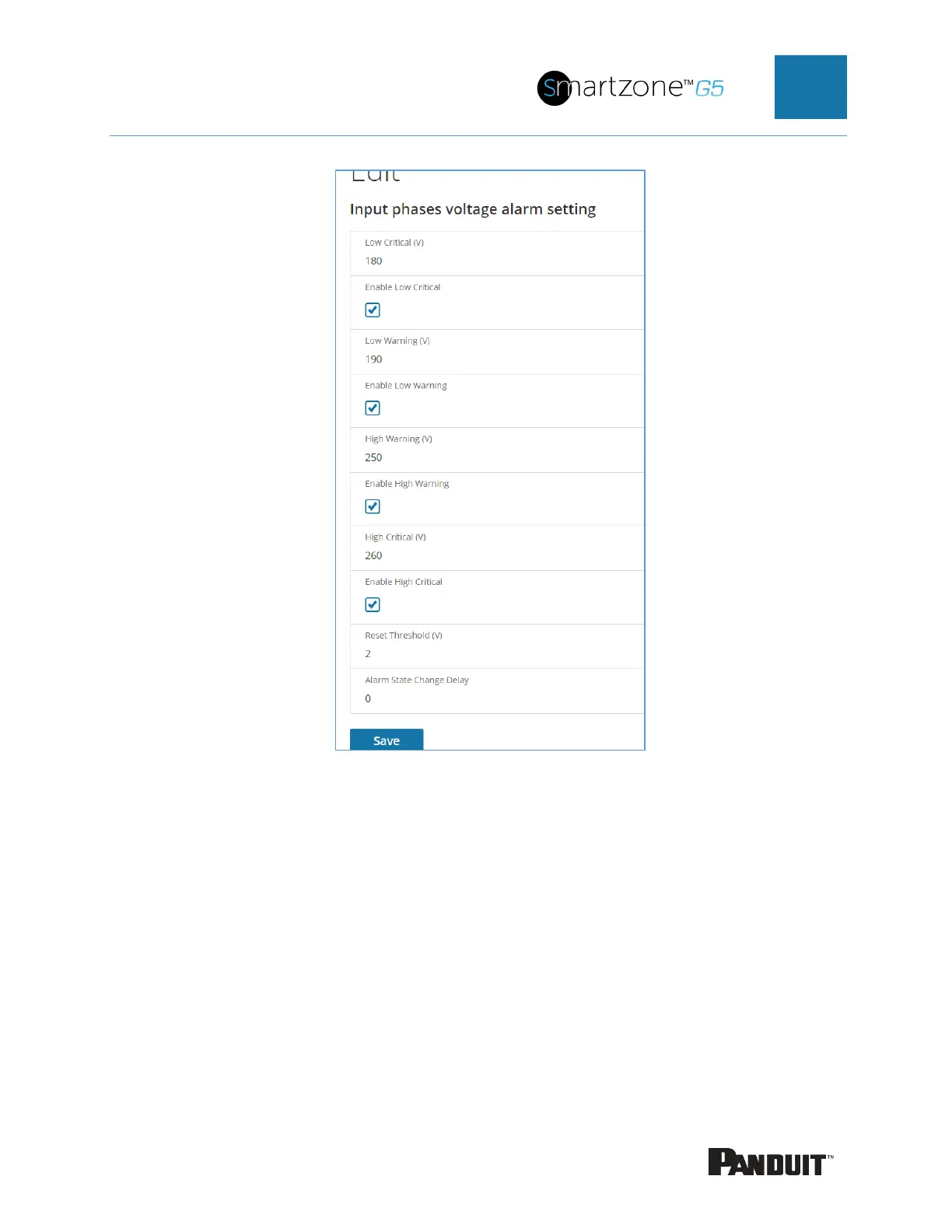

Figure 28: Phase Voltage Alarm

3. Select and enter the appropriate thresholds in voltage and click Save.

• Lower Critical (V)

• Lower Warning (V)

• Upper Warning (V)

• Upper Critical (V)

• Reset Threshold (V)

The Reset threshold is the number of amps the reading needs to fall below

the threshold setting for the condition to be cleared.
