INTELLIGENT PDU USER MANUAL

Breaker Submenu

The Breaker submenu is to display power values for the breakers. Press Select to

display the values of the first breaker. To go to the next breaker, Select next. Press

Menu to return to the previous menu.

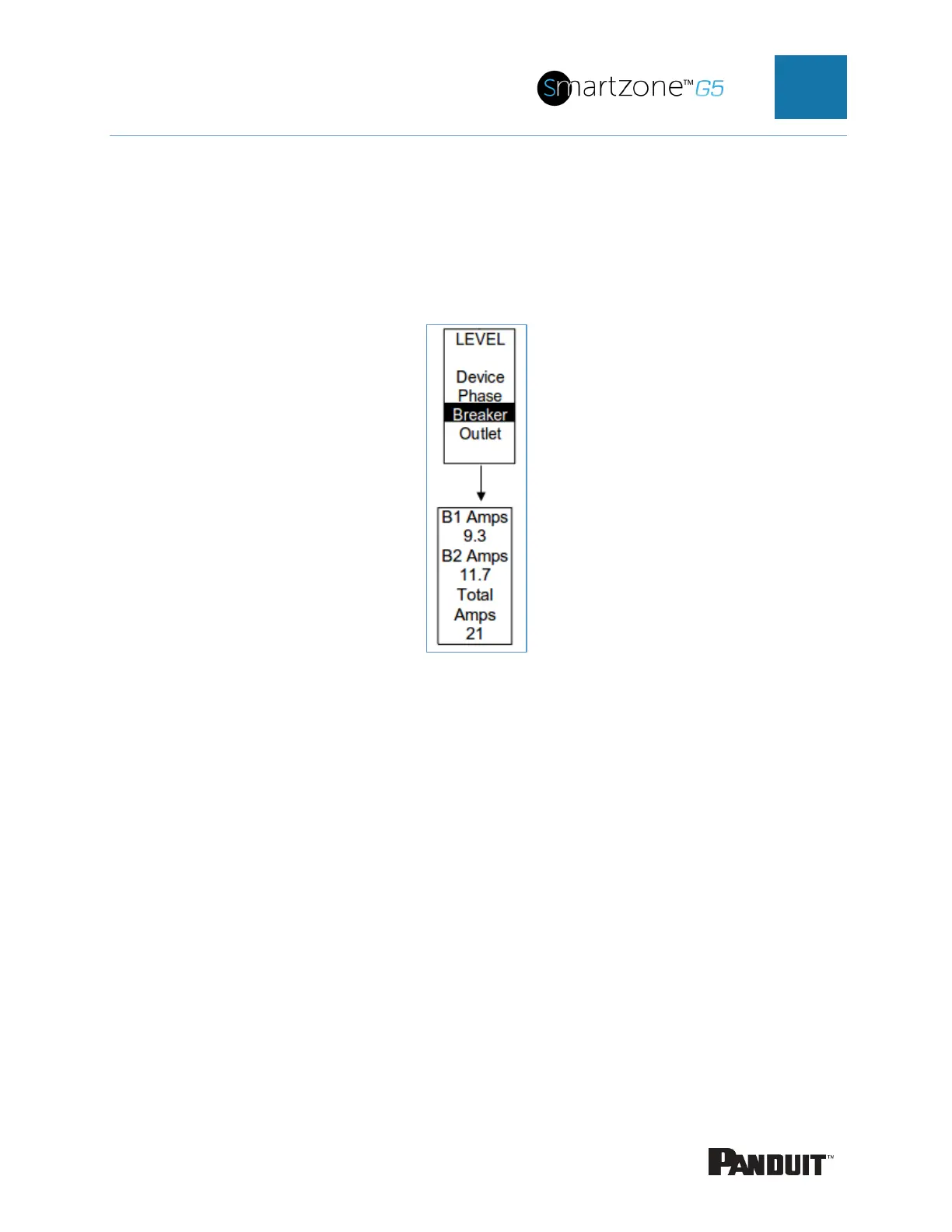

Figure 66: Breaker Submenu

Table of Contents2
