INTELLIGENT PDU USER MANUAL

Phase Current Alarm Threshold

The PANDUIT PDU will send alert notifications when a phase current alarm amp

crosses above or below the settings you specify in the Phase Current Alarm

configuration:

2. Click the Pencil for the Phase Current Alarm to update.

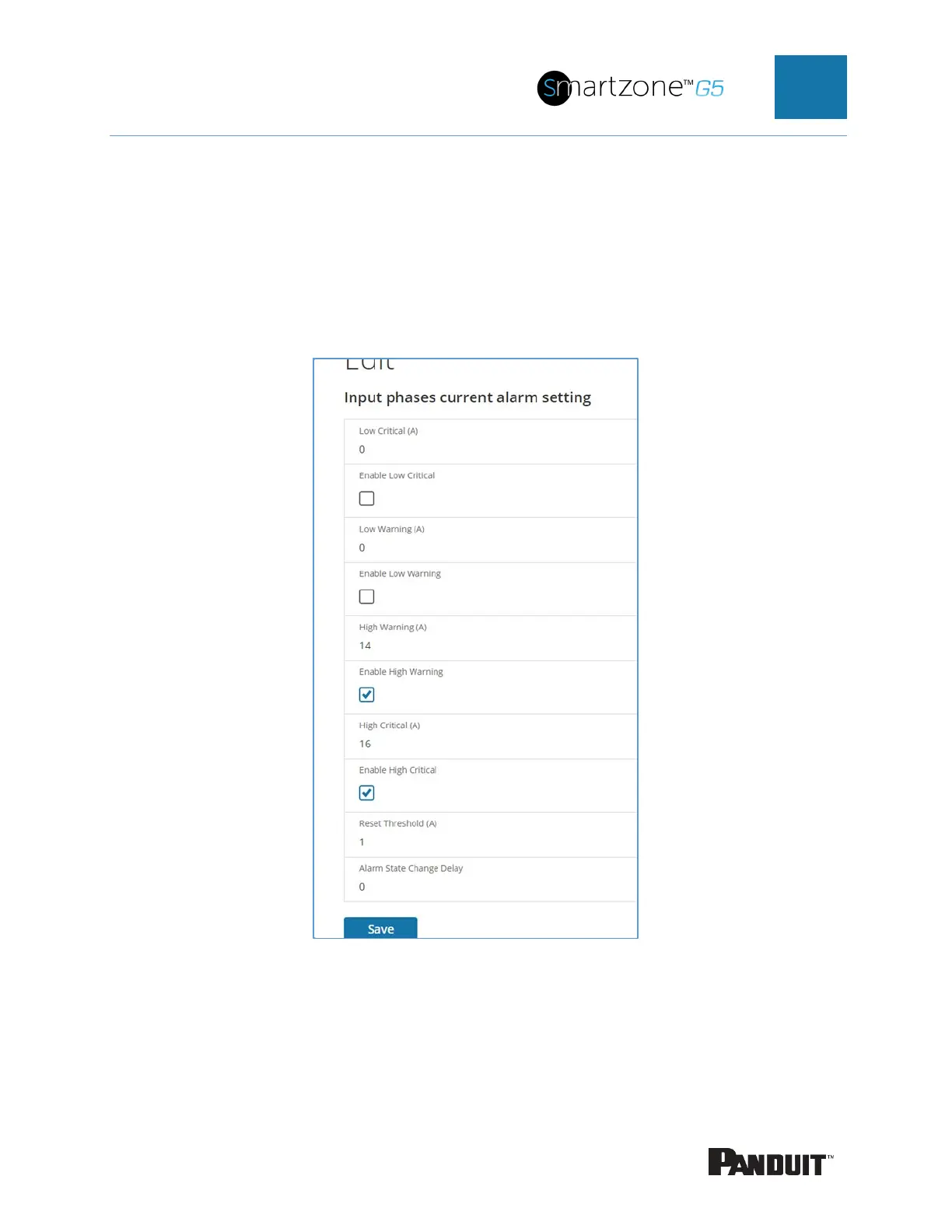

Figure 27: Phase Current Alarm

3. Select and enter the appropriate thresholds in amps and click Save.

• Lower Critical (A)
