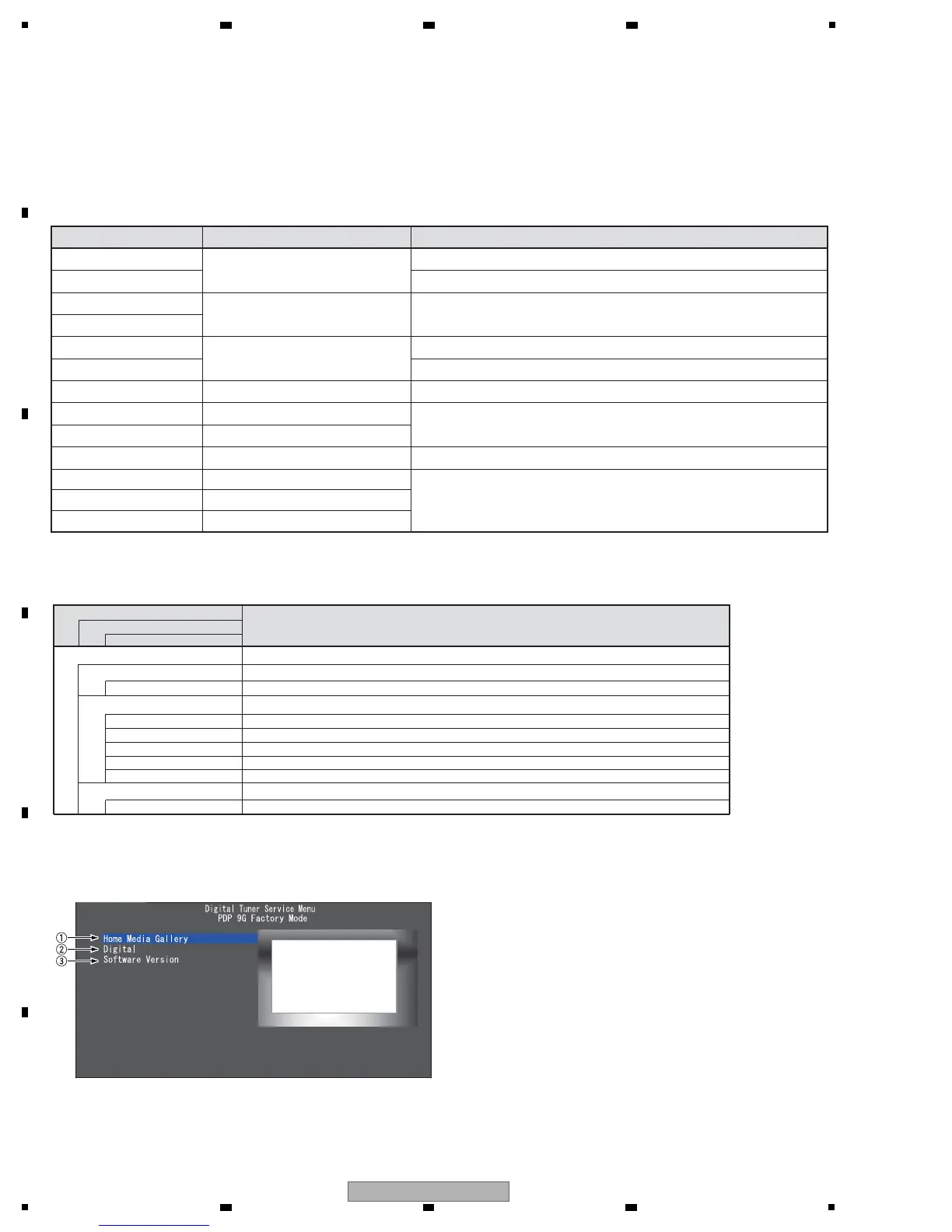

6.3 DIGITAL TUNER SERVICE MENU
[1] REMOTE CONTROL CODE IN DIGITAL TUNER SERVICE MENU
The Digital Tuner Service Menu is provided for collecting data for technological examination when the Digital Tuner has any
problem in the market. This menu is introduced here just for reference.
The following remote control cord is valid in the Digital Tuner Service Menu.
Fig.1 Digital Tuner Service Menu screen
Display a large item list of Digital Tuner Service Menu.
Select each item, and shift to each setting / information display
screen.
1 HomeMediaGallary-related information indication
(Derivative Model is not indicated.)
2 Terrestrial digital-related setting / information indication
3 Digital Tuner-related detailed software version indication
Remote Control Keys Basic Functions Remarks
j (DOWN)
Selecting the menu items and
shifting the pages.
Shifting downward to the next item. Moving to the next lower page.
i (UP)
Shifting upward to the next item. Moving to the next upper page.
k (LEFT)
Selecting the setting value. Modifying the setting of selected items.
l (RIGHT)
ENTER/SET
Shifting the menu layers
Shifting to the next menu screen.
RETURN Shifting to the previous menu screen.
Numeric Keys Numeric input Input the numerical value.
POWER OFF Power OFF
Turning the power off.
STANDBY/ON
FACTORY
Factory ON/OFF Release the Menu, then enter the Service Factory menu.
EXIT
MENU exit
After you exit the menu, the channel that was selected on the menu will be
displayed.
MUTING
Muting
HOME MENU HOME MENU ON/OFF
[2] HIERARCHICAL TABLE OF DIGITAL TUNER SERVICE MENU
[3] DIGITAL TUNER SERVICE MENU SCREEN
Item
Remarks
Large Item
6.3 [4] HMG Service Menu
6.3 [6] Software Version
6.3 [3] Digital Tuner Service Menu
Modulation
Exclusively used for technical analysis: HomeMediaGallery-related information indication
Exclusively used for technical analysis
Exclusively used for technical analysis
Exclusively used for technical analysis
Exclusively used for technical analysis
Exclusively used for technical analysis: Terrestrial digital broadcasting-related information indication
Exclusively used for technical analysis: The software revision information that consists of it in DTB software
Frequency
Program Number
Audio PID
DTV Tuning Status
6.3 [5] Digital
Middle Item
