Structure of Layers in Service Factory Mode
INFORMATION mode
1. VERSION (1) The software versions for each microcomputer
2. VERSION (2) The Flash memory versions for each device
3. MAIN NG The shutdown message ID/event times
(Going Clear mode by [ENTER/SET] key)
3-1. CLEAR
Select Yes by [l] key l pushing and hold [ENTER/SET] key
4. TEMPERATURE The temperature/FAN rotating status/Room Light Sensor
5. HOUR METER The HOUR METER/P-COUNT information
5-1. CLEAR
Select Yes by [l] key l pushing and hold [ENTER/SET] key
6. HDMI SIGNAL INFO 1 The information of HDMI information files
7. HDMI SIGNAL INFO 2 The information of HDMI information files
8. VDEC SIGNAL INFO 1 The signal information of VDEC
9. VDEC SIGNAL INFO 2 The signal information of VDEC
PANEL FACTORY mode Refer to [PANEL FACTORY MODE]
OPTION mode
1. CH PRESET For production line use
2. ANTENNA MODE For production line use
3. AFT For production line use
4. SYNC DET For technical analysis
5. CTI For technical analysis
6. CC For technical analysis
INITIALIZE mode
1. SIDE MASK LEVEL For factory use
1-1. SIDE MASK LEVEL
2. FINAL SETUP Set to Factory default settings (it should perform after
2-1. DATA RESET replacing a MAIN Assy)
3. DTB SERVICE MODE
Information for the Digital Tuner Service Menu is displayed
3-1. MODE SHIFT
4. Wide XGA AUTO For technical analysis
5. AUTO ADJUSTMENT
Quick Reference upon Service Visit 2

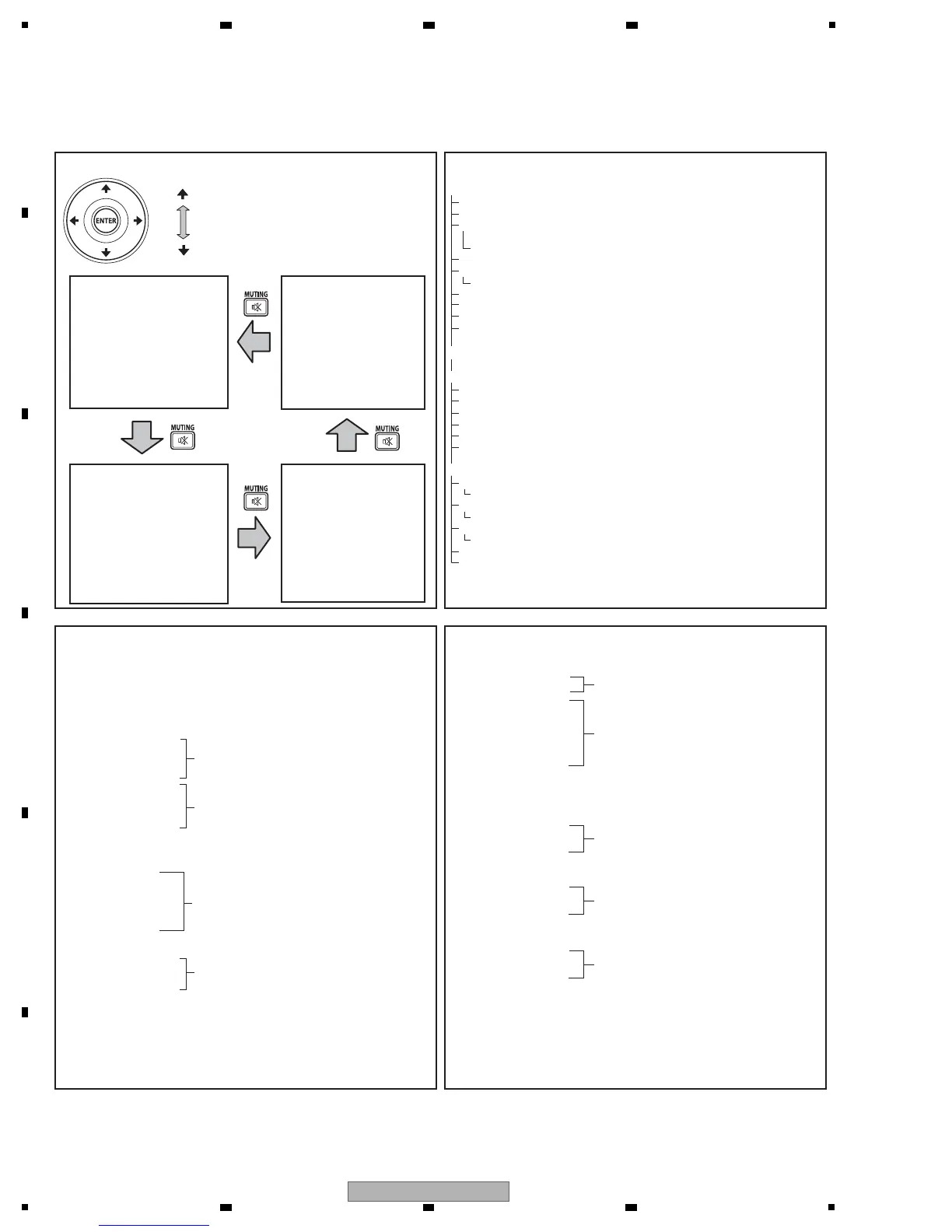

Mode transition and structure of layers in Service Factory mode
INFORMATION mode
1. VERSION (1)
2. VERSION (2)
3. MAIN NG
4. TEMPERATURE
5. HOUR METER
6. HDMI SIGNAL INFO 1
7. HDMI SIGNAL INFO 2
8. VDEC SIGNAL INFO 1
9. VDEC SIGNAL INFO 2
PANEL FACTORY mode
1. PANEL INFORMATION
2. PANEL WORKS
3. POWER DOWN
4. SHUT DOWN
5. PANEL-1 ADJ
6. PANEL-2 ADJ
7. PANEL FUNCTION
8. ETC.
9. RASTER MASK SETUP
10. PATTEN MASK SETUP
11. COMBI MASK SETUP
INITIALIZE mode
1. SIDE MASK LEVEL
2. FINAL SETUP
3. DTB SERVICE MENU
4. Wide XGA AUTO
5. AUTO ADJUSTMENT
OPTION mode
1. CH PRESET
2. ANTENNA MODE
3. AFT
4. SYNC DET
5. CTI
6. CC
• To shift to another mode, press [MUTING].
• To shift to another item in a specific mode,
press [i] or [j].
• To shift to the next nested layer below for an
item with a "(+)" indication, press [ENTER/SET].
To return to the next nested layer above,
also press [ENTER/SET].
Mode transition in Service Factory mode
Up
Down
Structure of Layers in Panel Factory Mode 2
8. ETC (+)
1. BACKUP DATA
2. DIGITAL EEPROM
3. PD INFO.
4. SD INFO.
5. HR-MTR INFO.
6. PM/B1-B5
7. P COUNT INFO.
8. MAX TEMP.
9. MIRROR
10. CLS
9. RASTER MASK SETUP (+)
1. MASK OFF
2. RST MASK 01
• • • • •
10. PATTERN MASK SETUP (+)
1. MASK OFF
2. PTN MASK 01
• • • • •
11. COMBI MASK SETUP (+)
1. MASK OFF
2. CMB MASK 01
• • • • •
Structure of Layers in Panel Factory Mode 1
1. PANEL INFORMATION Version indication of the panel
2. PANEL WORKS Indications of the accumulated power-on time and
power-on count of the panel
3. POWER DOWN Indication of the Power-down history
4. SHUT DOWN Indication of the Shutdown history
5. PANEL-1 ADJ (+)
1. VOL SUS
2. VOL OFFSET
• • • • •
10. RESET1ST_KSB
• • • • •
25. SUS FREQ
6. PANEL-2 ADJ (+)
1. R-HIGH
2. G-HIGH
• • • • •
6. B-LOW
7. ABL
7. PANEL FUNCTION (+)
1. R-LEVEL
• • • • •
To "Structure of Layers in Panel Factory Mode 2"
For AM noise prevention (Depending on the mode,
brightness of the screen changes.)
For confirmation of the result of the setting change,
the unit must be turned off then back on again.
Items for factory use
Items for factory use
Settings required after replacement of the panel
For transferring backup data (after replacement of
the DIGITAL Assy)
Change the adjustment status of the DIGITAL Assy.
For use while the Raster Mask is displayed.
Use [i] or [j] to select the type of mask.
Use [l] or [k] to select the sequence.
Switch the Mirror display mode.
Switch the function when checking the color sensor
level.
For use while the Pattern Mask is displayed.
Use [i] or [j] to select the type of mask.
Use [l] or [k] to select the sequence.
For use while the Combination Mask is displayed.
Use [i] or [j] to select the type of mask.
Use [l] or [k] to select the sequence.
For clearance of data for the corresponding items.
The clearing method is the same: Select "CLEAR",
then hold [ENTER/SET] pressed for at least 5
seconds.
For the WB adjustment of the panel and ABL
adjustment.
A setting table is available for each signal frequency.
To Next Page
