Pioneer PDP-5020FD User Manual

19
PDP-5020FD
5
6 7 8
5
6 7 8
A
B
C
D
E
F

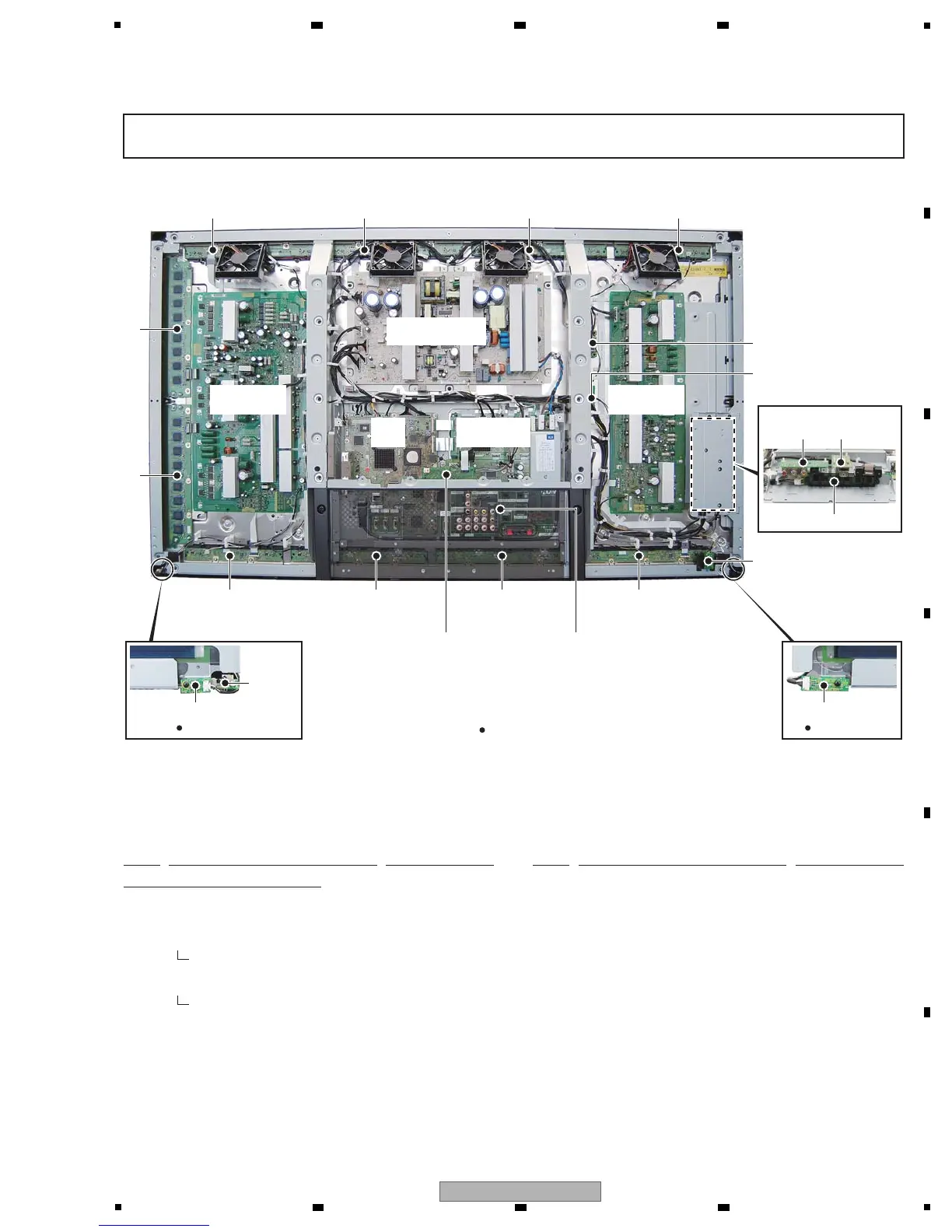

3.3 PCB LOCATIONS
50F Y DRIVE
Assy
MAIN
Assy
50F DIGITAL
Assy
50F X DRIVE
Assy
50F SCAN A Assy
50F ADDRESS L
Assy
50F ADDRESS S
Assy
RLS Assy
IR Assy
50F ADDRESS L
Assy
50F ADDRESS L
Assy
PC Assy IO_AUDIO Assy
50F ADDRESS L
Assy
50F ADDRESS L
Assy
50F ADDRESS L
Assy
50F ADDRESS S
Assy
SIDE IO
Assy
SIDE KEY Assy
LED Assy
SIDE HDMI
Assy
FAN CONNECT Assy
POWER SW Assy
SENSOR Assy
50F SCAN B Assy
POWER SUPPLY
Unit
Mark No. Description Part No.
LIST OF ASSEMBLIES
NSP 50F ADDRESS L ASSY AWW1348
NSP 50F ADDRESS S ASSY AWW1349
NSP 50F SCAN A ASSY AWW1350
IC2801 - IC2808 AN16184A
NSP 50F SCAN B ASSY AWW1351
IC2901 - IC2908 AN16184A
SENSOR ASSY AWW1340
50F DIGITAL Assy AWW1347
50F X DRIVE ASSY AWV2546
50F Y DRIVE ASSY AWV2547
Mark No. Description Part No.
MAIN ASSY AWW1371
SIDE HDMI ASSY AWW1372
IO_AUDIO ASSY AWW1352
SIDE IO ASSY AWW1356
PC ASSY AWW1359
SIDE KEY ASSY AWW1361
LED ASSY AWW1362
IR ASSY AWW1363
FAN CONNECT ASSY AWW1364
RLS ASSY AWW1365
POWER SW ASSY AWW1366
> POWER SUPPLY UNIT AXY1200
PDP SERVICE ASSY 509F AWU1339
Note: The wiring shown in the photo is different from the actual wiring, because the product in the photo is a prototype.
Upon servicing, be sure to restore the original wiring of the unit after repair work.
NOTES:
-
Parts marked by “NSP” are generally unavailable because they are not in our Master Spare Parts List.
-
The > mark found on some component parts indicates the importance of the safety factor of the part.
Therefore, when replacing, be sure to use parts of identical designation.
Rear view
Front view Front view
