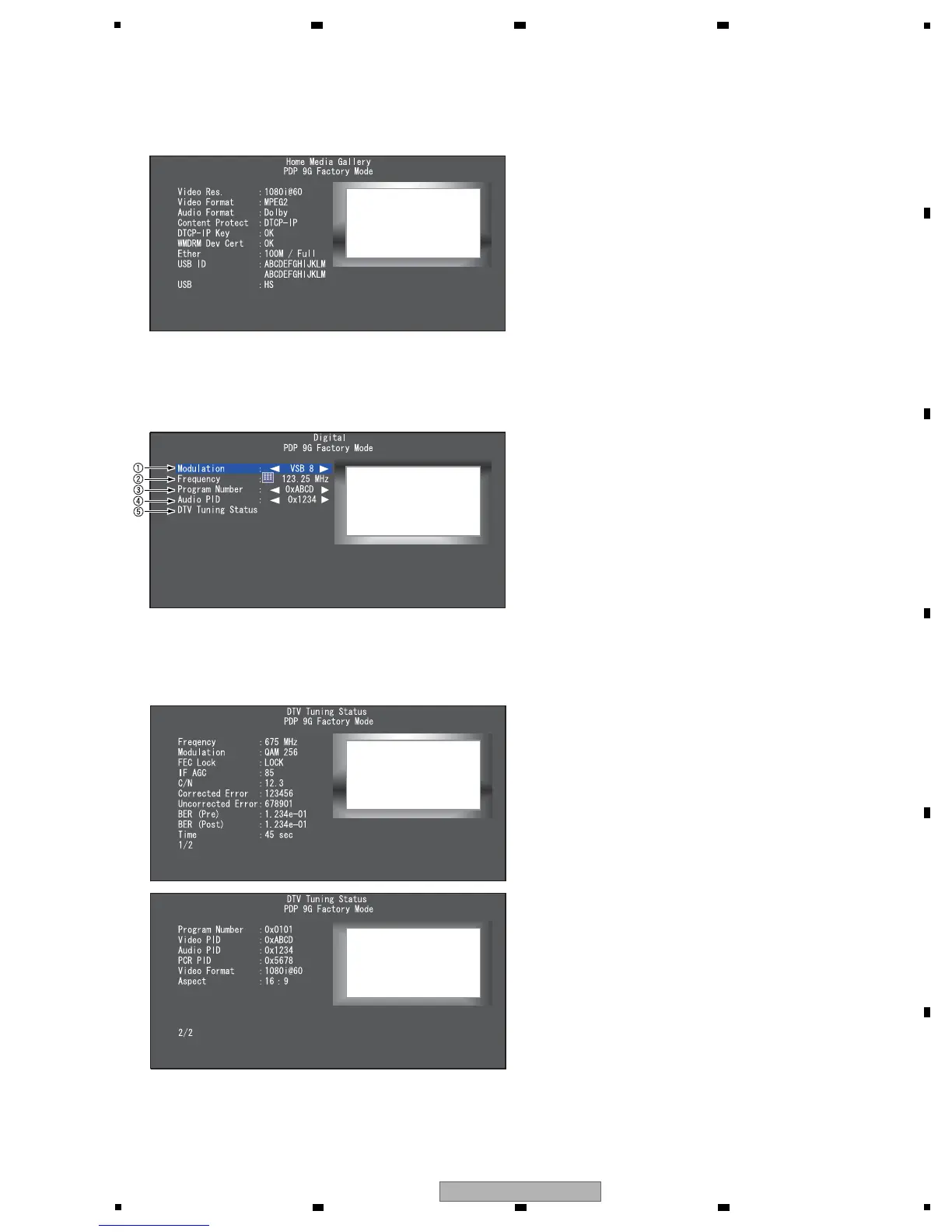

Fig.3 Digital screen (North America)
Fig.4 DTV Tunig Status screen
The data displayed on the DTV Tuning Status screen are as shown below:
The instructions for servicing using this screen is shown in "Details on how to confirm the factory DTV tuning status" of section 5.2 [6].
Therefore, this screen is introduced here just for reference.
The details are not described here, as this is provided for technical examination.
Fig.2 Home Media Gallery screen
Display the Digital broadcasting-related setting / information
indication.
1 The modulation method for receiving a digital broadcast can be
selected.
(QAM256/QAM64/VSB8)
2 The frequency can be set (up to 2 digits after the decimal point).
3 Program Number in the same stream: Service ID can be selected.
4 Audio PID in the same stream: Audio PID can be selected.
5 The tuning status of a digital broadcast is displayed on a separate
screen.
[4] HOME MEDIA GALLERY SCREEN
[5] DIGITAL SCREEN
[6] SOFTWARE VERSION SCREEN
Display the HomeMediaGallary-related information.
