Pioneer PDP-5020FD User Manual

201
PDP-5020FD
5
6 7 8
5
6 7 8
A
B
C
D
E
F

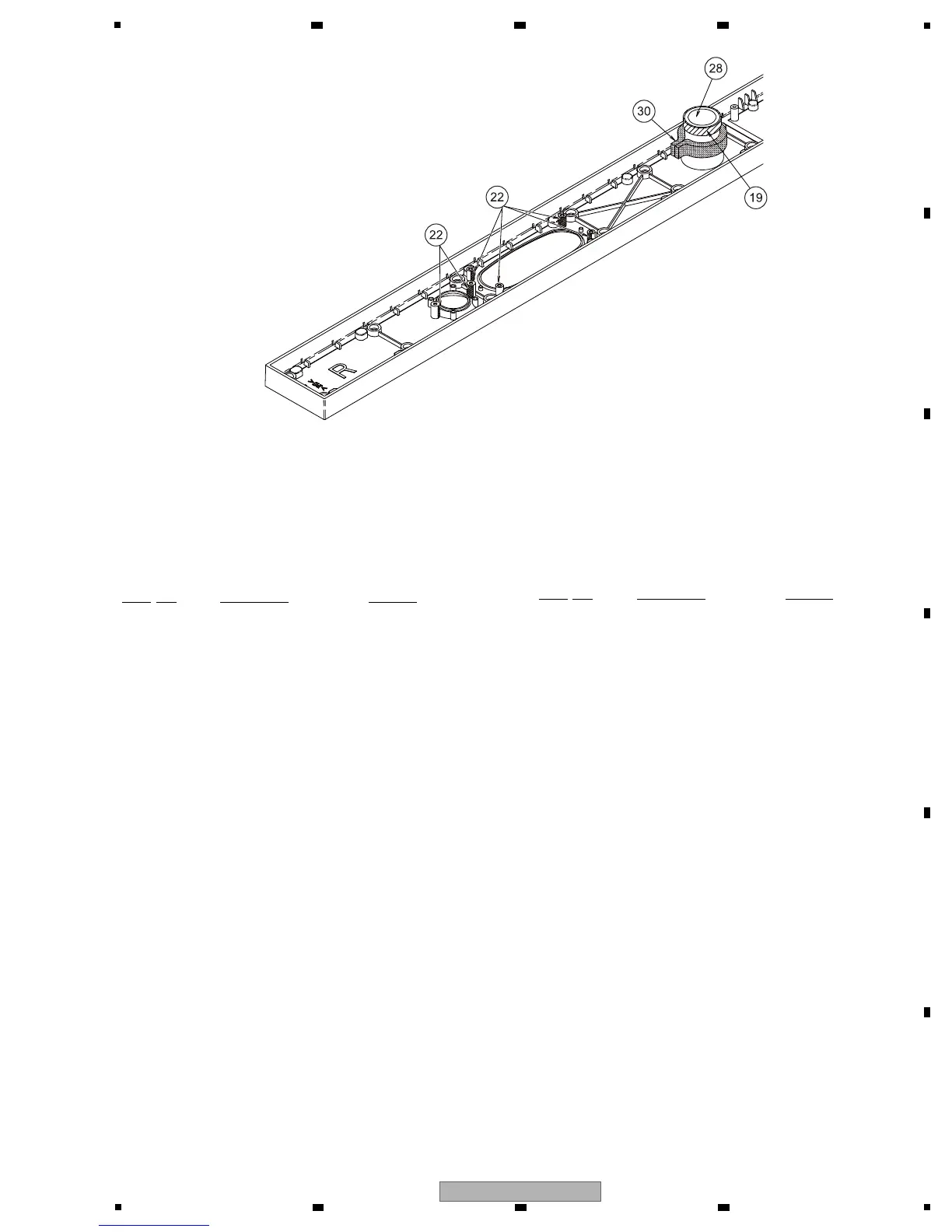

CS ASSY PARTS LIST
BAFFLE
Mark No. Description Part No.
1 Speaker H132DC65-53D
2 Speaker FK26AP32-58H
NSP 3 Baffle SNK3032
NSP 4 Cabinet Assy C SXG1155
NSP 5 Cabinet Assy L SXG1156
NSP 6 Cabinet Assy R SXG1157
7 Grille SMG1894
81..Network Ass’y SWN1792
2..Capacitor 1.5 SCE1034
2..Choke Coil 0.47 STH1269
NSP 9 Gasket SEB1299
NSP 10 Gasket SEB1300
NSP 11 Blinder SEB1304
NSP 12 Gasket SEC2074
13 Gasket SEC2083
NSP 14 Gasket SEC2197
NSP 15 Gasket SEC2201
NSP 16 Gasket SEC2203
NSP 17 Gasket SEC2204
NSP 18 Gasket SEC2205
NSP 19 Gasket SEC2229
NSP 20 Gasket SEC2235
NSP 21 Felt SED1127
NSP 22 Felt SED1130
23 Tape SEH1089
24 Tape SEH1099
25 Tape SEH1115
26 Input Terminal SKX1098
NSP 27 MDF Bar SLX1176
NSP 28 Paper Tube 26 SMR1403
NSP 29 Acoustic Absorbent SMT1328
NSP 30 Acoustic Absorbent SMT1331
NSP 31 Acoustic Absorbent SMT1333
NSP 32 Acoustic Absorbent SMT1335
NSP 33 Acoustic Absorbent SMT1357
NSP 34 Acoustic Absorbent SMT1359
NSP 35 Model Label SAN4025
NSP 36 Caution Label SRR1032
NSP 37 Label Serial SRW1111
38 Screw BPZ30P080FTC
39 Screw BPZ35P080FTC
40 Screw BPZ35P120FTC
41 Screw BPZ35P140FTB
42 Screw BPZ40P350FTC
43 Screw
SBA1291
Ma
rk
No. Description Part No.
