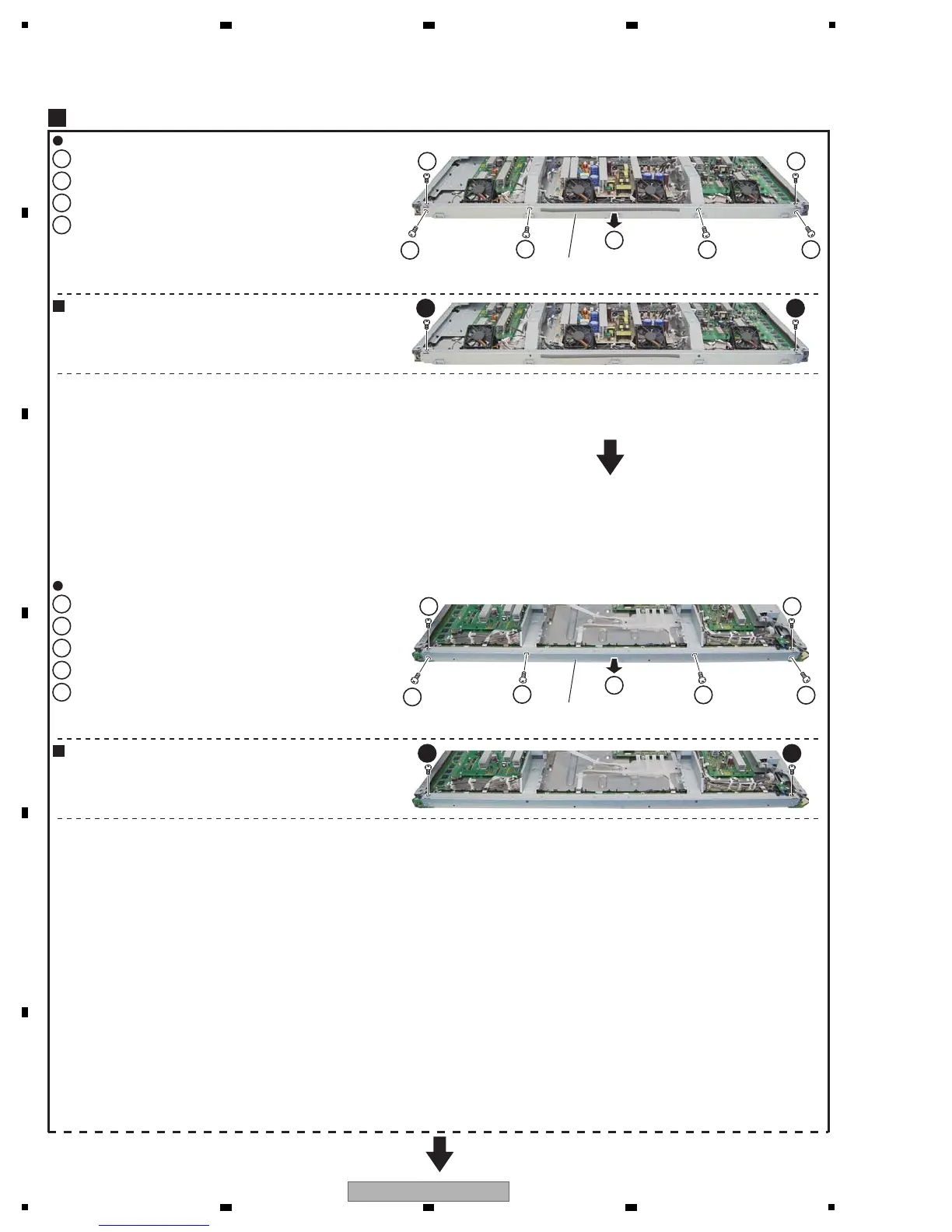

Access to ADDRESS L and S Assys
7
Remove the two screws. (AMZ30P060FTB)
1
Remove the two screws. (ABZ30P080FTC)
2
Remove the two screws. (AMZ30P060FTB)
3
Remove the F. chassis HT Assy 50.
4
F. Chassis HT Assy 50
F. chassis HT Assy 50
1
2
1
2
3 3
4
The other screws are random order.
12
Screw tightening order
Disconnect cables, connectors, as required.
1
Remove the two screws. (AMZ30P060FTB)
2
Remove the two screws. (ABZ30P080FTC)
3
Remove the two screws. (AMZ30P060FTB)
4
Remove the F. chassis HB 50.
5
F. Chassis HB 50
F. chassis HB 50
2
3
2
3
4 4
5
The other screws are random order.
1
2
Screw tightening order
