184
PDP-5020FD
1
2 3 4
A
B
C
D
E
F
1
2 3 4

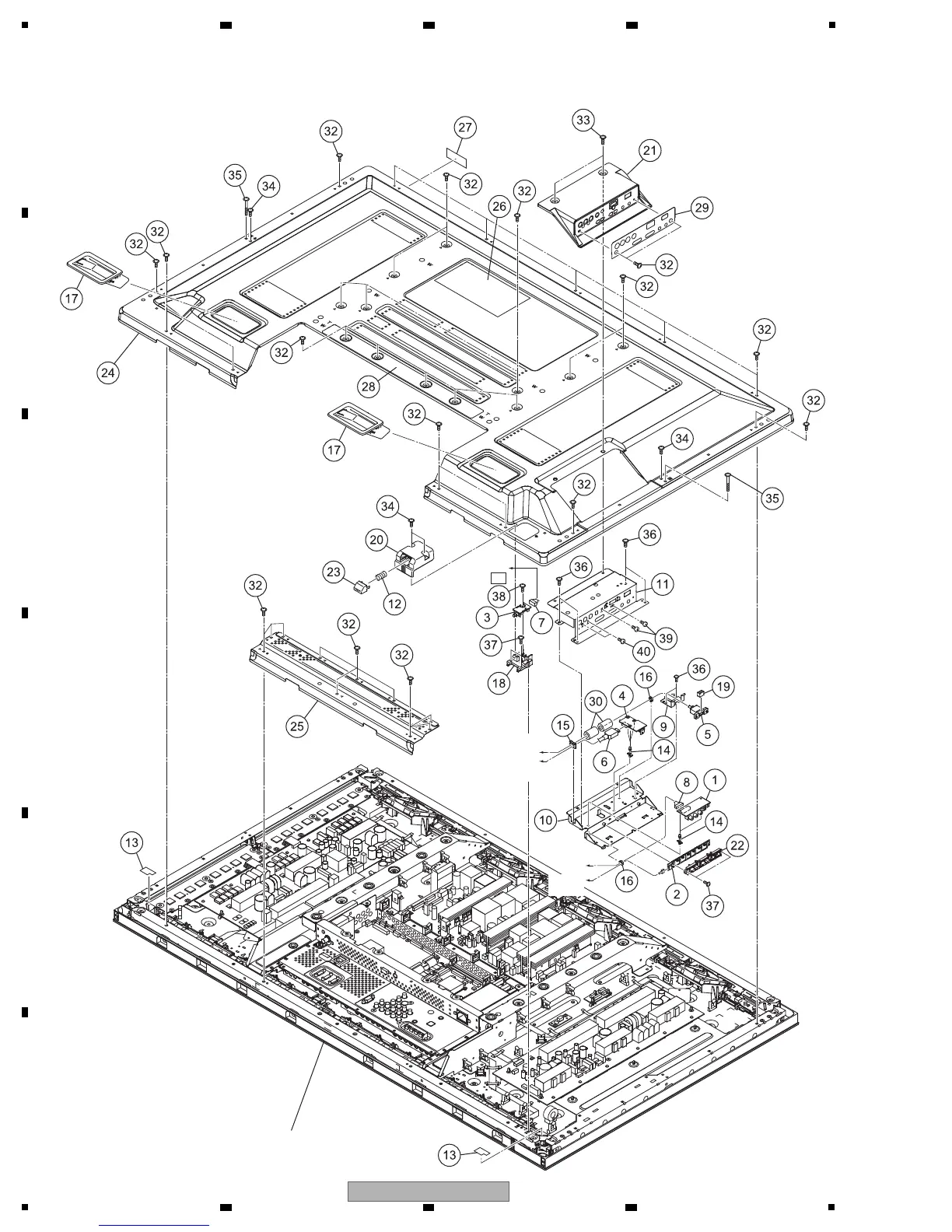

9.2 REAR SECTION
POWER
SUPPLY
P8
IO_AUDIO
CN7505
MAIN CN4107
(USB)
MAIN JA4901
(HDMI)
MAIN
CN4209
Refer to
"9.3 FRONT SECTION".
