5.3
CLEANFIRE FUEL INJECTION

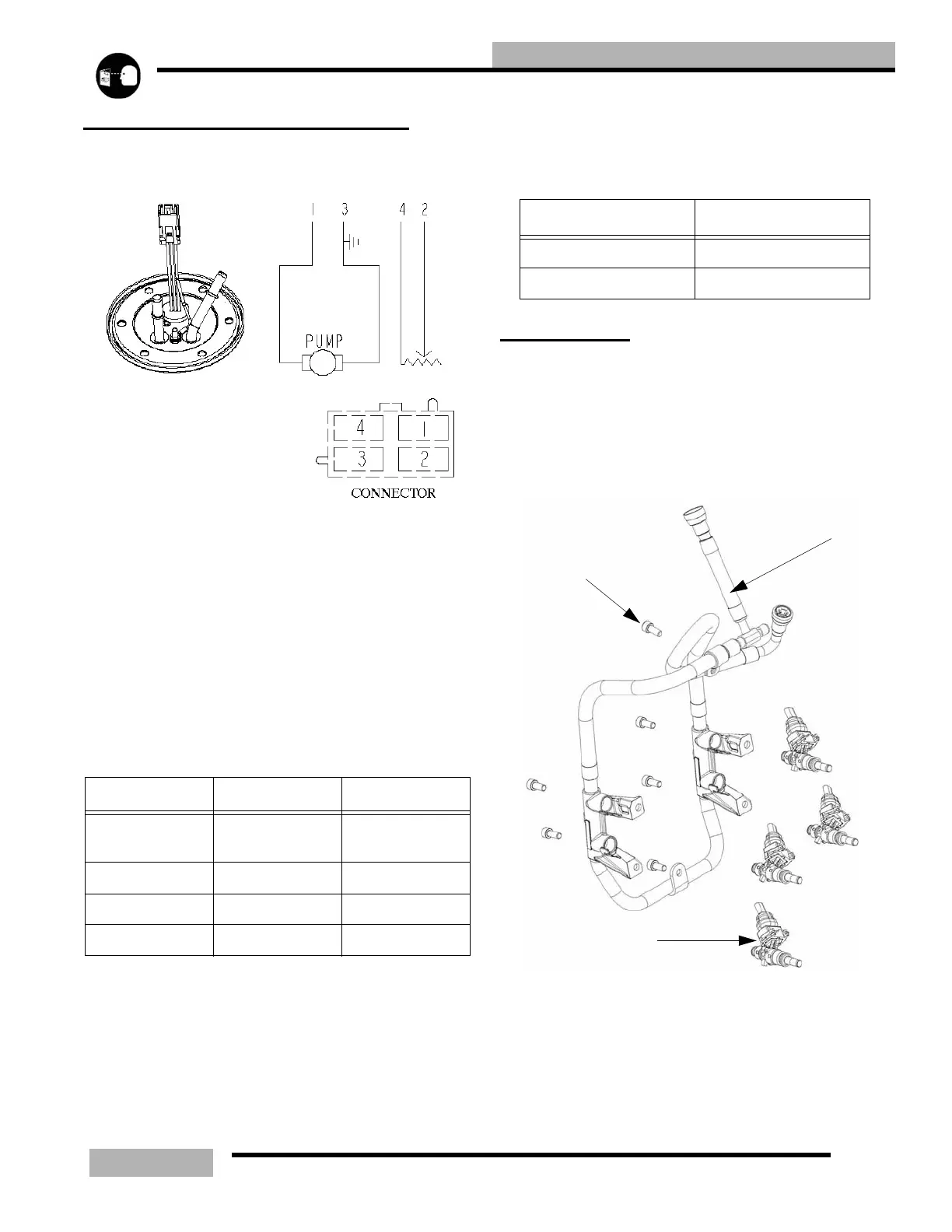

PUMP FLANGE ASSEMBLY
FUEL PUMP
This fuel pump is non-serviceable and can not be replaced. If
fuel pump fails you will need to replace the whole fuel tank
assembly.
FUEL PUMP: Located inside tank. It provides system with
fuel at 116psi (8bar) pressure. If the fuel pressure is suspect to
be defective apply 12 VDC to the fuel pump prime (Red (#1)
and the Brown (#3) wires) and check for audible fuel pump
operation as well as fuel rail pressure. The fuel pump should
sound when pumping and the pressure should show 116psi (8
bar) pressure.
FUEL LEVEL
If the fuel gauge is suspect to failure you can check the
continuity from the fuel sender to the gauge. The given
resistance below is from the Violet/White (#2) wire to the
Brown (#4) wire located at the front of the fuel pump.
FUEL RAIL
FUEL RAIL/INJECTOR REMOVAL
1. Remove the engine. See See “700/900 LIBERTY
ENGINE REMOVAL” on page 6.6.
2. Remove the fuel rail fasteners (A).
3. Remove the fuel rail (B).
4. Remove the injectors and o-rings from the fuel rail.
FUEL RAIL/INJECTOR INSTALLATION
IMPORTANT: Make sure that the o-rings are
correctly placed.
1. Insert fuel injector into the fuel rail.
2. Place fuel rail onto engine.
Table 5-1: Fuel Pump Connector
PIN COLOR ITEM
#1 Red
power to the
pump
#2 Violet/White fuel level signal
#3 Brown ground
#4 Brown fuel level ground
Table 5-2: Level Sender Resistance
TANK LEVEL RESISTANCE (Ω)
FULL 2 - 4 Ω
EMPTY 85 - 95 Ω
A
B
C
