Polaris 340 CLASSIC 2006 User Manual

13.22
ELECTRICAL

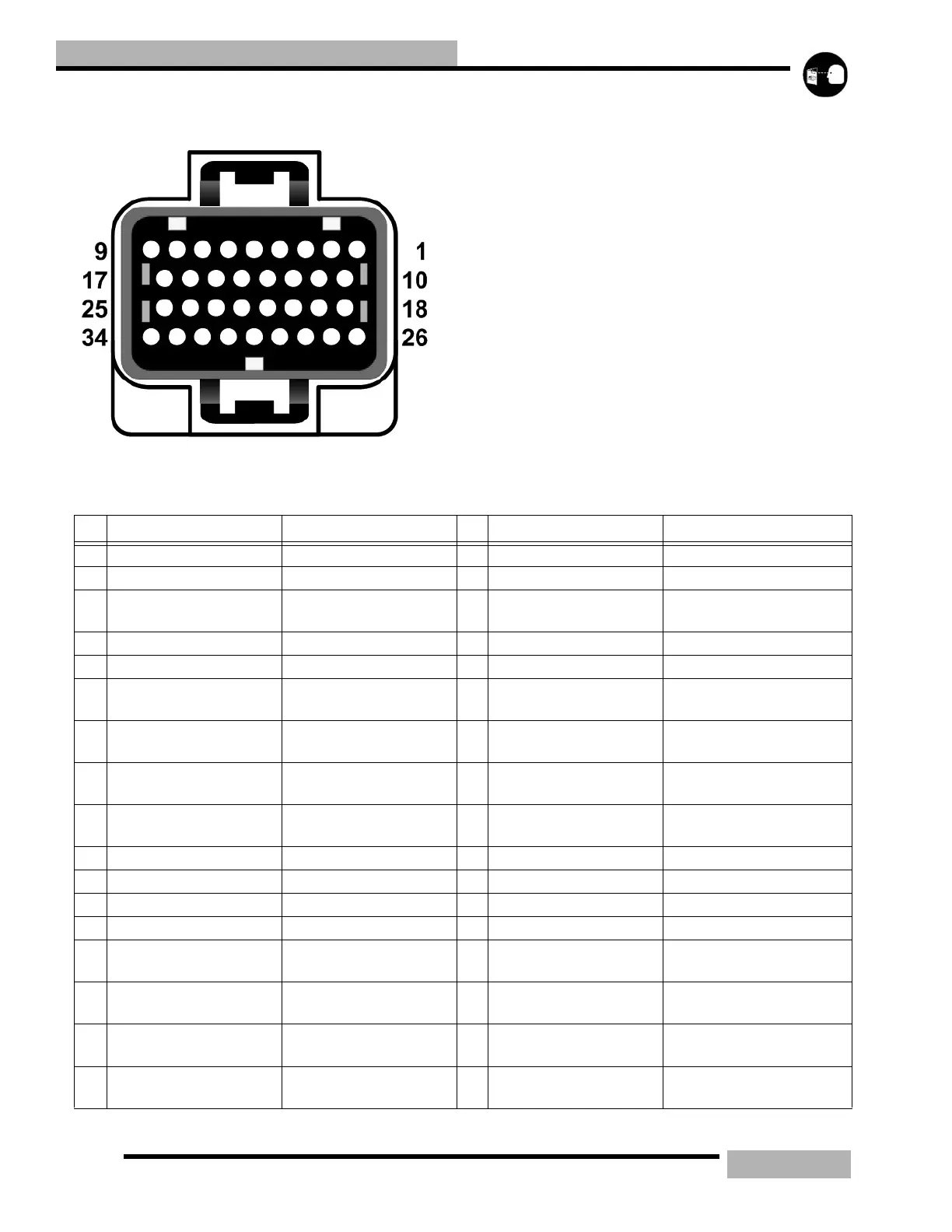

ECU PLUG #1
As viewed unplugged
Table 13-16:
PIN WIRE COLOR COMPONTENT PIN WIRE COLOR COMPONENT
1 Orange Reg Rec (power) 18 Orange Reg Rec (power)
2 - - 19 Red/Black External Battery Voltage
3 - - 20 Black/Blue
Exhaust/Air Temp sensor
(ground)
4 Yellow/Red Tachometer (signal) 21 Black Auxilary Kill Switch
5 Blue/Red Water temp (signal) 22 Black/Red software kill
6 Green
PTO Injector full load
(ground)
23 Blue Air Temp
7 Green/White
PTO Injector part load
(ground)
24 White/Black Exhaust temp sensor
8Yellow
MAG Injector full load
(ground)
25 Green/Blue EV Solenoid (ground)
9 Yellow/White
MAG Injector part load
(ground)
26 Red Voltage Reg (power)
10 Orange Reg Rec (power) 27 - -
11 White/Blue Chassis Relay Coil 28 Brown Ground (ECU)
12 - - 29 Black/White Dianostic LED
13 Gray Reverse Switch 30 Green/Blue Hot lamp
14 Red/Blue
PTO Injector full load
(power)
31 White Reverse lamp
15 Red/Blue
PTO Injector part load
(power)
32 - -
16 Red/Blue
MAG Injector full load
(power)
33 Orange/Green Battery Relay Coil
17 Red/Blue
MAG Injector part load
(power)
34 - -
