Polaris 340 CLASSIC 2006 User Manual

8.11
FINAL DRIVE
DRIVE TRAIN

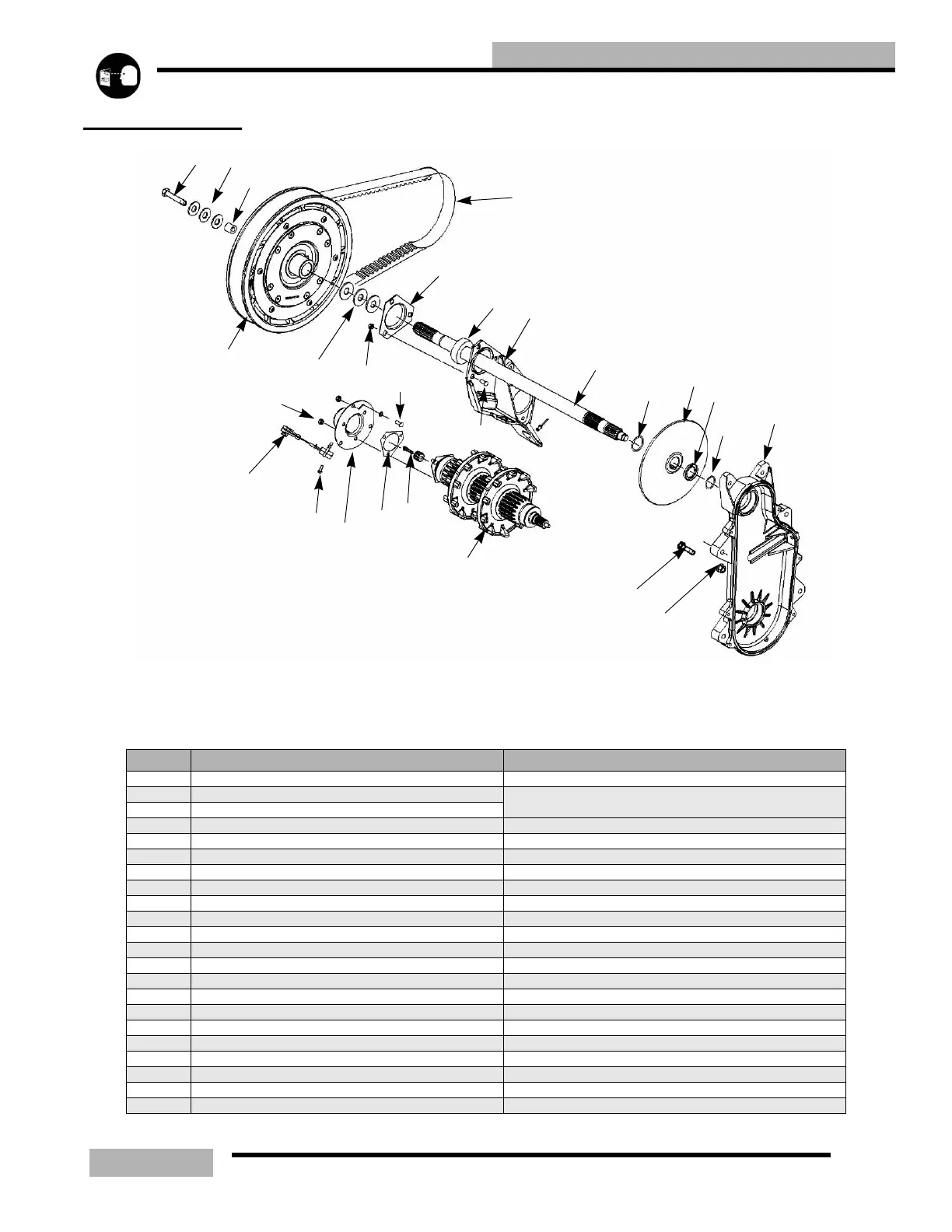

JACKSHAFT EXPLODED VIEW
A
B
D
C
E
F
AA
Q
P
O
N
M
L
K
J
I
H
G
X
W
V
U
T
S
R
Z
Y
Table 8-8: Jackshaft
ITEM DESCRIPTION TORQUE SPECIFICATION / NOTES
A Chaincase 7.92, 8.37, 8.47
B O-ring
8.37 chaincase - install seal sleeve (C) first, then o-ring (B) on jackshaft
7.92 chaincase - install o-ring (B) first then seal sleeve (C) on jackshaft.
CSeal
D Brake Disk Minimum thickness = .193” (4.9mm)
E Retaining Ring included on jackshaft
F Jackshaft
G Bulkhead area
H Bearing
I Flangette
J Belt
K Spacer
L Washers
M Driven clutch retaining bolt 17 ft-lb (23Nm)
N Driven Clutch
O Washers Note the placement
P Flangette Nuts 11 ft-lb (15Nm)
Q Driveshaft Flangette Carriage Bolts
R Nylock Nut 11 ft-lb (15 Nm)
S Speedo Pick Up (Speed Sensor)
T Speed Sensor Bolt 5 ft-lb (7Nm)
U Speedo Pick Up Housing
V Speedo Pick Up Gasket
