13.23
ELECTRICAL

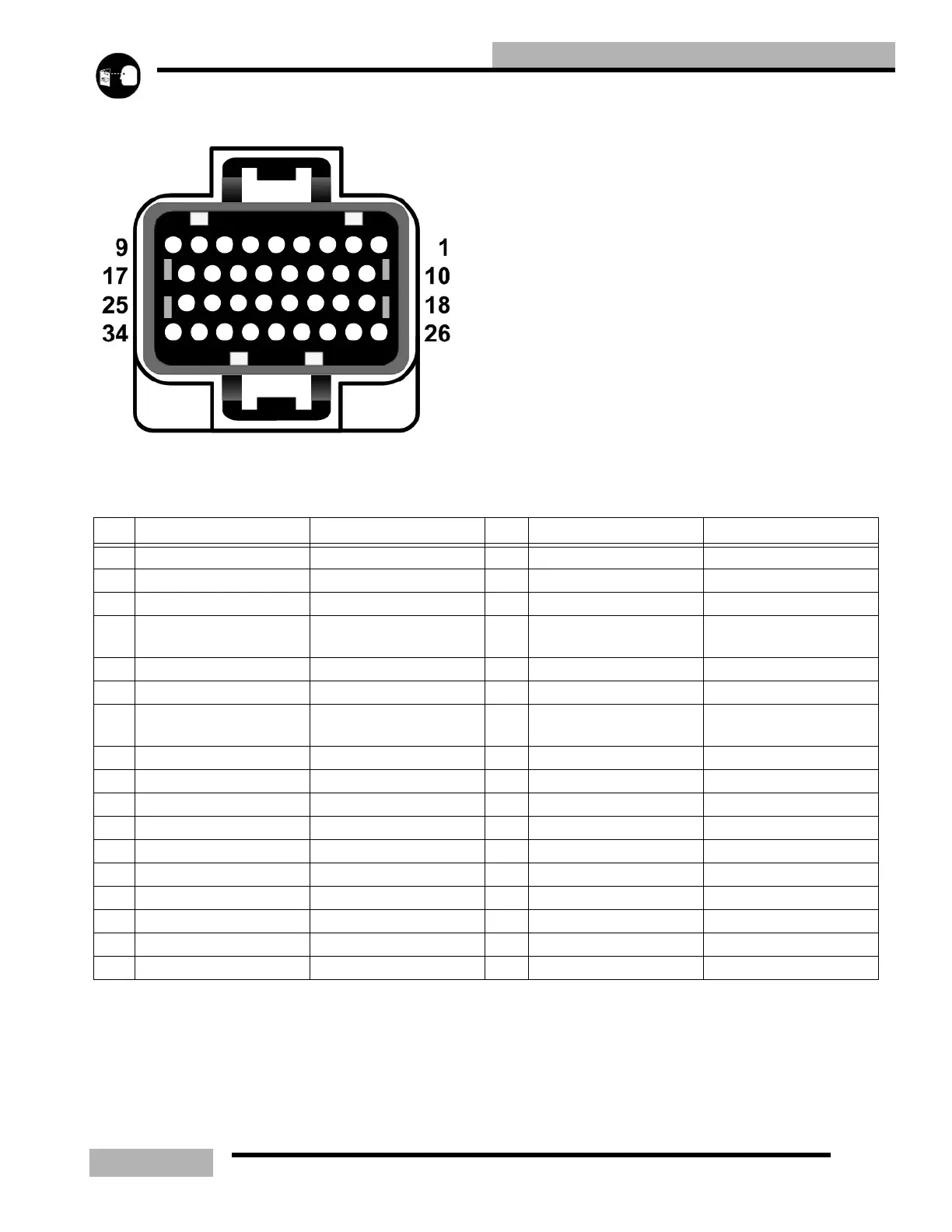

ECU PLUG #2
As viewed unplugged
Table 13-17:
PIN WIRE COLOR COMPONTENT PIN WIRE COLOR COMPONENT
1 White CPS (2 tooth) ground 18 - -
2 White/Red CPS (2 tooth) signal 19 Purple Detonation sensor signal
3 Green CPS (5 tooth) ground 20 Black/Blue Detionation sensor ground
4 White/Green CPS (5tooth) signal 21 Black/Blue
Coolant temperature
sensor/TPS ground
5 - 22 Black/Blue External power ground
6 - 23 Black PTO Ignition coil (ground)
7 Pink Digital Wrench 24 Black
MAG Ignition coil
(ground)
8 Orange External Power (+) 25 Brown Exciter Coil (ground)
9 White PTO Ignition coil 26 Red EV Solenoid (power)
10 - 27 White/Yellow EV Solenoid
11 Yellow Coolant Temp Sensor 28 -
12 Aqua TPS signal 29 -
13 - 30 Red/White Power Supply (5 volts)
14 Red/Blue Digital Wrench 31 Blue/Yellow Injector Coil
15 Gray Digital Wrench 32 Blue/Yellow Injector Coil
16 Black/White Diagnostic Lamp 33 Green/Red Exciter Coil (+)
17 White MAG Ignition coil (power) 34 Green/Yellow Exciter Coil (center)
