12.7
CHASSIS / HOOD
of the chassis.
EDGE AIR BOX INSTALLATION
1. Place the air box in the chassis.
2. Align the carburetor intake with the air box carburetor
boots.
3. Push the rear of the air box down so that it is seated with
the carburetors.
4. Attach the carburetor vent tubes to the air box.
5. Plug in the CDI box and the coils.
6. Lift the rubber fastener over the rear latch.
7. Replace the air filter.

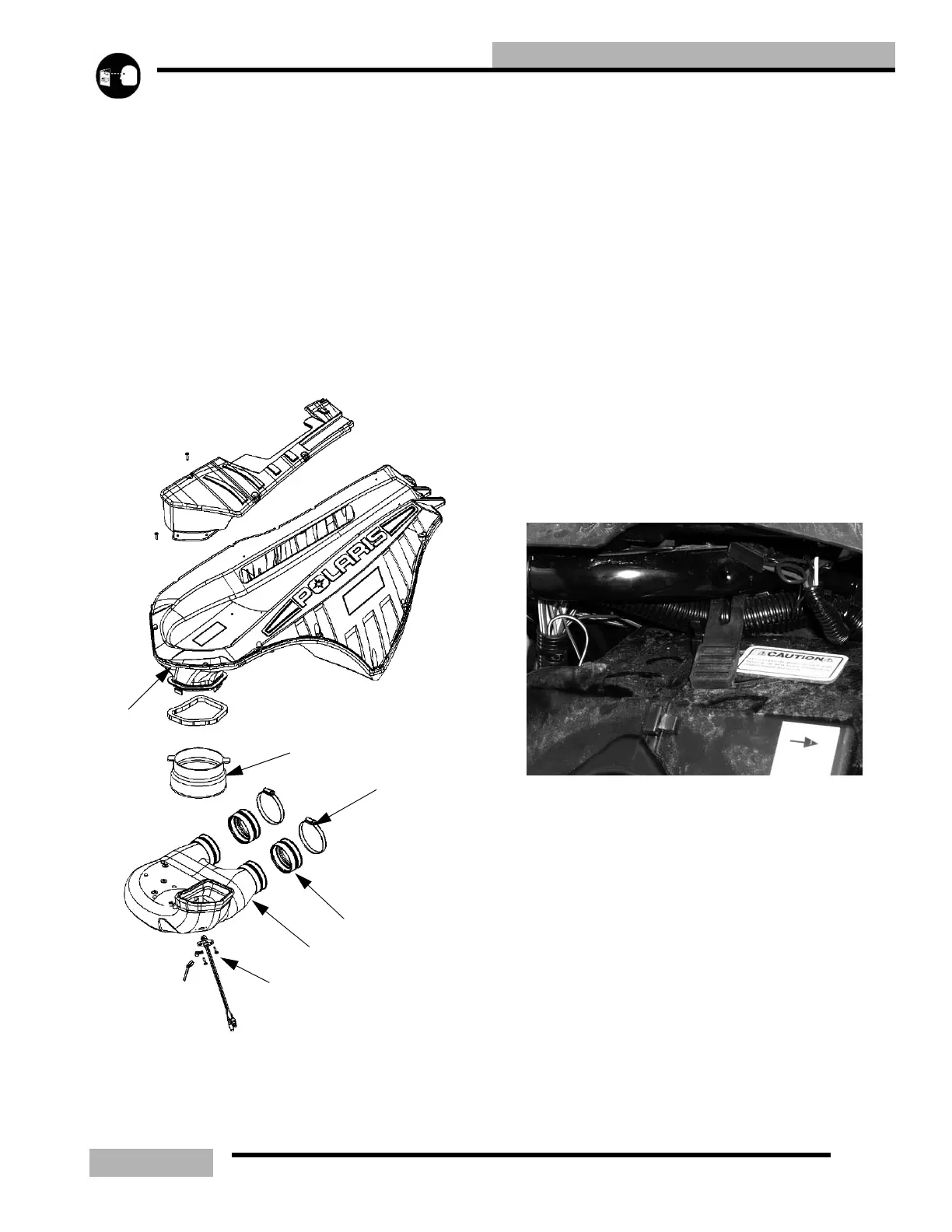

IQ 700/900 AIR INTAKE REMOVAL
1. Roll the lower lip of the duct boot (A) up.
2. With force, pull the front part of the plenum (B) upward.
3. Pull the rear part of the plenum forward and remove it from
the machine.
4. If removing the boost box (C), unplug the intake air sensor
(D).
5. Loosen the narrow clamps (E).
6. Pull the boost box (C) forward from the boots (F), and
remove it from the machine.
IQ 700/900 AIR INTAKE INSTALLATION
1. If the boost box was removed install the intake air sensor
(D).
2. Push the boost box (C) toward the boots (F),.
3. Tighten the narrow clamps (E).
4. Push the rear part of the plenum toward the plenum tab
holder in the chassis.
5. Push the front part of the plenum (B) downward into the
boost box.
6. Roll the lower lip of the duct boot (A) down.
IQ CARBURETED AIR INTAKE REMOVAL
1. Remove the air filter.
2. Remove the top air box strap.
3. Remove the CDI from the air box.
4. Unplug the CDI connection.
5. Disconnect the spark plug caps from the spark plugs.
6. Pull air box straight up to access the carburetor vent lines
and coil connectoion.
7. Label and remove the vent lines.
8. Disconnect the coil connection.
9. Remove the air box.
A
B
C
D
E
F
C
