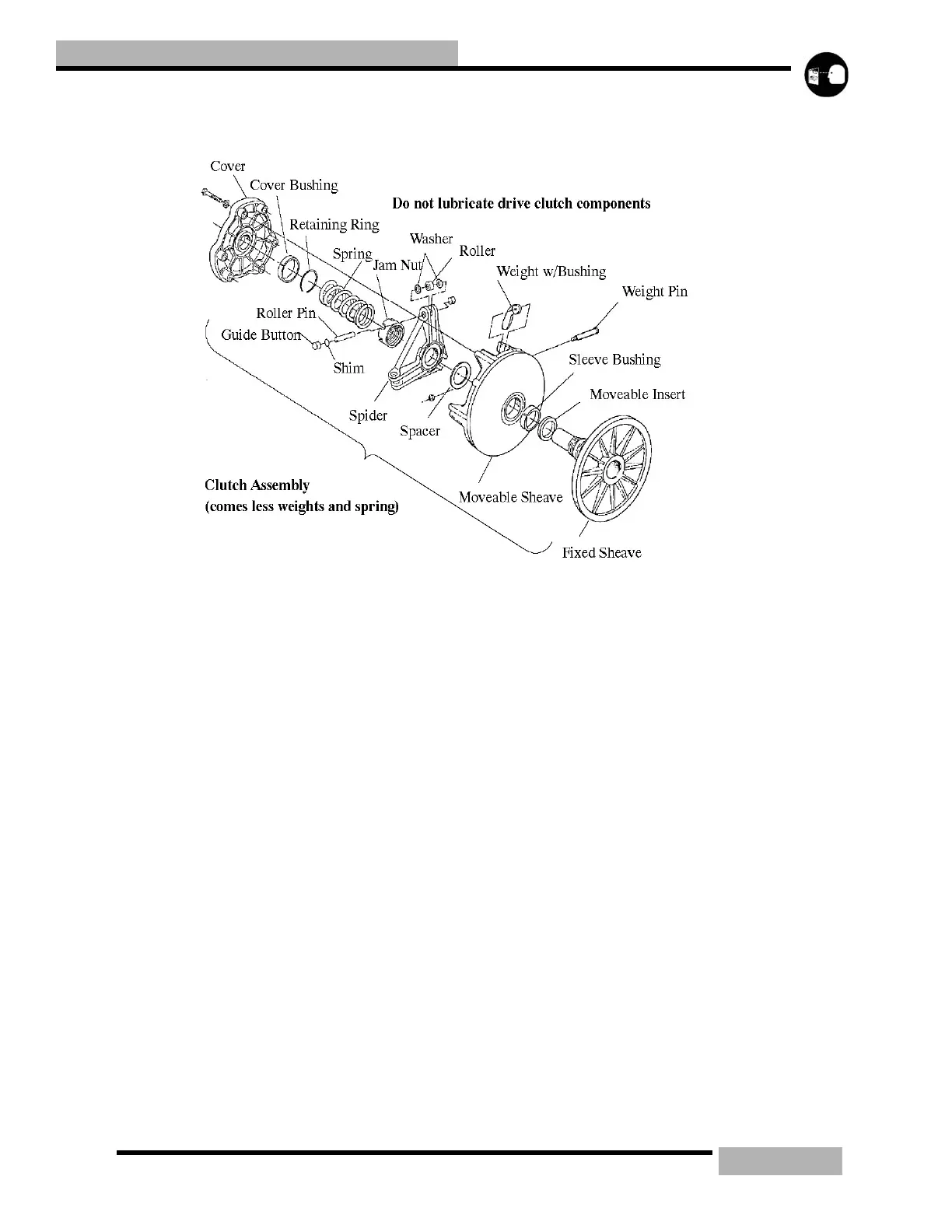

CLUTCHING
DRIVE CLUTCH COMPONENTS
NOTE:
Replacement c
lutches come
complete and
balan
ced without clut
ch weights and clutch spring. The
clutch cover, spider, and she
aves cannot be purchased separ
ately as replacement part
s.
154
156
Table of Contents
