12.5
CHASSIS / HOOD
3. Replace in reverse order.
IQ RMK SEAT BASE REMOVAL/
INSTALLATION
1. Remove seat.
2. Remove the fasteners that hold the base onto the chassis.
3. Install in reverse order, torque the seat base fasteners to 8-
12 ft-lb (11-16Nm).
IQ FUEL TANK REMOVAL
1. Remove the seat as outlined above.
2. Remove the seat base.
3. Drain any fuel from the fuel tank.
4. Remove the console. See “IQ CONSOLE REMOVAL /
INSTALLATION” on page 6.
5. Using the fuel pressure bleeding tool release the pressure
in the fuel rail. See “FUEL RAIL BLEEDING” on page 4.
6. RMK units will need to remove the bolts (A) that hold the
seat base on the tunnel.
7. Remove the console see page See “IQ CONSOLE
REMOVAL / INSTALLATION” on page 6.
8. Remove the fuel line clips, See “FUEL CLIP REMOVAL”
on page 3.
9. Remove the fuel lines from the ridged fuel lines using the
fuel line removal tool (PS-47152).
10. Remove the two nylock nuts (E) that hold the fuel tank (F)
onto the chassis.
11. Carefully lift the rear of the fuel tank and slide the fuel tank
back so that you can reach the fuel pump harness, and
disconnect the harness.

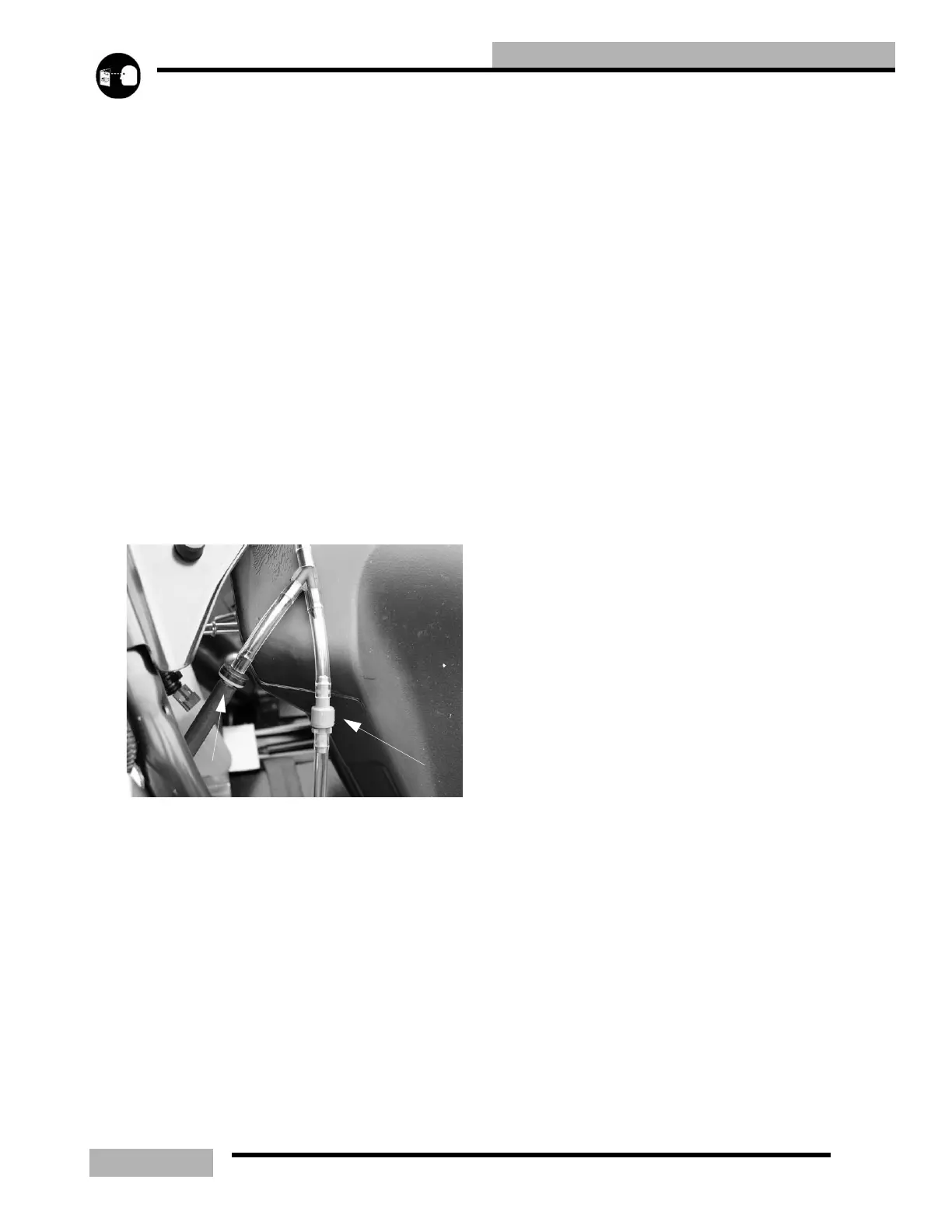

12. Disconnect the exhaust valve solenoid line from the fuel
tank vent/over flow line at the T fitting.
13. Disconnect the fuel tank vent line (J) from the side of the
tank at the T fitting.
14. Remove the fuel tank from the chassis.
IQ FUEL TANK INSTALLATION
1.
Exhaust Valve Line
Fuel Vent Line
