12.8
CHASSIS / HOOD
HANDLEBAR COVER
HANDLE BAR COVER REMOVAL/
INSTALTION

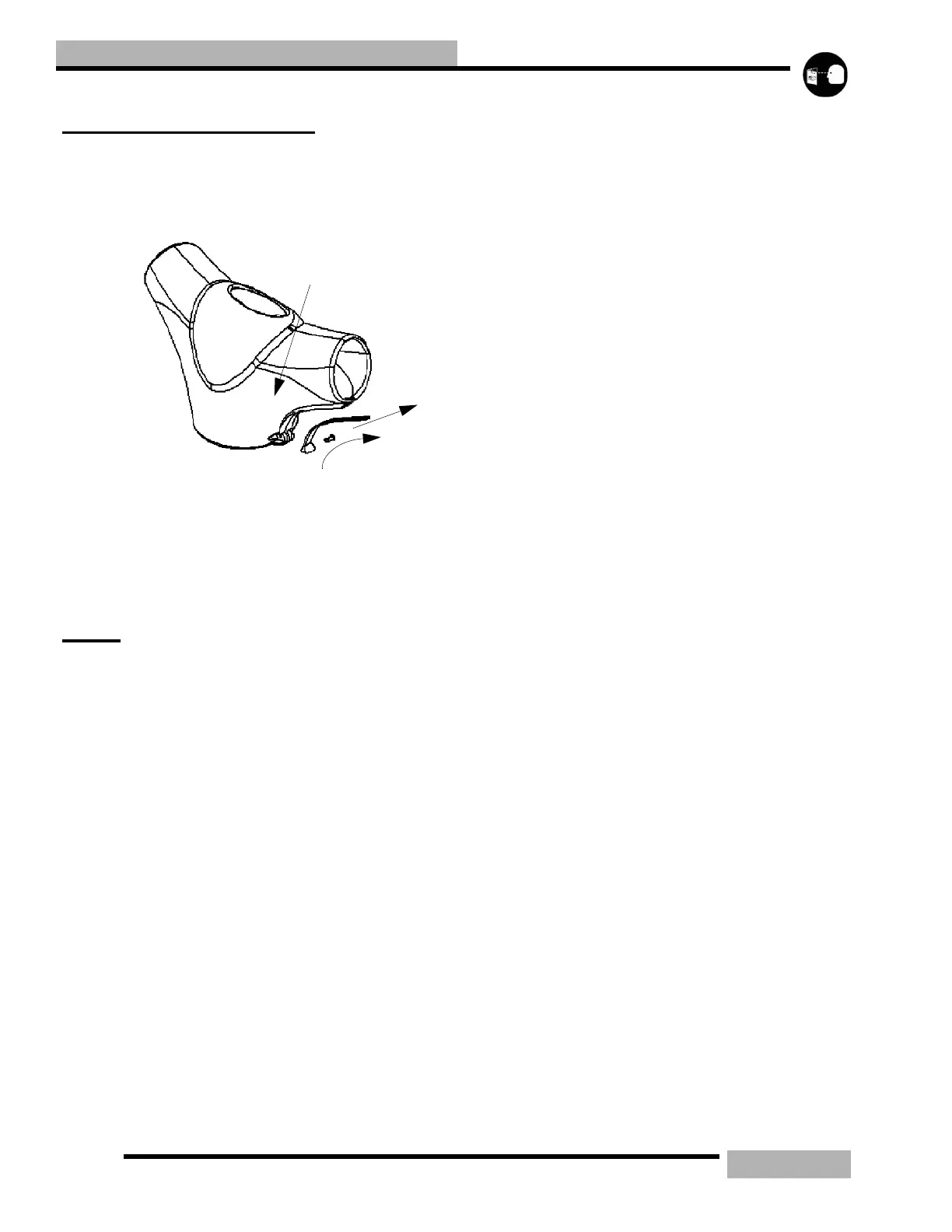

1. Slide handle bar covers slide (A) off on each side.
2. Remove the handle bar cover darts (B) on each side.
3. Remove handle bar cover (C).
4. Installation is in reverse order of removal.
SKIS
SKI REMOVAL
1. Securely lift the front of the machine off the ground.
2. Remove the ski to spindle bolt and washers.
3. Remove ski, bushing and ski bumper.
SKI INSTALLATION
1. Place ski, bushing and bumper onto spindle.
2. Insert the ski to spindle bolt through the ski and spindle.
NOTE: The ski bumper is orientated so that the
“FRONT” label is installed toward the toe of the ski.
3. Tighten the nuts.
C
A
B
