Mute Groups
Mute Groups provide a means of muting multiple inputs
and outputs from a single control.
A M G
When a channel is in one or more Mute Groups, all
Mute Groups containing the same channel and the
Channel Mute itself, must be unmuted for audio topass.
When a channel is muted by a mute group, its mute
button will be coloredorange.
M G S

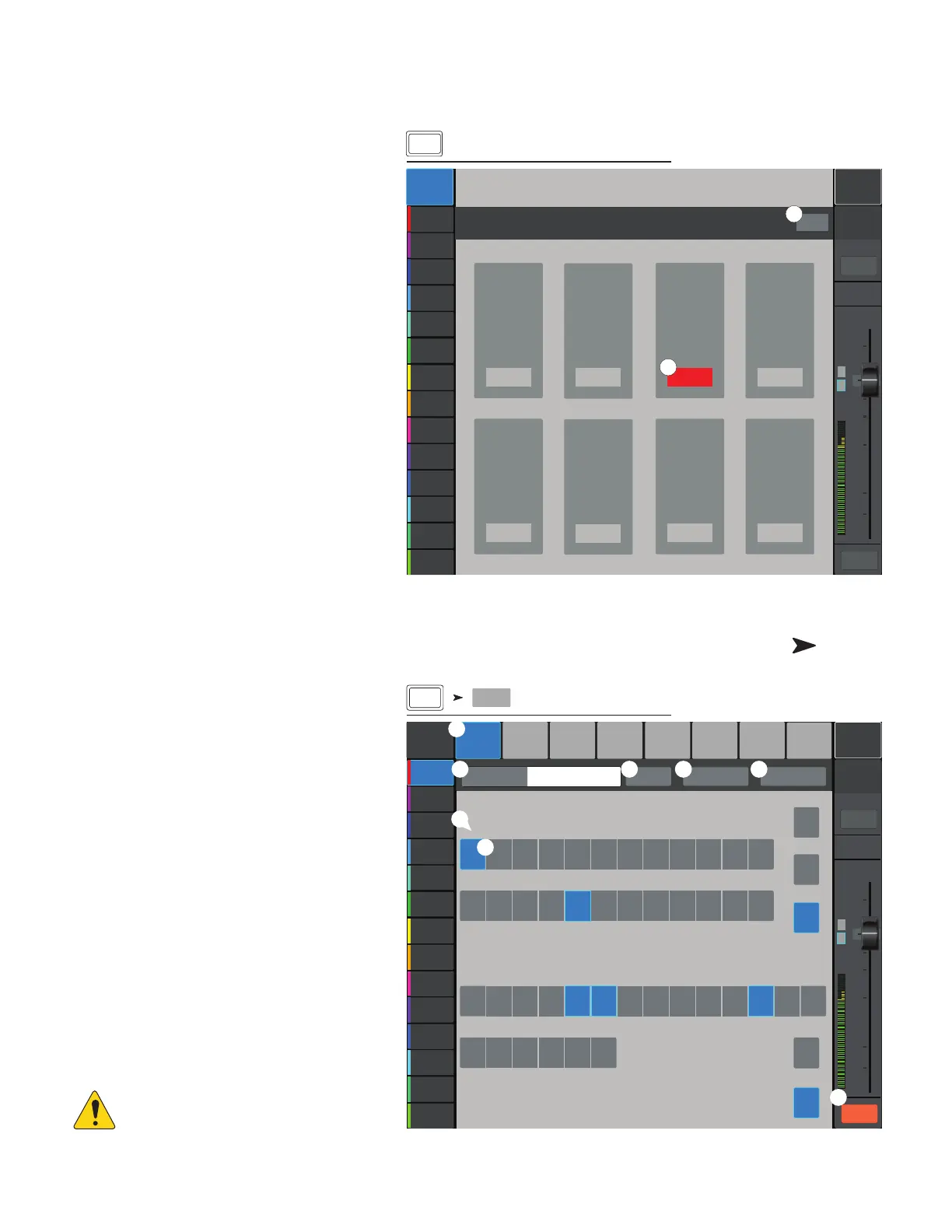

1.
Edit –
Touch the Edit button to add or remove
channels from MuteGroups.
2.
Mute Group –
Touch any button to activate
or deactivate the Mute Group.
M G E S
1. Mute Group select – Selects a Mute Group for
editing.
2. User-defined name – Touch the name to display
a keyboard that may be used to enter a name for
the Mute Group.
3.
Mute –
Mutes / unmutes the channels
assigned to the Mute Group being edited.
4.
Clear Assignments –
Clears all
assignments from the selected Mute Group.
5.
Close Edit –
Returns to the Mute Group
Mute screen.
6. System-assigned channel numbers.
7.
Assignment –
Assigns / unassigns
a channel to the selected mute group and
indicates assignment status.
8. When a channel is muted by a Mute Group, the
color of the channel’s Mute button is orange.
When a channel is muted by the channel Mute
button and a Mute Group, the channel’s Mute
button is red. All mutes associated with a
channel must be unmuted for audio to pass.
NOTE: Mute Groups may be assigned
to User Buttons. See the User Button topic
formore.
