QSC touchmix-30 pro User Manual

87
1001108-01-F

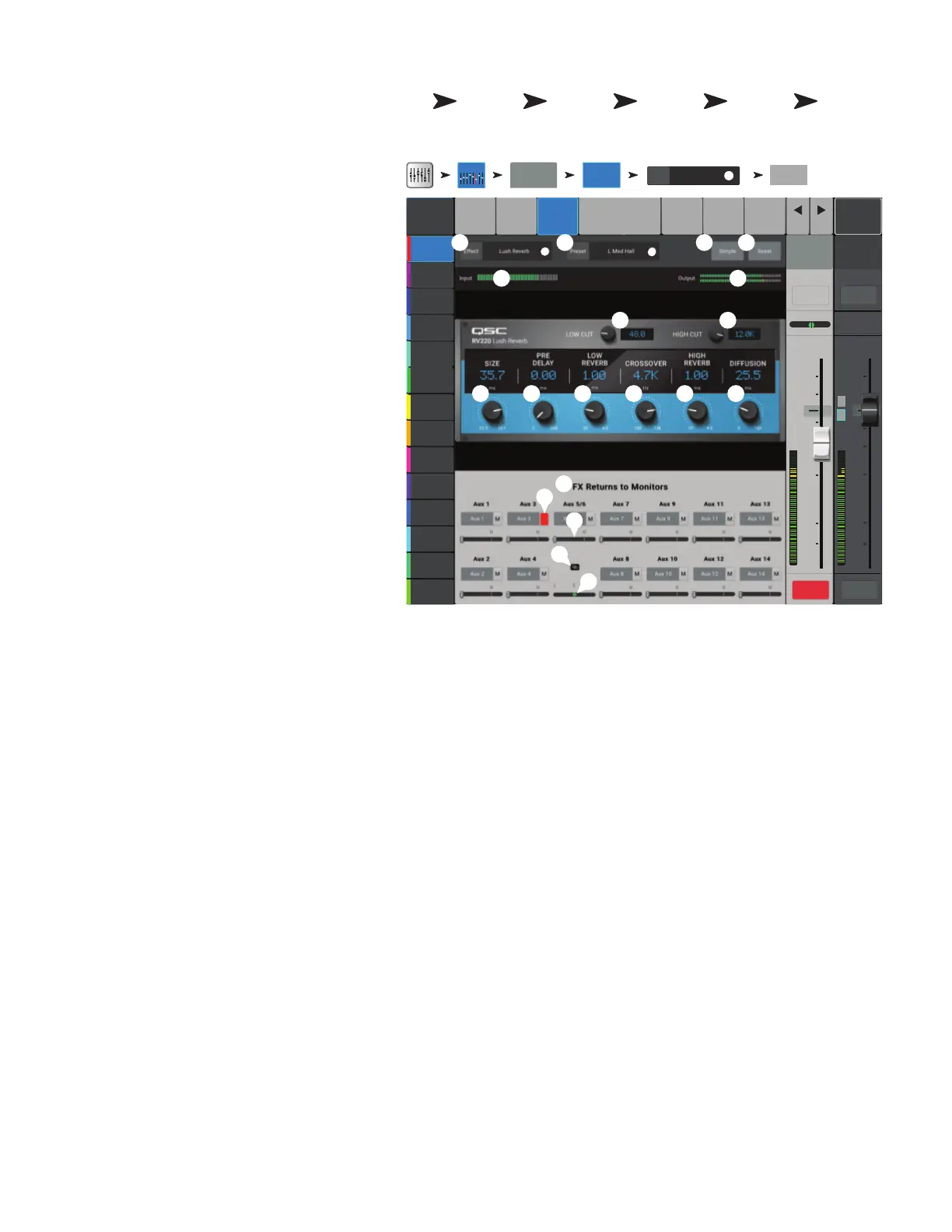

FX P – L R
Reverb presets with an “L” suffix use a DSP reverb
model with a more “lush” character.
1. Effect – Name of the current Effect. Touch to
select an Effect Type.
2. Preset – Name of the current preset. Touch
to access the library of Presets.
3. Simple button – Turns Simple mode on
and off. Hides all but the essential controls on
the selected FX. Not present on Mono
and Stereo Delay effects.
4. Reset button – Returns processor and
Aux Send controls to default settings.
5. Input meter – Displays the level of
incoming, mono audio signal.
6. Output meter – Displays the stereo level
of the processed output signal.
7. Low Cut – Attenuates, or “cuts” frequencies
below the set frequency. Range is 20Hz to
2kHz.
8. Hi Cut – Attenuates, or “cuts” frequencies
above the set frequency. Range is 200 Hz
to20kHz.
9. Size – Adjusts dimension of the simulated
acoustic space inmeters.
10. Pre Delay – Sets the time interval between
input signal and firstreflection
11. Low Reverb – Adjusts the reverb decay time for frequencies below the crossover frequency.
12. Crossover – Sets the crossover point for the Low Reverb Time and the High Reverb Time.
13. High Reverb – Adjusts the reverb decay time for frequencies above the crossover frequency.
14. Diffusion – Adjusts the early reflections to simulate a more or less complex reflective acoustic surface.
15. FX Returns to Monitors :
a. M – Indicates the Aux Send for the Effect is muted from the Auxes tab.
b. Send Slider – Sets the level of the Effect to the Aux output.
c. Link icon – Indicates the Auxes are linked.
d. Aux Pan control – Pans between the two linked Auxes.
Home
Touch the
FX Masters
Bank
Touch an
FX Channel
Touch the
Effect Tab
Touch Effect
Pull-Down
Touch
Lush Reverb
Joe’s Monitor
Aux 1
Aux 2
Aux 2
Aux 3
Aux 3
Aux 4
Aux 4
Aux 5
Aux 5
Aux 6
Aux 6
Aux 7
Aux 7
Aux 8
Aux 8
Aux 9
Aux 9
Aux 10
Aux 10
Aux 11
Aux 11
Aux 12
Aux 12
Aux 13
Aux 13
Aux 14
Aux 14
Overview Effect Auxes Setup EQ Presets
Default
Scene:
Main Mix
L/R
Prev
Next
48
L
F
LR
∞
∞
Cue
L C R
FX
1
10
5
u
5
10
20
0
40
10
10
5
u
5
10
20
0
40
10
FX 1 Main
Cue
Main
L/R
Mute Mute
FX 1
Effect
Inputs 1-8
FX Masters
+
+
Lush
Reverb
Effect None
+
2 4
5
1
109
7 8
11
6
12
3
14
M
15
a
b
c
d
13

QSC touchmix-30 pro Specifications

General

Type	Digital Mixer
Channels	32
USB Interface	Yes
Effects Processors	4
Wireless Control	Yes
Phantom Power	Yes
Outputs - Aux	6
EQ Bands	4-band parametric
Computer Connectivity	USB
A/D Resolution	24-bit
Sampling Rate	48kHz
Bit Depth	24-bit
Wireless Control Platforms	iOS, Android
Aux Outputs	6
Main Outputs	2
Touchscreen	Yes
Headphones	1
Effects	Reverb, Delay, Chorus
USB	2.0
Power Source	AC
Display	10-inch Touchscreen
Stereo Line Inputs	2 stereo pairs
Inputs - Line	2 stereo pairs
