QSC touchmix-30 pro User Manual

89
1001108-01-F

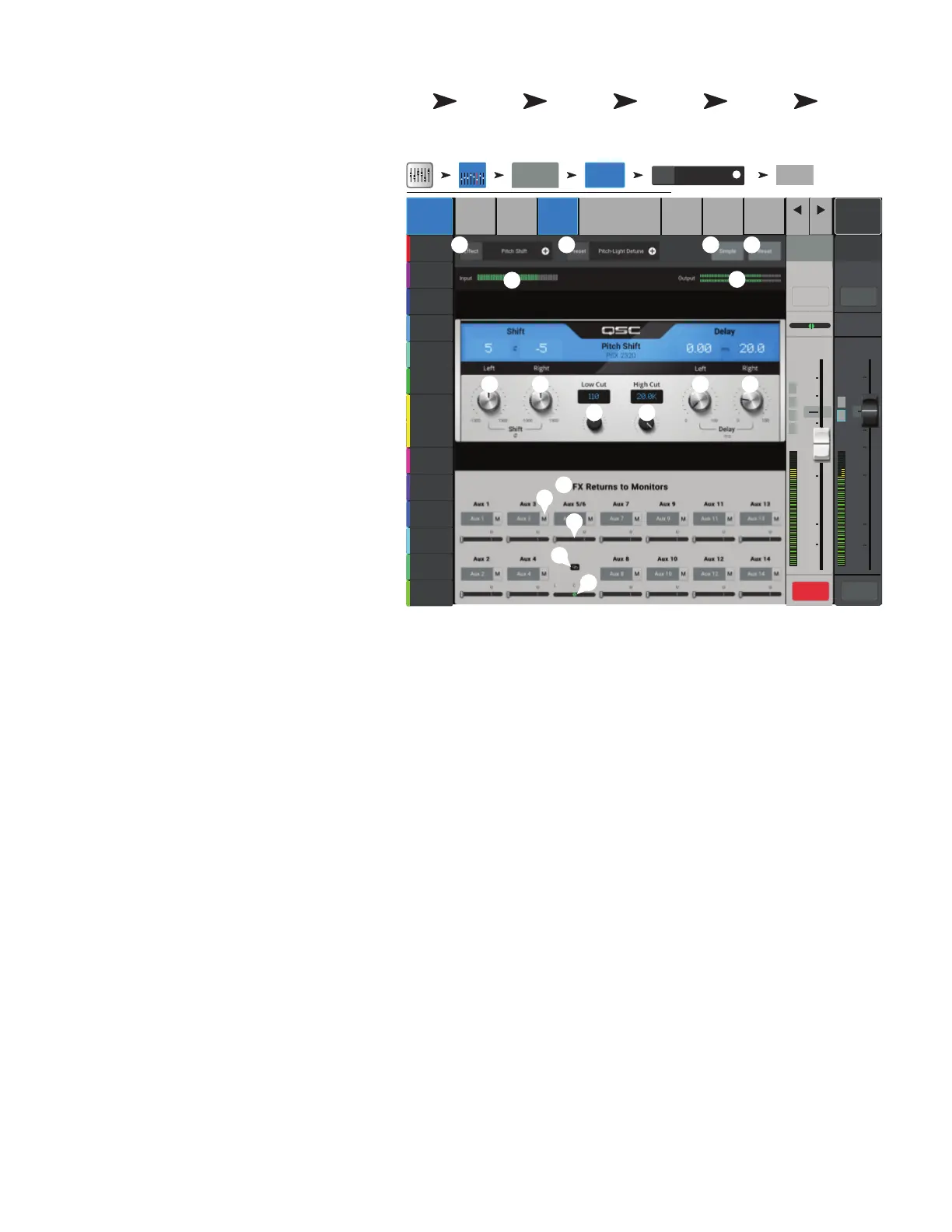

FX P – P S
The Pitch Shift raises or lowers the pitch of an audio
signal by a fixed interval. In addition, the signal can be
delayed from the original. The two output channels can
be adjustedindependently.
1. Effect – Touch to select an Effect Type.
2. Preset – Name of the current preset. Touch
to access the library of Presets.
3. Simple button – Turns Simple mode on
and off. Hides all but the essential controls on
the selected FX. Not present on Mono and
Stereo Delay effects.
4. Reset button – Returns processor and
Aux Send controls to their default settings.
5. Input meter – Displays the incoming audio
level before the Effect.
6. Output meter – Display the audio level after
the Effect.
7. Left and Right Shift knobs – Set the
amount of shift, down (-) or up (+) for the two
output channels.
• 100¢ = 1 half step,
• 200¢=1 whole step,
• 1200¢ = 1 octave
8. Lo Cut knob – Attenuates, or “cuts” audio
below the set frequency. Range is 20 Hz to 2 kHz.
9. Hi Cut knob – Attenuates, or “cuts” audio above the set frequency. Range is 200 Hz to 20 kHz.
10. Rotating the Master Encoder will change the amount of pitch shift in half-step intervals. For finer adjustments, hold the Encoder down
whileadjusting.
11. Left and Right Delay knobs – Adds up to 100 milliseconds of delay to the Pitch Shift output.
12. FX Returns to Monitors :
a. M – Indicates the Aux Send for the Effect is muted from the Auxes tab.
b. Send slider – Sets the level of the Effect to the Aux output, typically the performer’s monitor.
c. Link icon – Indicates the Auxes are linked.
d. Aux Pan control – Pans between the two linked Auxes.
Home
Touch the
FX Masters
Bank
Touch an
FX Channel
Touch the
Effect Tab
Touch Effect
Pull-Down
Touch
PitchShift
L
G
48
L
F
LR
1 2
3 4
5 6
7 8
∞
∞
Cue
L C R
FX
1
10
5
u
5
10
20
0
40
10
10
5
u
5
10
20
0
40
10
FX 1 Main
Cue
Main
L/R
Mute Mute
Overview Effect Auxes Presets Setup EQ
Prev
Next
Default
Main Mix
L/R
Scene:
Joe’s Ears
Aux 1
Aux 2
Aux 2
Aux 3
Aux 3
Aux 4
Aux 4
Aux 5
Aux 5
Aux 6
Aux 6
Aux 7
Aux 7/8
Aux 9
Aux 9
Aux 10
Aux 10
Aux 11
Aux 11
Aux 12
Aux 12
Aux 13
Aux 13
Aux 14
Aux 14
FX 1
Inputs 1-8
FX Masters
Effect
Effect
None
+
Pitch
Shift
2 4
5
1
98
7 7 10 10
6
11
3
a
b
c
d

QSC touchmix-30 pro Specifications

General

Type	Digital Mixer
Channels	32
USB Interface	Yes
Effects Processors	4
Wireless Control	Yes
Phantom Power	Yes
Outputs - Aux	6
EQ Bands	4-band parametric
Computer Connectivity	USB
A/D Resolution	24-bit
Sampling Rate	48kHz
Bit Depth	24-bit
Wireless Control Platforms	iOS, Android
Aux Outputs	6
Main Outputs	2
Touchscreen	Yes
Headphones	1
Effects	Reverb, Delay, Chorus
USB	2.0
Power Source	AC
Display	10-inch Touchscreen
Stereo Line Inputs	2 stereo pairs
Inputs - Line	2 stereo pairs
