QSC touchmix-30 pro User Manual

69
1001108-01-F

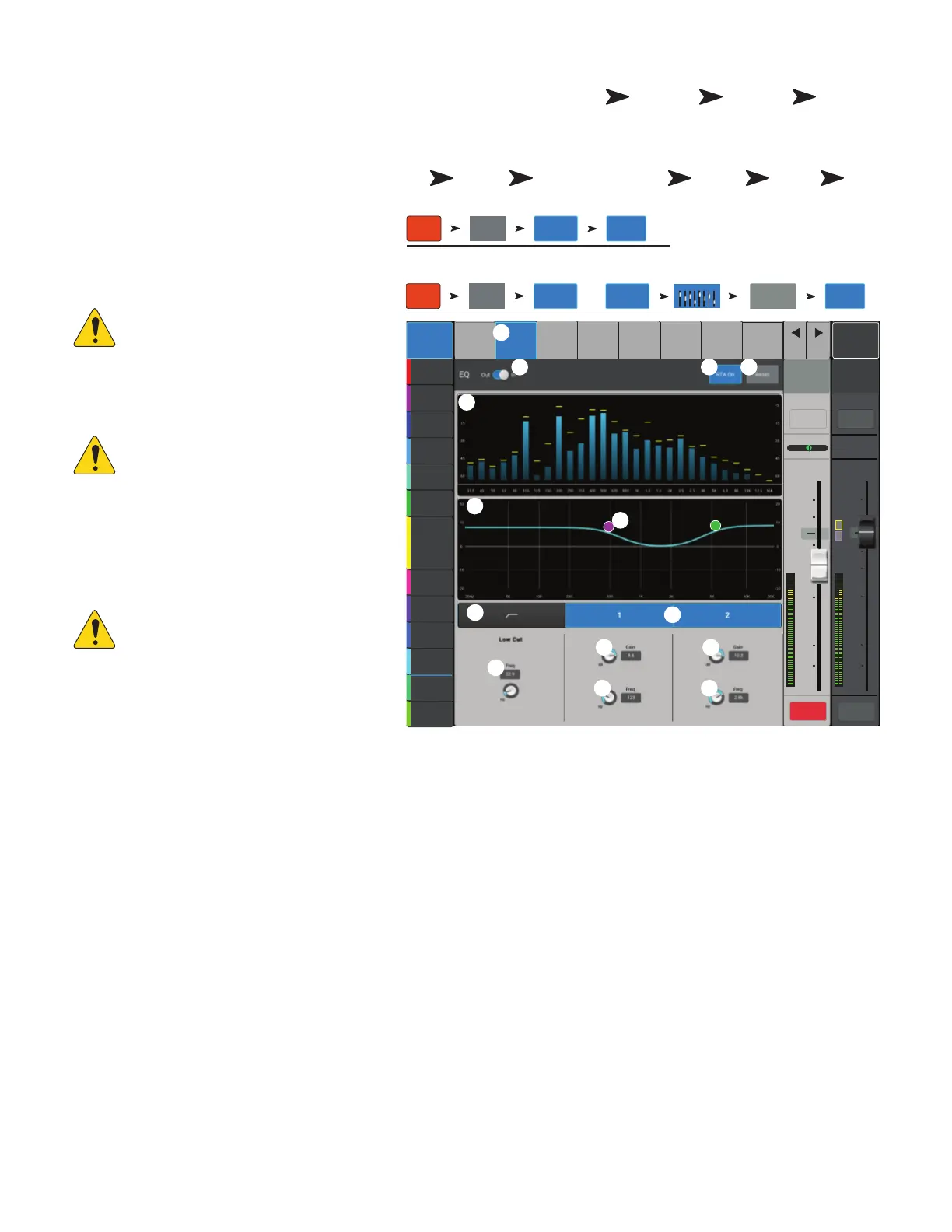

-T PB – EQ
2-Trk PB (2-track playback) provides equalization for
2-Track audio from a previous TouchMix session or MP3
files stored on a USBdevice.
1. EQ tab – Displays the Audio Player EQ
controls.
2. PEQ switch – Enables (In) / bypasses (Out)
the equalizer.
3. RTA On – Enables / disables the Real Time
Analyzer.
NOTE: A maximum of two RTA
displays for TouchMix-30 Pro, and one RTA
display for the TouchMix-8 and -16 are
available at a time on any combination of a
mixer and tablet devices.
NOTE: When the RTA is off, the
Parametric EQ graph expands to use the
entire graph area.
4. Reset button – Sets all the EQ controls to
their factory defaultposition.
5. RTA Display – Displays the amplitude of the
channel signal in 1/3 octave bands.
NOTE: Peak hold is displayed only on
tablet devices.
6. EQ graph – A graphic representation of the
EQsettings.
7. EQ Handles – Touch, hold, and drag
to change the Frequency and Gain of the
associated EQ band. The frequency band button must be engaged to see the EQ Handles.
8. Low Cut filter button – This filter cuts frequencies below the frequency set by the corresponding Freqcontrol.
9. Bands 1 & 2 button – Engages / disables the low and high shelf filters.
10. Gain knob – Adjusts the gain of the associated shelf filter over a range of -15 dB to +15 dB.
11. Frequency knob – Sets the center, or shelving, frequency of the associated EQ band.
Press Rec/
Play
Touch
Recording
Mode
Touch Stereo
MP3
Touch
EQ
OR
Press Rec/
Play
Touch
Recording
Mode
Touch
Multitrack
USBDrive
OR
Touch
Multitrack
DAW
Touch
Stereo
In/2–Trk
Touch
2-Trk PB
Touch
EQ
Joe’s Monitor
Aux 1
Aux 2
Aux 2
Aux 3
Aux 3
Aux 4
Aux 4
Aux 5
Aux 5
Aux 6
Aux 6
Aux 7
Aux 7
Aux 8
Aux 8
Aux 9
Aux 9
Aux 10
Aux 10
Aux 11
Aux 11
Aux 12
Aux 12
Aux 13
Aux 13
Aux 14
Aux 14
Main Mix
L/R
Default
Scene:
Overview
Audio
Player
Auxes Setup EQ Presets
Prev
Next
L
G
48
L
AF
∞
∞
Cue
L C R
Playback
PB
10
5
u
5
10
20
0
40
10
10
5
u
5
10
20
0
40
10
2-Trk PB Main
Cue
Main
L/R
Mute Mute
Rec/
Play
Recording
Mode
EQ
Stereo MP3
USB Drive Playback
2-Trk PB
Rec/
Play
Recording
Mode
EQ
Multitrack
USB Drive
OR
Multitrack
DAW
Stereo In/2-Trk
2 3
5
6
1
9
10
8
4
11
11
10
11
7
2
1
OR
OR

QSC touchmix-30 pro Specifications

General

Type	Digital Mixer
Channels	32
USB Interface	Yes
Effects Processors	4
Wireless Control	Yes
Phantom Power	Yes
Outputs - Aux	6
EQ Bands	4-band parametric
Computer Connectivity	USB
A/D Resolution	24-bit
Sampling Rate	48kHz
Bit Depth	24-bit
Wireless Control Platforms	iOS, Android
Aux Outputs	6
Main Outputs	2
Touchscreen	Yes
Headphones	1
Effects	Reverb, Delay, Chorus
USB	2.0
Power Source	AC
Display	10-inch Touchscreen
Stereo Line Inputs	2 stereo pairs
Inputs - Line	2 stereo pairs
