51
1001108-01-F

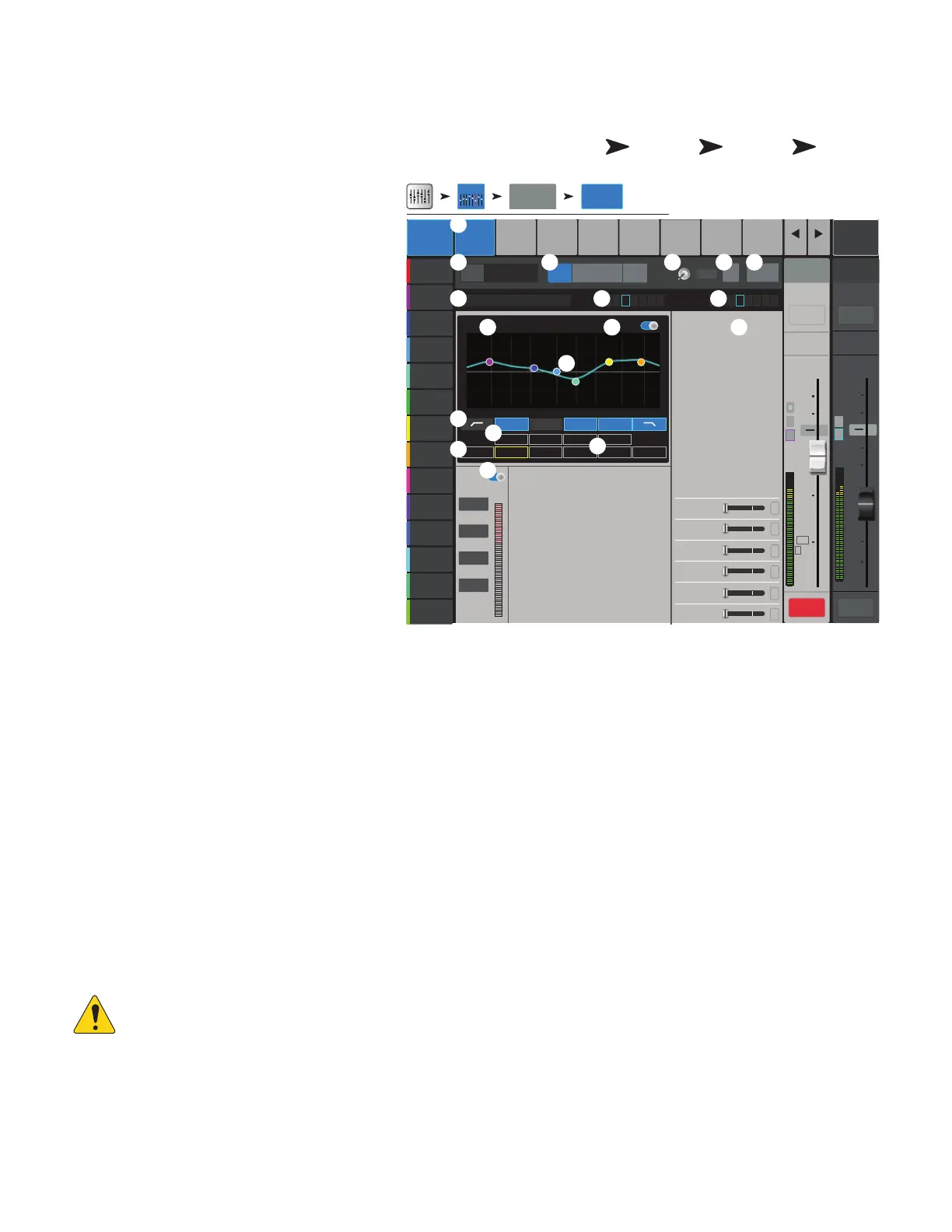

Output Channels
O C – O
Provides a single-screen view of frequently used
controls and indicators for the output channel.
1.
Overview
tab
– Selects the Channel
Overview screen.
2.
Preset
– Shows the currently selected Preset
for this channel.
3.
Pick-off point
– (Auxes only) Determines
where the signal for the output channel is taken.
4.
Delay
– Controls and indicates the amount of
delay (up to 100 msec.) applied to the signal.
5.
Delay In
– Applies / bypasses the delay.
6.
Reset
– Sets all controls for the input channel
to the factory default position.
7. Description of the Current Preset
8.
DCA
– Indicates which DCA groups are
assigned to the channel.
9. Mute – Indicates which Mute groups control the
channel.
10.
Parametric EQ Graph
– A graphic
representation of the equalization curve based
on the EQsettings. When the EQ is engaged, the
trace becomes brighter.
•
EQ Graph Vertical Scale
–
Represents audio level from -20 dB to+20dB.
•
EQ Graph Horizontal Scale
–
Represents frequency from 20 Hz to 20 kHz.
11.
EQ Out/In
– Engages / disengages the equalizer for the channel.
12.
EQ Handles –
Touch, hold, and drag to change the Frequency and Gain of the associated EQ band. The frequency band button
must be engaged to see the EQ Handles.
13.
Aux Sends
– (TouchMix-30 Pro only)
• Aux sends 9 – 14 are available for Aux Outputs 1 – 8 only,
• Displays the system numbers and user-defined names for the Auxchannels.
• Adjustable sliders send signal to the associated Aux channeloutput.
• Mute indicates if the channel’s send to an Aux is muted or not.
14.
Low and High Cut Filter
and
Frequency Bands 1, 2, 3, and 4
– These buttons engage or disengage the
associated filter.
To adjust the following parameters, select the field then use the Master encoder or the up/down nudge buttons on a mobile device.
15.
Gain, Bands 1, 2, 3, and 4
– Displays and adjusts gain (-15 to +15 dB) for the selected frequency band.
16.
Low and High Cut Filter Frequency
– Displays and adjusts the knee frequency for the high and low cut filters.
17. Frequency Bands 1–4 frequency adjustment fields – Displays and adjusts the center frequency for the four
parametric EQ bands.
NOTE: The following section can be a Compressor or Limiter depending on the Comp/Limit switch on the Comp/Limiter tab.
18.
Comp –
•
Comp
– Engages or disengages the channel’s compressor.
•
Threshold
– Displays and sets the level at which compression begins.
•
Attack
– Displays and sets the rate at which the compressor reaches its maximum compression when the threshold level is exceeded.
•
Release
– Displays and sets the rate at which the compressor ceases gain reduction when signal drops below threshold.
•
Ratio
– Displays and sets the amount of compression applied to the signal.
Home
Select an
Output
Bank
Select
Channel
Select
Overview
Tab
∞
3
4
5
6
1
2
Inputs 1-8
Cue
Aux
1
10
5
u
5
10
20
0
40
10
Main
L/R
10
5
u
5
10
20
0
40
10
Anti-
Feedback
Limiter
(Comp)
Auxes Presets Setup
PEQ
Comp
Threshold
Attack
Release
Ratio
M
M
M
M
M
M
9
10
11
12
13
14
Aux 9
Aux 10
Aux 11
Aux 12
Aux 13
Aux 14
AUX Sends
GEQ
GR
LR
1 2
3 4
5 6
7 8
Default
E10 Monitor
Main
Cue
Main Mix
L/R
Scene:
ResetIn
Joe’s Ears
Aux 1
Aux 2
Aux 2
Aux 3
Aux 3
Aux 4
Aux 4
Aux 5
Aux 5
Aux 6
Aux 6
Aux 7
Aux 7
Aux 8
Aux 8
Aux 9
Aux 9
Aux 10
Aux 10
Aux 11
Aux 11
Aux 12
Aux 12
Aux 13
Aux 13
Aux 14
Aux 14
20
10
0
-10
-20
20K
10K5K2K1K5002001005020Hz
3 421
0.00 0.00 0.00 0.00
120 80.0 400 2.0k 6.0k 8.0k
20
10
0
-10
-20
PEQ
Tuned for QSC E10 Monitor
1 2 3 4 5 6 7 8
DCA
1 2 3 4 5 6 7 8
Mute Groups
Preset E10 Monitor
Pre Fdr
Post Fdr
Delay
ms
0.00
-12.0
16.0
50.0
4.0
Overview
MuteMute
Aux 1
Overview
Pre Dyn Pre All
Out In
C
AF
L
F
Aux Out 1-8
2 3
1
6
8
5
7 9
4
1110
14
16
17
15
13
18
12
Prev
Next
2
1
4
3
5
6
