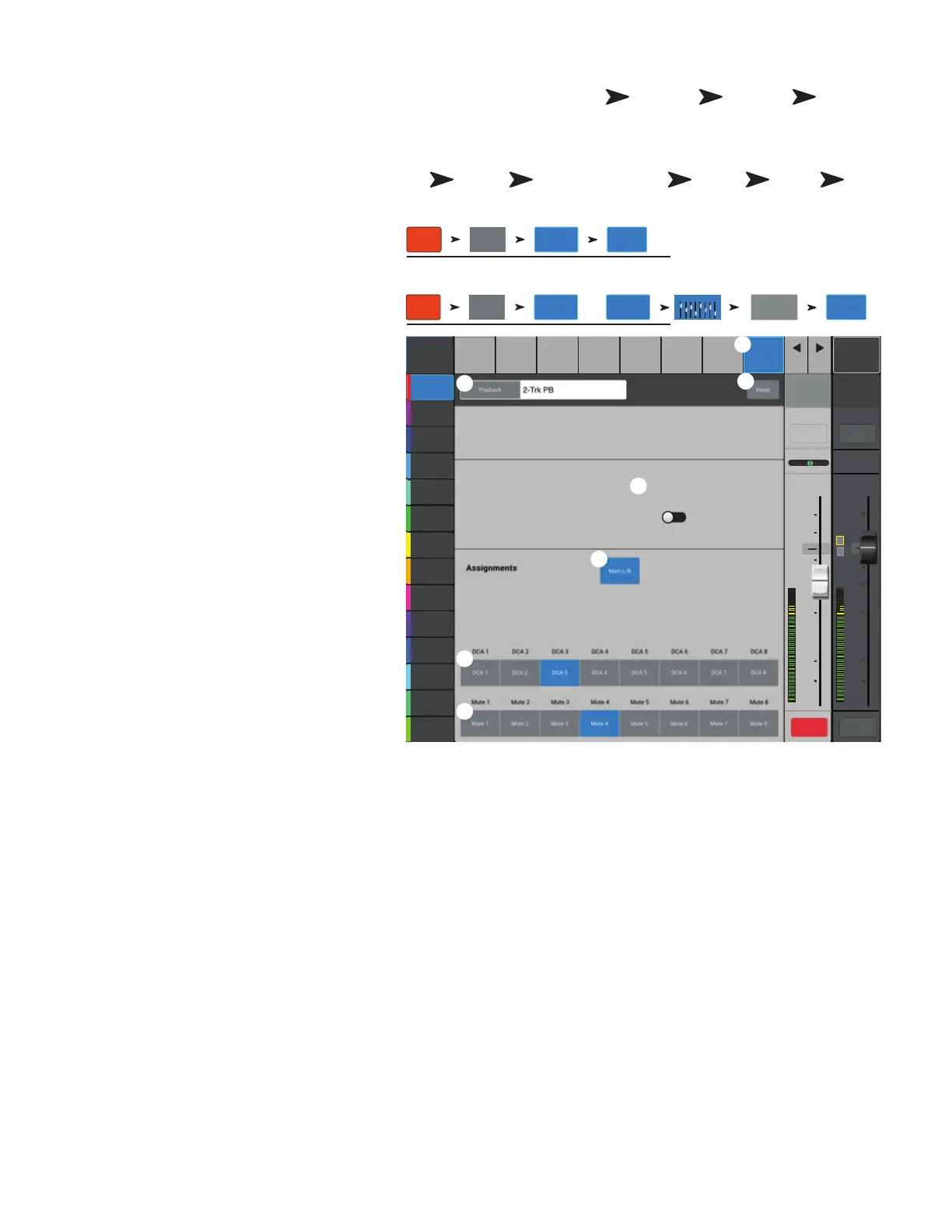

Rename the 2-Trk PB channel, set Channel Safe, and
assign the channel to Mute and DCA Groups
1.
Setup tab
– Selects the Setup screen.
2.
Name field
– Touch the Name to display a
keyboard that may be used to enter a name for
the channel.
3.
Reset button –
Returns settings to the
factory default.
4.
Channel Safe During Scene Recall
–
Setting this switch to Safe prevents channel
settings from being changed when a Scene is
recalled.
5.
Main L/R button
– Turns the FX channel’s
assignment to the Main Left / Right output on
andoff.
6.
DCA Group Assignment Buttons
– Select the DCA Groups this channel is to be
part of. See the DCA Groupstopic.
7.
Mute Group Assignment Buttons
– Select the Mute Groups this channel is to be
part of. See the Mute Groups topic.
