QSC touchmix-30 pro User Manual

129
1001108-01-F

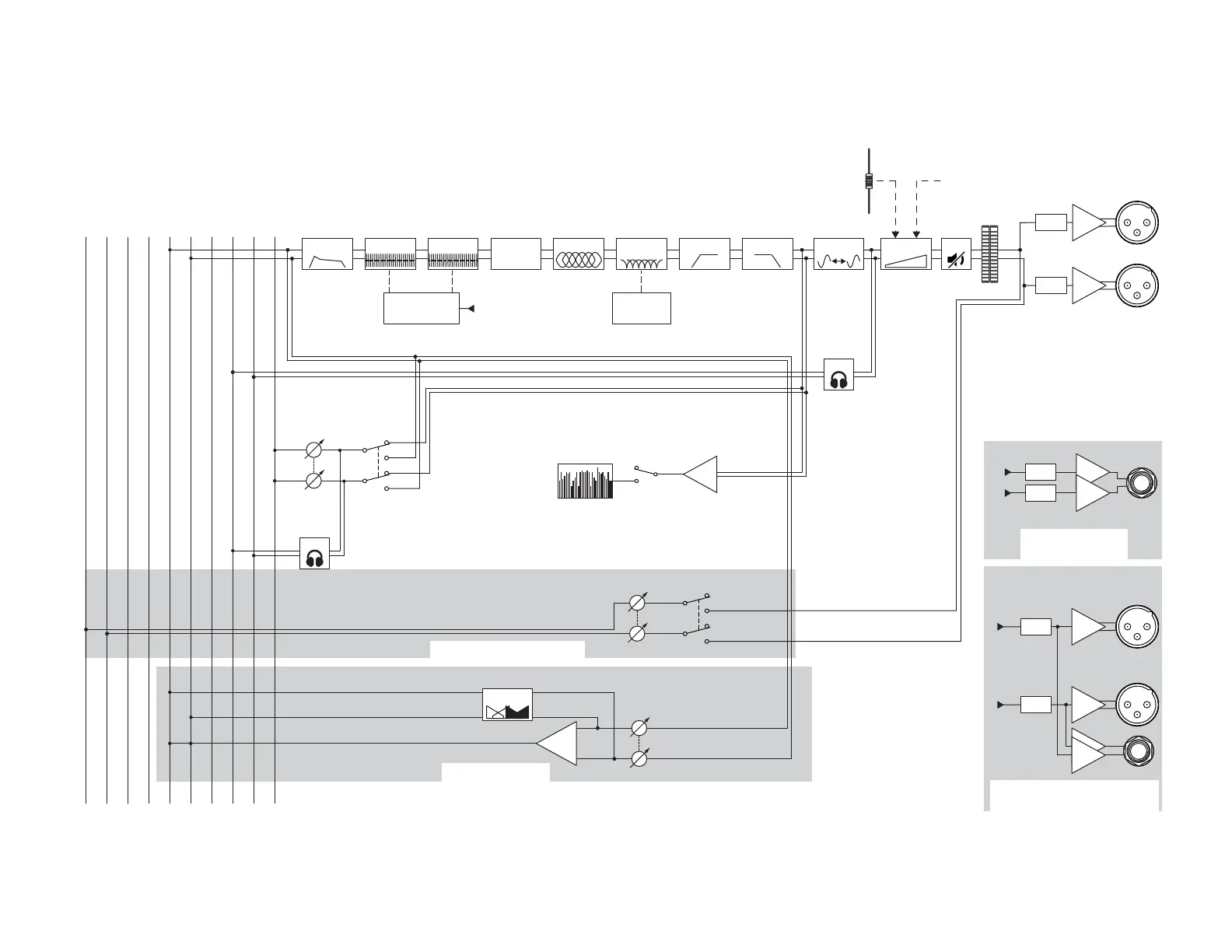

Stereo Auxiliary Output
TouchMix-8 and TouchMix-16
Main Outputs
L R
Cue
L R
Aux (Odd)
To Multi-Track
FX Sub-Groups (odd) * Sub-Groups (even) * Aux (Even)
Aux Out
(Odd)
Aux Out
(Even)
* TouchMix-30 only
TouchMix-30 Only
RTA
Post
Aux. Level
(9 - 14)
SUM
To Mono Mode Auxes
To Stereo Mode Auxes (Odd/L)
To Stereo Mode Auxes (Odd/R)
Record
Pick-Off
Pre
2-Track Record
Level
L
R
Main L/RAux Level
SUM
User EQ
Room
Tuning
Speaker
Preset
Main Fader
From DCA Masters
Odd
Meter
Feedback
Wizard
From
TouchMix-30: Talkback In
TouchMix-16: In 16
TouchMix-8: In 8
DelayLow Cut
High Cut
Limiter
Gain
Gain
GEQ
Mute
GEQ
Room Tuning
Wizard
PEQ Anti
Feedback
D/A
D/A
Cue
Cue
Even
D/A
D/A
D/A
D/A
Balance
TouchMix-16 Only
Auxes 7/8 & 9/10
TouchMix-30 Auxes 11/12 & 13/14
TouchMix-8 Auxes 3/4

QSC touchmix-30 pro Specifications

General

Type	Digital Mixer
Channels	32
USB Interface	Yes
Effects Processors	4
Wireless Control	Yes
Phantom Power	Yes
Outputs - Aux	6
EQ Bands	4-band parametric
Computer Connectivity	USB
A/D Resolution	24-bit
Sampling Rate	48kHz
Bit Depth	24-bit
Wireless Control Platforms	iOS, Android
Aux Outputs	6
Main Outputs	2
Touchscreen	Yes
Headphones	1
Effects	Reverb, Delay, Chorus
USB	2.0
Power Source	AC
Display	10-inch Touchscreen
Stereo Line Inputs	2 stereo pairs
Inputs - Line	2 stereo pairs
