54
1001108-01-F
O C − C / L
When set as a Limiter, prevents the audio level from
exceeding a preset threshold.
1.

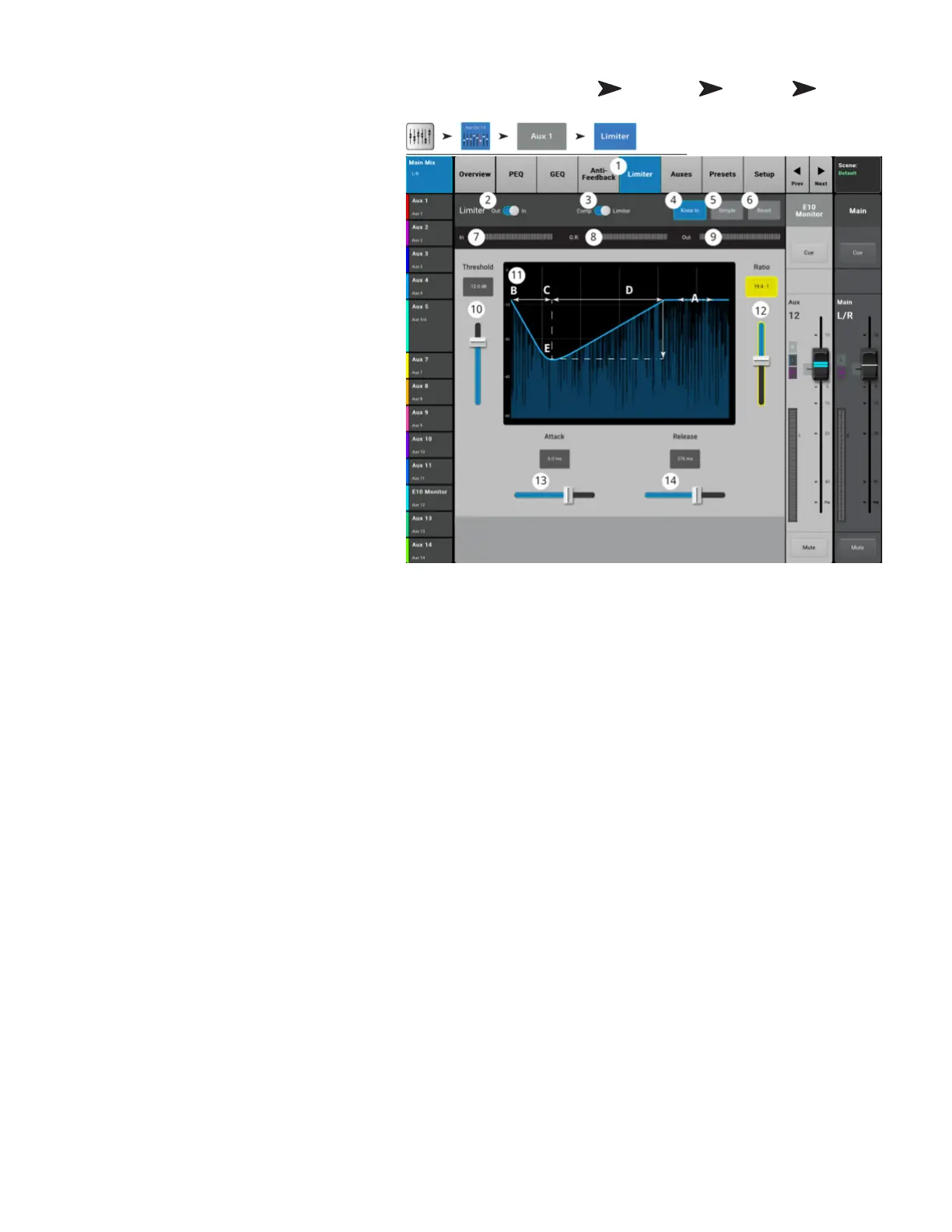

Comp / Limiter tab – Selects the Comp /
Limiter screen. Note that the label on this tab will change
depending on the setting of the Comp/Limiter switch.
2.
Comp / Limiter In/Out switch
– Engages or disengages the compressor or
limiter. Note that the label on this tab will change
depending on th setting of the Comp/Limiter
switch.
3.
Comp/Limit switch –
Selects
Compressor or Limiter mode. If “Comp” is
selected, the processor is identical in operation
to the input channel compressors.
4.
Knee In button
– The knee determines
whether the compressor/limiter transitions
abruptly or gradually as the threshold iscrossed.
5.
Simple button
– Hides all controls except:
• Limiter In button
• Simple button
• Reset button
6.
Reset button
– Sets all the Limiter
controls to their factory default position.
7.
In meter
– RMS input signal level
8.
GR meter
– Gain Reduction – indicates how much the signal level has been reduced by the Limiter.
9.
Out meter
– Output signal level
10.
Threshold slider –
Sets the point at which the compressor/limiter will begin to reduce signal level.
11.
Limiter graph
– When the Limiter is engaged, the trace is blue.
•
Threshold
(A) – The level at which limiting begins.
•
Attack time
(B to C) – The time it takes for the limiter to reach maximum limiting after the input exceeds the threshold level.
•
Ratio
(A to E) – The amount of limiting applied to the signal.
•
Release time
(C to D) – The time it takes for the limited signal to rise to the threshold level once the input level no longer exceeds the
threshold.
• Vertical scale = dB
12.
Ratio slider
– Sets the ratio of input level change to output level change when the signal exceeds the threshold.
13.
Attack slider
– Adjusts how quickly the processor reacts to a signal that exceeds thethreshold.
14.
Release slider
– Adjusts how quickly the processor stops compressing or limiting when signal falls below the Threshold.
Home
Touch Aux Out
1–8 or 9–14
Touch an Aux
Channel
Touch the
Limiter Tab
To Next Page
