QSC touchmix-30 pro User Manual

88
1001108-01-F

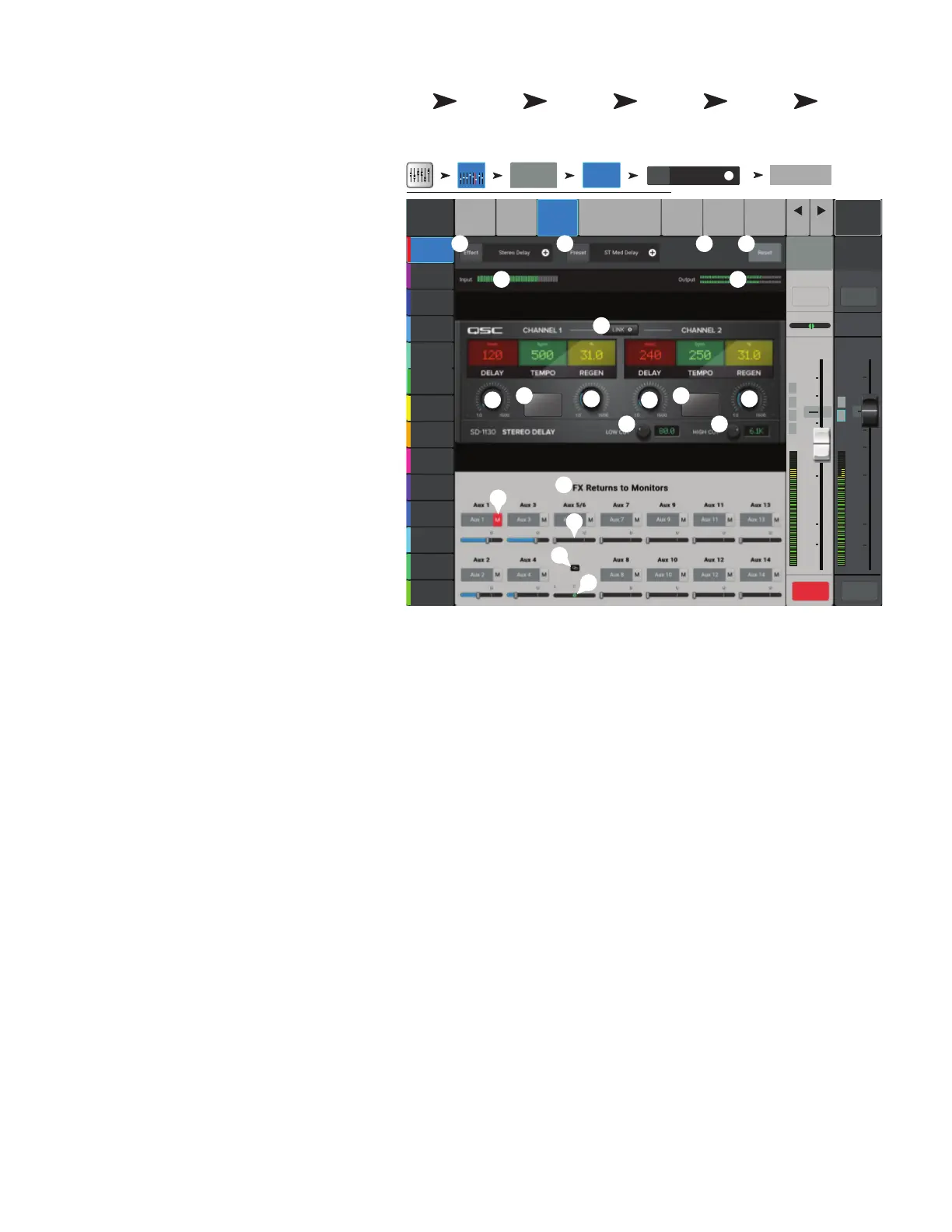

FX P – M  S D
These effects delay the audio signal to create echo and
similar effects. Controls for the stereo delay may be
linked or operatedindependently.
Input channels and Sub Groups are able to send to
theeffect.
1. Effect – Touch to select a different Effect Type.
2. Preset – Displays the name of the current
preset. Touch to access the preset library.
3.
4. Reset – Returns processor and Aux Send
controls to their default settings.
5. Input – Displays the incoming audio level
before the Effect.
6. Output – Displays the post-effect audio
level.
7. Link Button – (Stereo Delay only)
– Links all controls of both channels. Channel
two is set to the same level as Channel one.
8. Delay Knob – Sets the delay time in
milliseconds.
9. Tap Tempo Button – Sets the tempo
of the regenerations by tapping. Touch the Tap
Tempo button, then tap the Master Control knob
at a steadyrate.
10. Regen Knob – Adjusts the amount of
delayed signal that is sent back to the input. At 0% only the first echo will be heard. At 99% the echo will repeat indefinitely at the
samelevel.
11. Lo Cut Knob – Attenuates, or “cuts” frequencies below this frequency setting. Range is 20 Hz to2 kHz.
12. Hi Cut Knob – Attenuates, or “cuts” frequencies above this frequency setting. Range is 200 Hz to 20 kHz.
13. FX Returns to Monitors – Sliders adjust the level of the effect heard in the performers’ monitors.
a. M – Indicates the Aux Send for the Effect is muted from the Auxes tab.
b. Send Slider – Sets the level of the Effect to the Aux output.
c. Link icon – Indicates the Auxes are linked.
d. Aux Pan control – Pans between the two linked Auxes.
Home
Touch the
FX Masters
Bank
Touch an
FX Channel
Touch the
Effect Tab
Touch Effect
Pull-Down
Touch Stereo
or Mono
Delay
Joe’s Monitor
Aux 1
Aux 2
Aux 2
Aux 3
Aux 3
Aux 4
Aux 4
Aux 5
Aux 5
Aux 6
Aux 6
Aux 7
Aux 7
Aux 8
Aux 8
Aux 9
Aux 9
Aux 10
Aux 10
Aux 11
Aux 11
Aux 12
Aux 12
Aux 13
Aux 13
Aux 14
Aux 14
Overview Effect Auxes Setup EQ Presets
Default
Scene:
Main Mix
L/R
Prev
Next
L
G
48
L
F
LR
1 2
3 4
5 6
7 8
∞
∞
Cue
L C R
Mic
1
10
5
u
5
10
20
0
40
10
10
5
u
5
10
20
0
40
10
In 1 Main
Cue
Main
L/R
Mute Mute
Tap
Tempo
Tap
Tempo
Inputs 1-8
FX 1
Effect
FX Masters
Stereo or Mono
Delay
Effect None
+
2 4
5
1
10
9
7
8
11
6
12
3
9
8
10
13
a
b
c
d

QSC touchmix-30 pro Specifications

General

Type	Digital Mixer
Channels	32
USB Interface	Yes
Effects Processors	4
Wireless Control	Yes
Phantom Power	Yes
Outputs - Aux	6
EQ Bands	4-band parametric
Computer Connectivity	USB
A/D Resolution	24-bit
Sampling Rate	48kHz
Bit Depth	24-bit
Wireless Control Platforms	iOS, Android
Aux Outputs	6
Main Outputs	2
Touchscreen	Yes
Headphones	1
Effects	Reverb, Delay, Chorus
USB	2.0
Power Source	AC
Display	10-inch Touchscreen
Stereo Line Inputs	2 stereo pairs
Inputs - Line	2 stereo pairs
