Wired Network Setup: Auto IP Address (DHCP)
IMPORTANT!: For
TouchMix-30 Pro, connect an Ethernet
router to the mixer’s RJ45 jack.
For TouchMix-8 and TouchMix-16
connect a compatible USB to Ethernet
adapter to the mixer’s USB port. (for
compatible adapters, visit qsc.com and
search for “Ethernet”.
Using a
Wired Network Setup
with a
Auto IP Address (DHCP)
provides wired
communications between a TouchMix and a wireless
Ethernet router. The DHCP provides an unused IP
address for the TouchMix. It may be different each time
you connect to the network.
Mixer Name:
– Enter a name for the network.
1.
Network Type
: – Set to
Wired
.
2. Select
Auto IP Address (DHCP)
to set
the IP Address automatically.
3. The mixer searches for an IP address from the
network and enters it in the
Assigned IP
Address
field.
4.
Connection Status:
a.
Connected
– Displays to confirm
successful connection to the network. External
devices may now login to the mixer using the
external network Name and Password.
b.
No Cable Detected
– Mixer is not connected to a network.
5.
Apply
– Touch apply and the mixer will configure the network connections.

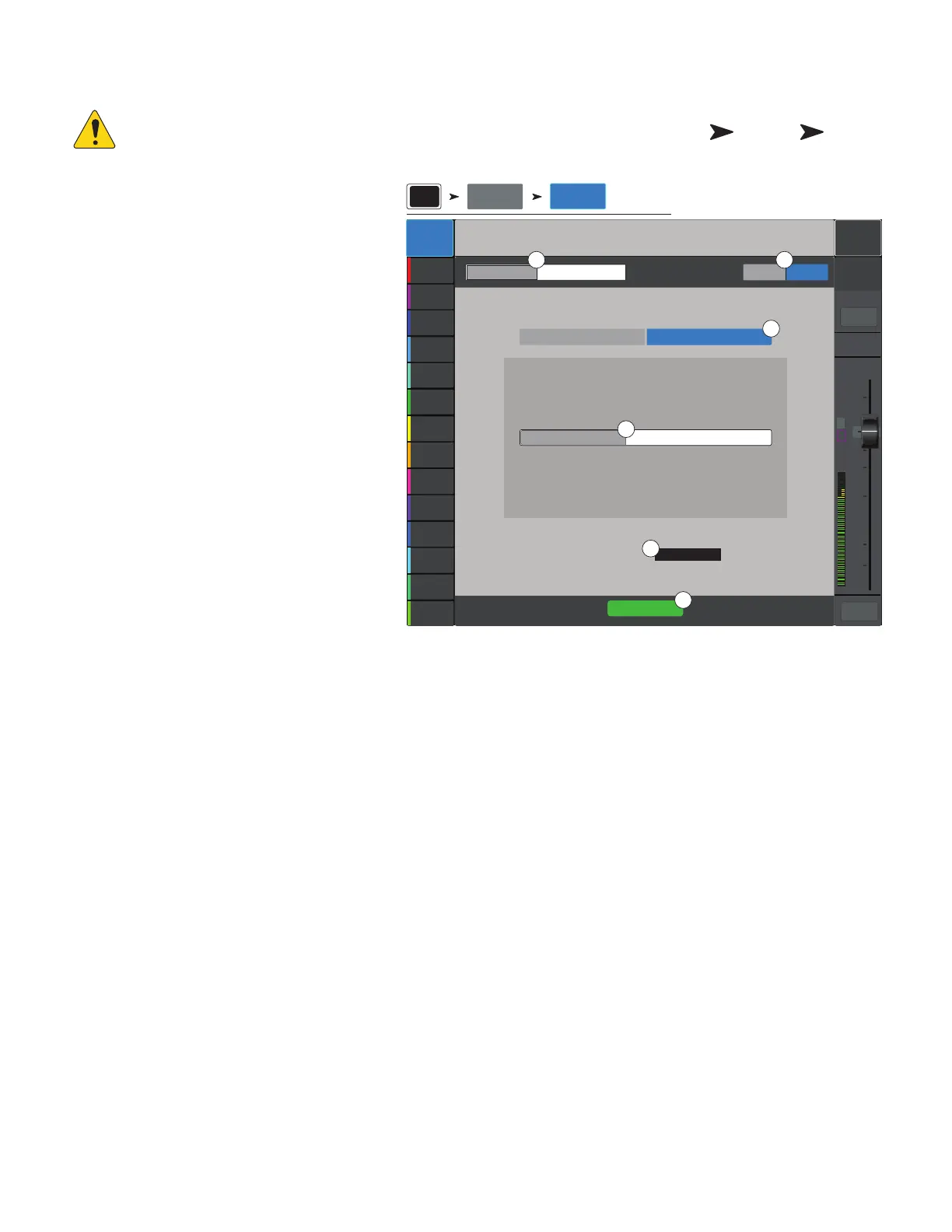

Press Menu
Touch
Network
Touch Wired
