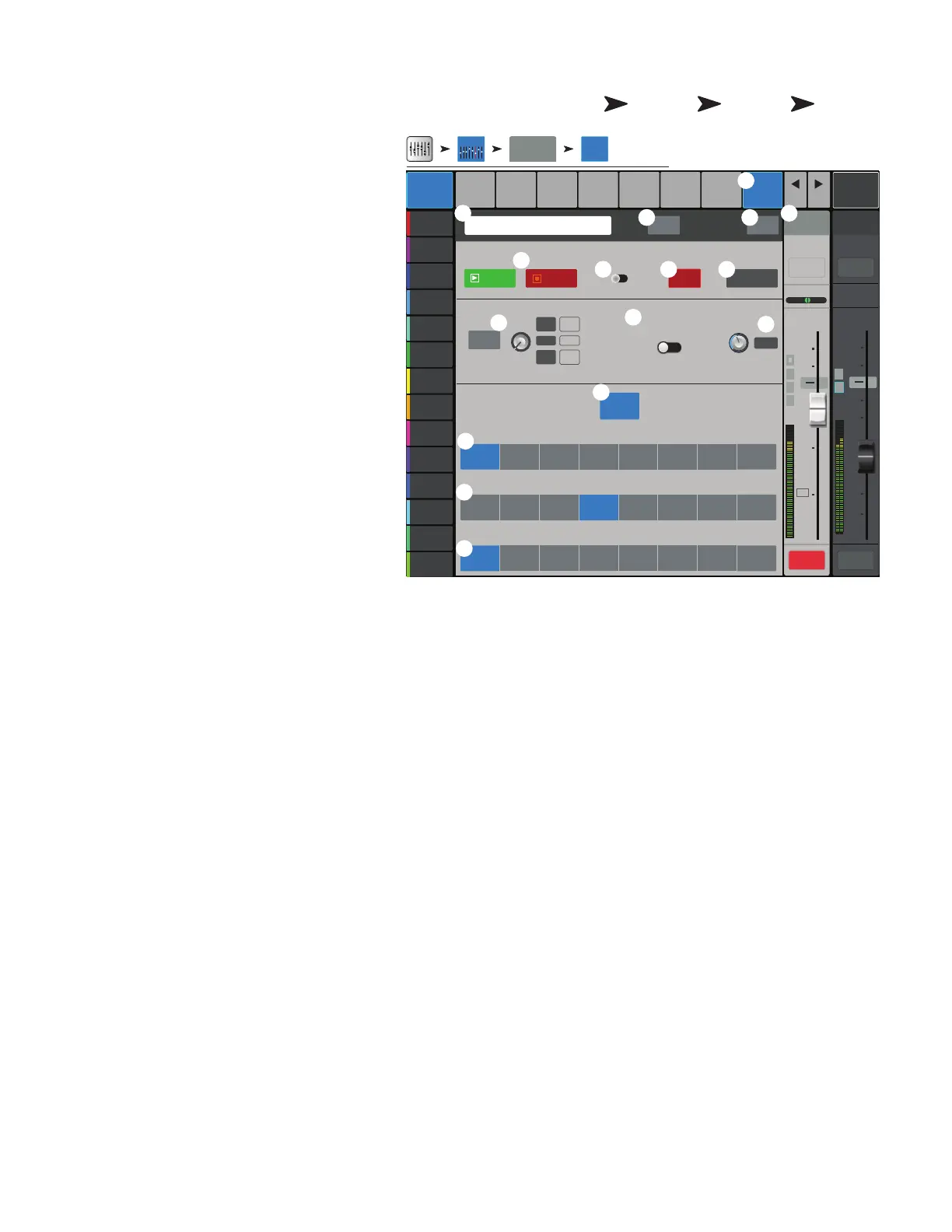

Channel Setup is provided for all input channels. Line
input channels do not have Phantom power controls.
1.
Setup
– Selects the Setup screen
2.
Name
– Displays the name of the channel.
Touch to display a keyboard and rename the
channel.
3.
Link
– Links adjacent channels. The odd
numbered channel settings are copied to
the even numbered channel. Pan settings
are mirrored. Onlyodd>even pairings are
supported – even > odd pairings arenot.
4.
Reset
– Resets the controls for this channel
to factory defaults.
5.
Playback and Recording
When one of these buttons is engaged, the other is not
displayed. The example above is for illustration only.
•
Digital Input
– (TouchMix-30 Pro only)
Selects the channel’s analog or digital input as
the signal source. The digital source may be
from a USB recording session or from a DAW
(see Rec/Playback for more information). Green
= digital, gray = analog.
•
Recording
(Arm) – When engaged, the
audio on this channel will be recorded on the
USB Drive. Available only when the External Recording & Playback Mode is set to Multitrack USB Drive.
6.
Polarity
– Touch to change polarity of the channel output.
7.
Mic Phantom
– Turns 48V phantom power on/off for the channel (microphone inputs only).
8.
Patch Matrix Channel –
(TouchMix-30 Pro only) Displays the current setting for this channel in the Patch Matrix. If another
channel has been patched to this channel, the field would display the patched channel’s number.
9.
Delay
– Delays the input signal from 0.00 to 100 milliseconds. Touch the In button to activate the delay.
10.
Channel Safe During Scene Recall –
Setting this switch to Safe, protects the channel controls from being changed when
a Scene is recalled.
11.
Digital Gain
– Applies +/- 15 dB of digital gain to the channel signal independently of the channel’s analog gain trim. The setting of
this control is stored and recalled with a scene or preset. When Track is selected as the source, the control applies to the digital input.
12.
Main L/R
– Assigns the channel’s output to the Main Left / Right mix. The factory default is on – assigned to Main L/R.
13.
Sub Groups
– (1 through 8 – TouchMix-30 Pro only) – Assigns the output of the channel to one or more of the eight Sub Groups.
User-assigned names display on the buttons. See the Sub Groups topic.
14.
DCA Group
(1 through 8) – Assigns the channel to DCA Groups. User-assigned DCA Group names display on the buttons. See the
DCA Groups topic.
15.
Mute Groups
(1 through 8) – Assigns the channel to Mute Groups. User-assigned Mute Group names display on the buttons. See
the Mute Groups topic.
