QSC touchmix-30 pro User Manual

85
1001108-01-F
FX Processor
FX P – B C
The Chorus FX Varies the pitch of a signal at a steady
rate to “thicken” asound.
You can access the Effects from the Inputs and Sub
Group banks.

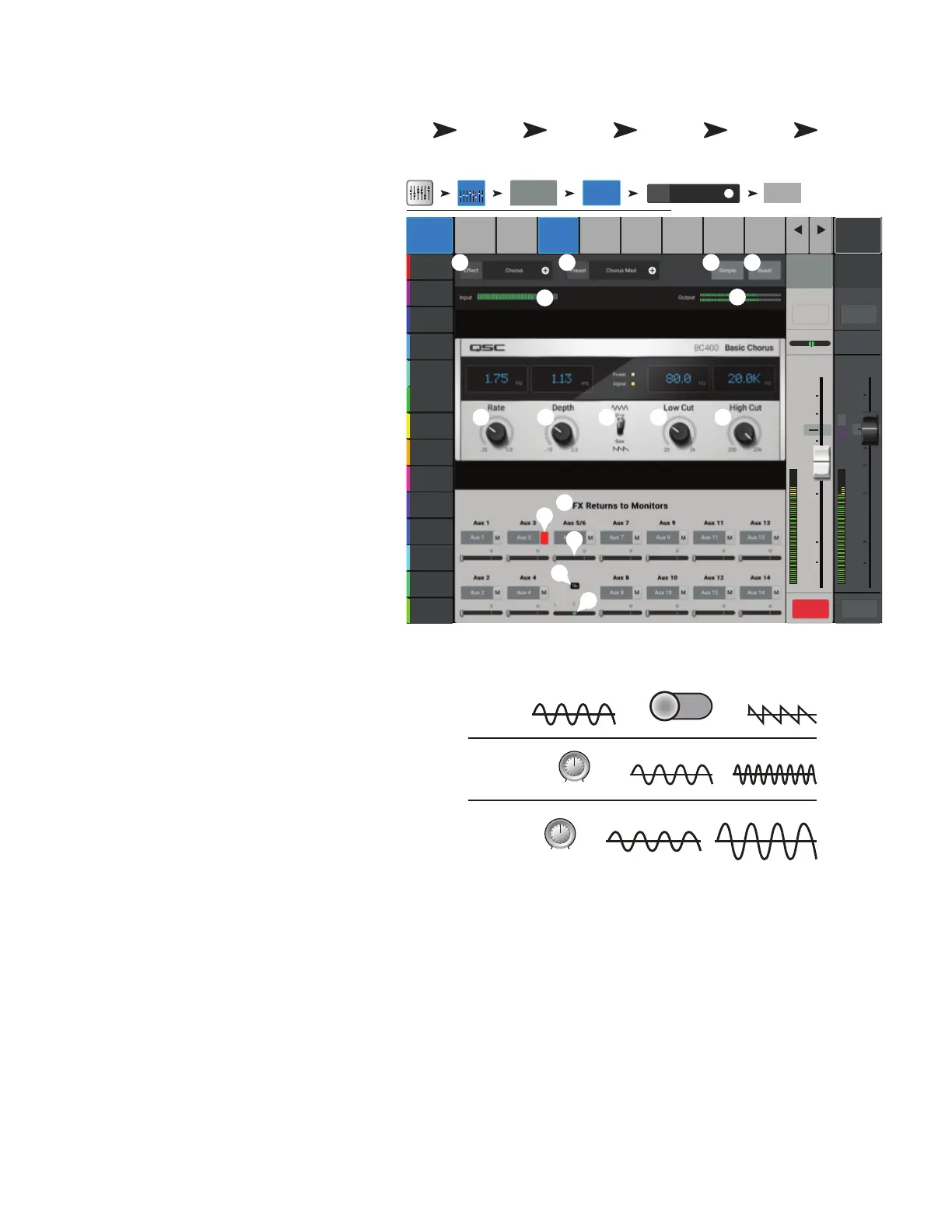

1. Effect – Touch to select an Effect Type.
2. Preset – Name of the current preset. Touch
to access the library of Presets.
3. Simple button – Turns Simple mode on
and off. Hides all but the essential controls on
the selected FX. Not present on Mono and
Stereo Delay effects.
4. Reset button – Returns processor and
Aux Send controls to their default settings.
5. Input meter – Displays the incoming audio
level before the Effect.
6. Output meter – Display the audio level
after the Effect.
7. LFO Rate knob – Determines the rate at
which the pitch will be varied.
8. LFO Depth knob – Controls the amount of
modulation applied to the audiosignal.
9. LFO Type switch – Selects how the pitch
will be varied.
10. Lo Cut knob – Attenuates, or “cuts”
frequencies below this frequency setting. Range is 20 Hz to2kHz.
11. Hi Cut knob – Attenuates, or “cuts” frequencies above
this frequency setting. Range is 200 Hz to20kHz.
12. FX Returns to Monitors
a. M – Indicates the Aux Send for the Effect is muted from the
Auxes tab.
b. Send Slider – Sets the level of the Effect to the Aux output,
typically the performer’s monitor.
c. Link icon – Indicates the Auxes are linked.
d. Aux Pan control – Pans between the two linked Auxes.
Home
Touch the
FX Masters
Bank
Touch an
FX Channel
Touch the
Effect Tab
Touch
Effect Pull-
Down
Touch Chorus
Joe’s Monitor
Aux 1
Aux 2
Aux 2
Aux 3
Aux 3
Aux 4
Aux 4
Aux 5
Aux 5
Aux 6
Aux 6
Aux 7
Aux 7
Aux 8
Aux 8
Aux 9
Aux 9
Aux 10
Aux 10
Aux 11
Aux 11
Aux 12
Aux 12
Aux 13
Aux 13
Aux 14
Aux 14
Main Mix
L/R
Default
Scene:
Overview Effect Auxes Setup EQ Presets
L
G
48
L
AF
Prev
Next
∞
∞
M
Cue
L C R
FX
1
10
5
u
5
10
20
0
40
10
10
5
u
5
10
20
0
40
10
FX 1 Main
Cue
Main
L/R
Mute Mute
Inputs 1-8
FX 1
Effect
FX Masters
Effect None
+
Chorus
2 4
5
1
1097 8 11
6
12
3
a
b
c
d
.1 3.5
Less Depth More Depth
Depth
.35 Hz 5.0 Hz
Slower Faster
Rate
Sine
Saw
Type
