Chapter 7: Status
Hardware
Quantum DXi4700 User’s Guide 167
Component The number of the Fibre Channel port.
Value - The throughput capacity of the port (if connected).
Status The status of the port.
l Up - (Green) The port is connected.
l Down - (Green) The port is not connected.
Network Ports
The Network Ports page allows you to view information about Ethernet ports in the system. The DXi4700
includes three or more Ethernet ports (depending on the configuration).
To access the Network Ports page, on the Details page, click the Network Ports tab (see Figure 108
below).

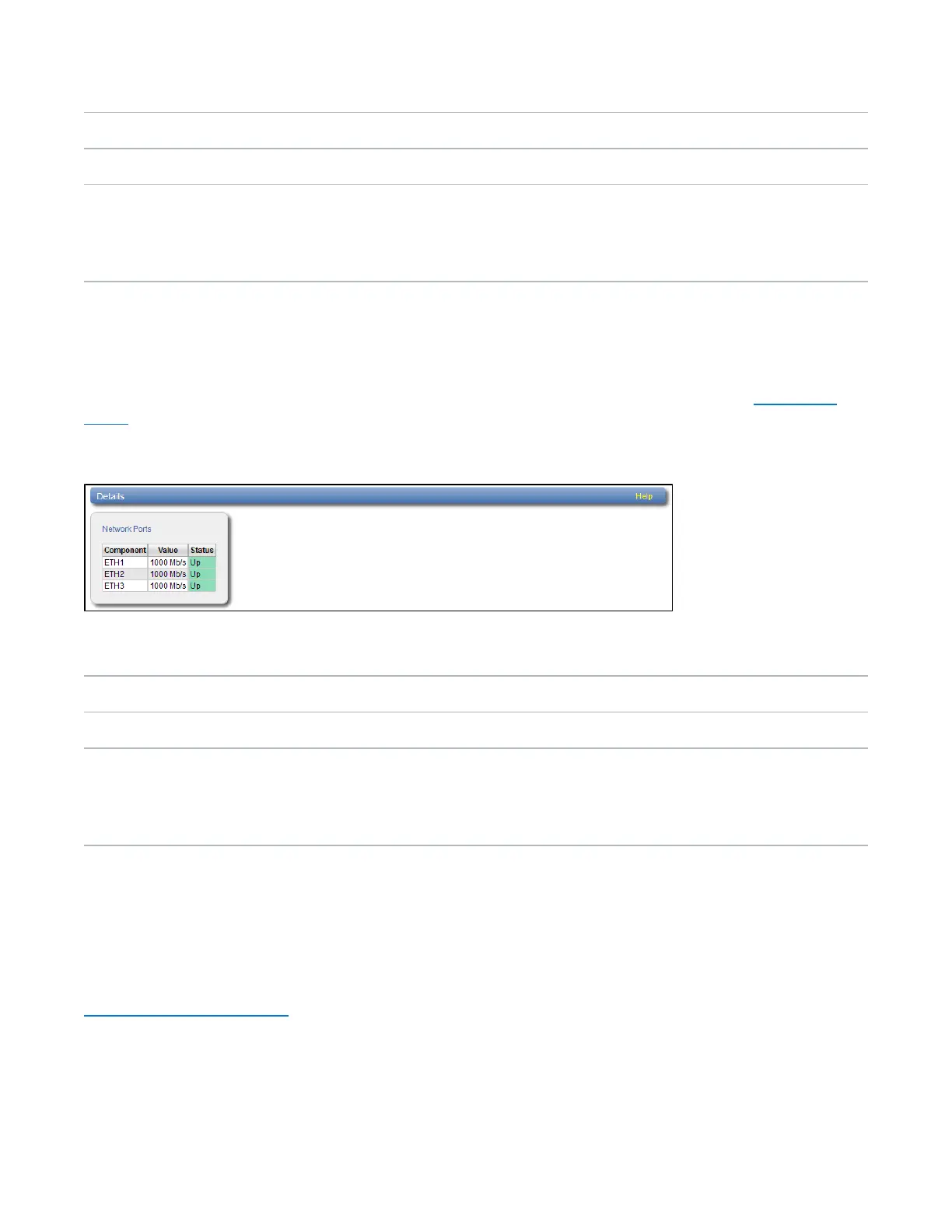

Figure 108: Network Ports Page
The Network Ports page displays the following information:
Component The number of Ethernet port.
Value The speed of the port in Mb/s
Status The status of the Ethernet port.
l Up - (Green) The port is connected.
l Down - (Green) The port is not connected.
Firmware Version
The Firmware Version page allows you to view information about hardware components installed in the
DXi4700, such as the firmware version, hardware revision, and manufacturer.
To access the Firmware Version page, on the Hardware page, click the Firmware Version tab (see
Figure 109 on the next page).
