Chapter 2: Basic Operations
DXi4700 Hard Drive Carrier Indicators
Quantum DXi4700 User’s Guide 52
DXi4700 Hard Drive Carrier Indicators
Each DXi4700 drive carrier in the Node module has two LED indicators (see Figure 29 below):
LED Indicator Activity
Drive activity indicator (green) l Flashing - Indicates hard disk drive activity.
Drive status indicator (green and amber) l Off - Drive ready for insertion or removal
Note: The drive status indicator remains off until
all drives are initialized after system power is
applied. Drives are not ready for insertion or
removal during this time.
l Blinks green two times per second - Identify
drive/preparing for removal
l Blinks green, amber, and off - Drive predicted
failure
l Blinks amber four times per second - Drive failed
l Blinks green slowly - Drive rebuilding
l Steady green - Drive online
l Blinks green three seconds, amber three
seconds, and off six seconds - Rebuild aborted
Note: If a drive fails, you will be notified by a service ticket in the remote management console (see
Service Tickets on page 183).
Caution: Do not remove a drive that has not failed. Instead, only remove a drive that has failed. If you
accidentally remove a good drive, wait 30 seconds before reinserting the drive.

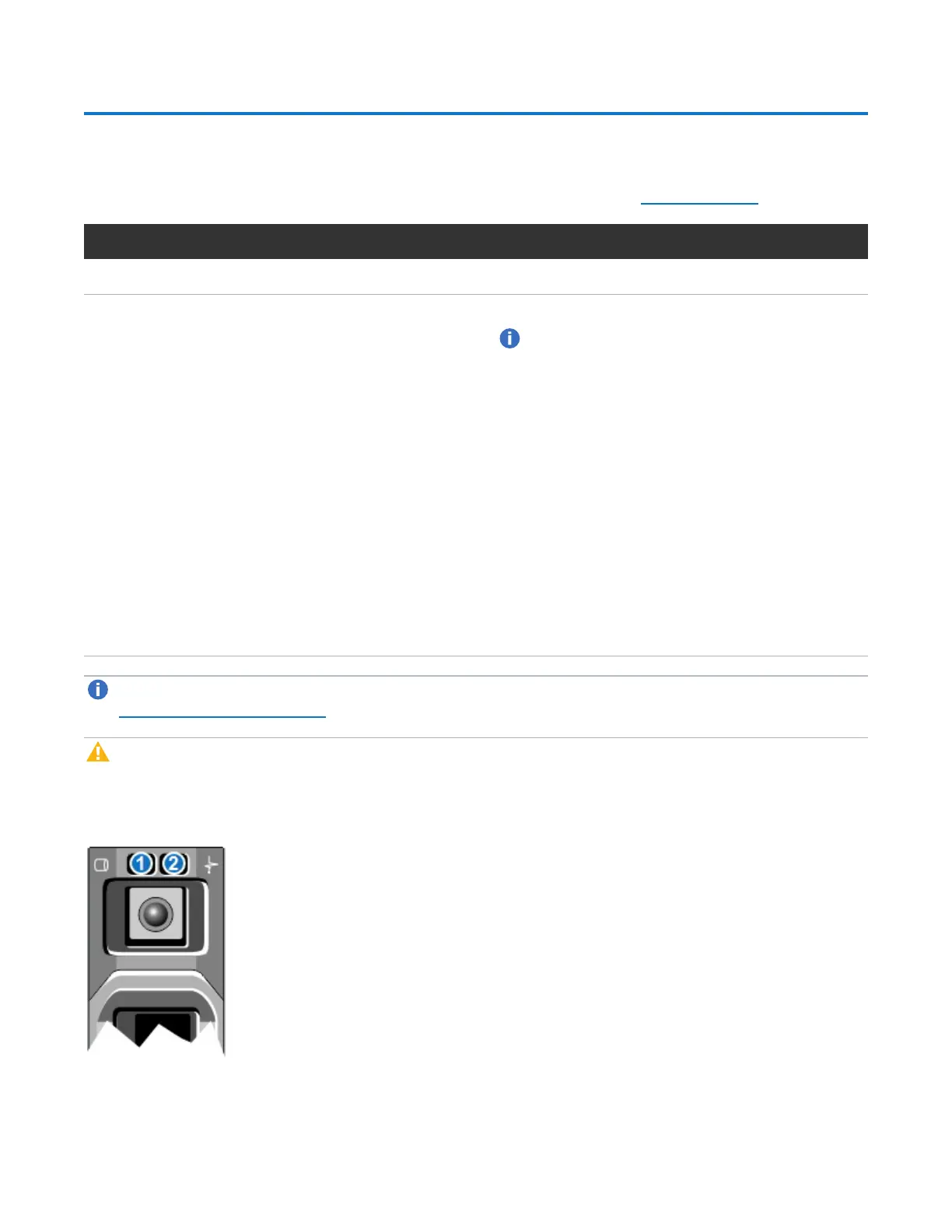

Figure 29: DXi4700 Drive Carrier LEDs
1 - Drive activity indicator (green) 2 - Drive status indicator (green and amber)
