Chapter 2: Basic Operations
DXi4700 Node
Quantum DXi4700 User’s Guide 43

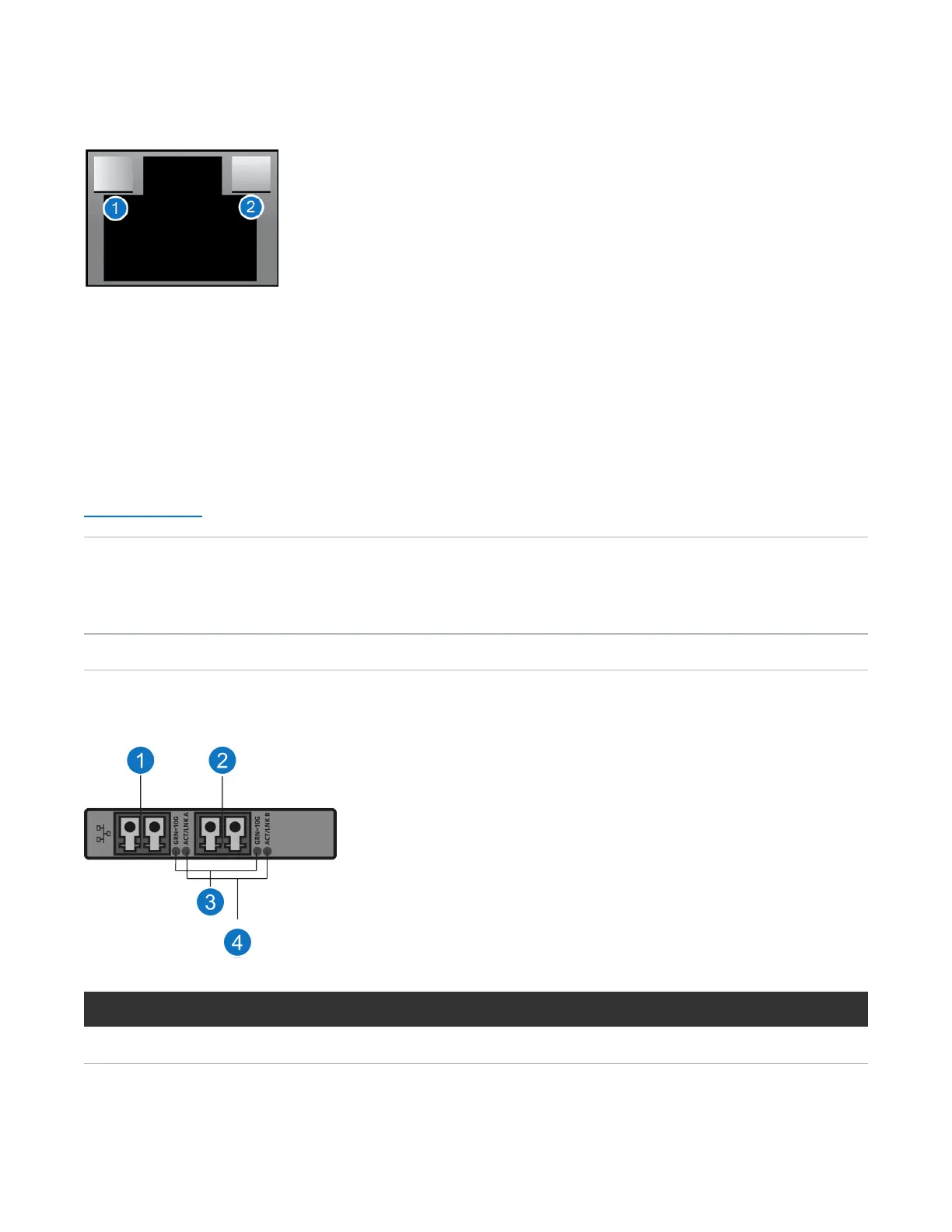

Figure 19: DXi4700 Node - 1 GbE Ethernet Port LEDs
1 - Link Indicator 2 - Activity Indicator
DXi4700 Node 10 GbE Ethernet Port Indicators
Depending on the configuration, Quantum DXi4700 systems include a 10 GbE adapter card (dual optical or
Twinax ports).
The 10 GbE adapter with dual optical or Twinax ports has two LED indicators for each 10 GbE port (see
Figure 20 below):
Link indicator l Off - Indicates the port is not connected to the network.
l Green - Indicates the port is connected to the network at 10Gbps speed.
l Yellow - Indicates the port is connected to the network at 1 Gbps speed.
Activity Indicator l Blinking - Indicates network data is being sent or received.
Figure 20: DXi4700 - Optional 10 GbE Port LEDs (Optical or Twinax)
Item Description
1 Port 1
