Chapter 2: Basic Operations
DXi4700 Node
Quantum DXi4700 User’s Guide 44
Item Description
2 Port 2
3 Link indicators
4 Activity Indicators
DXi4700 Node 10 GBase-T Ethernet Port Indicators
Each 10 GBase-T port on the DXi4700 Node rear panel has two LED indicators (see Figure 21 below):
Link indicator l Off - Indicates the port is not connected to the network.
l Green - Indicates the port is connected to the network at maximum speed (10
Gbps).
l Amber - Indicates the port is connected to the network at less than its maximum
port speed.
Activity Indicator l Blinking green - Indicates network data is being sent or received.

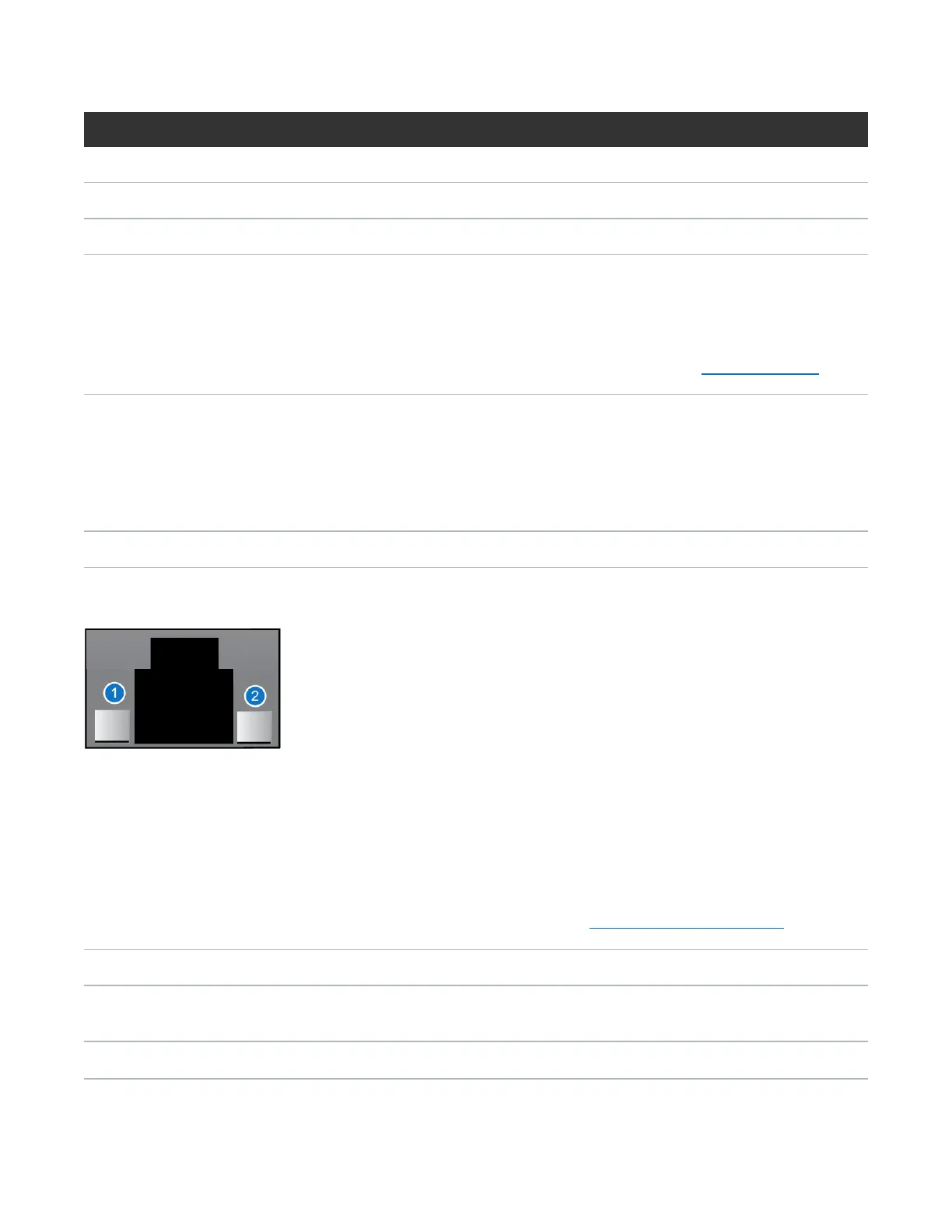

Figure 21: DXi4700 - 10 GBase-T Ethernet Port LEDs
1 - Activity Indicator 2 - Link Indicator
DXi4700 Node Power Supply Indicators
Each DXi4700 Node power supply has an illuminated translucent handle that serves as an indicator to show
whether power is present or whether a power fault has occurred (see Figure 22 on the next page):
Not lit Indicates power is not connected.
Green Indicates a valid power source is connected to the power supply and that the power supply
is operational.
Flashing amber Indicates a problem with the power supply.
