Replacing the Maintenance Kit
37
2

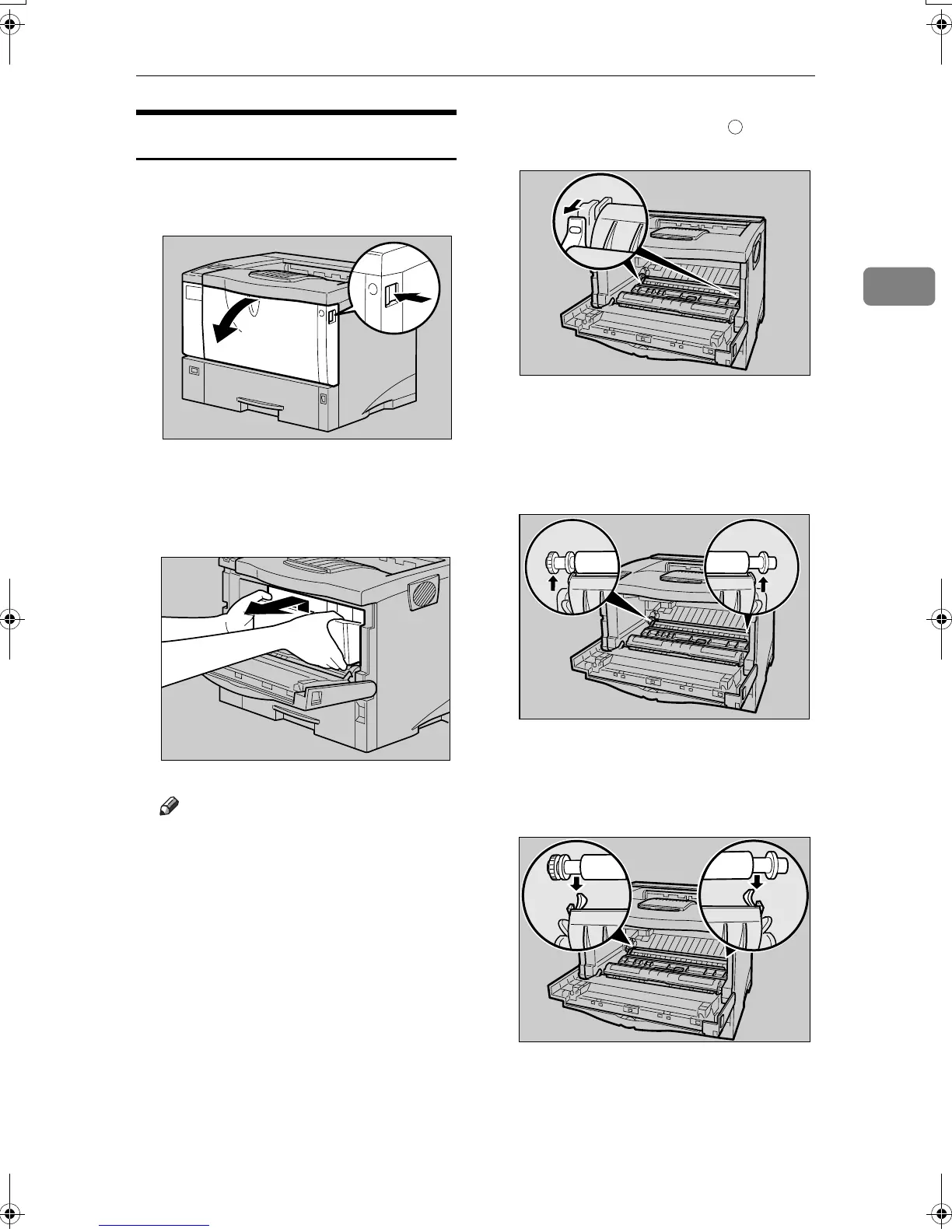

Replacing the Transfer Roller
A Open the front cover by pushing
the front cover release button.
B Pull the toner cartridge out of the
printer, while lifting the front
side.
Note
❒ Be sure to place the used car-
tridge on the level place.
C To avoid making your hands
dirty with toner from the transfer
roller, wear the gloves included
in the maintenance kit.
D Hold the lock levers (“ ” parts),
and then pull them.
E Hold the green parts of the roller
on both sides, and then remove
the roller from the printer as
shown in the illustration.
F Insert the new transfer roller on
the socket with the gear of the
roller positioned on the left.
AGN020S
AGN022S
ZKGM200E
ZKGM210E
ZKGM220E
KirP4GB_Mainte-F5_FM_forPaper.book Page 37 Wednesday, December 8, 2004 6:13 PM
To Next Page
