Replacing the Maintenance Kit
41
2
Replacing the Fusing Unit
CAUTION:

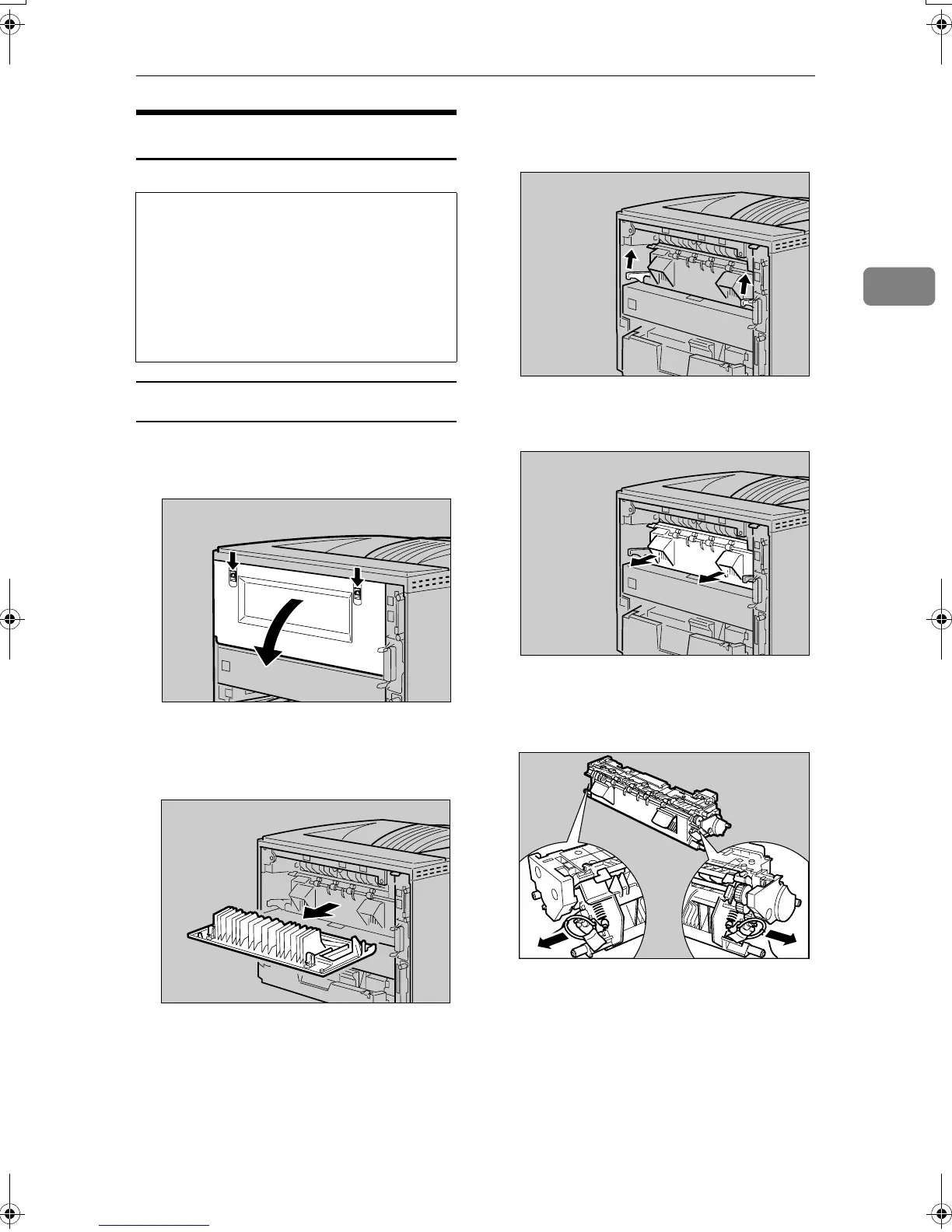

Replacing the fusing unit
A Open the rear cover by pushing
the two knobs.
B Remove the rear cover in a hori-
zontal direction.
C Lift the lock levers of the fusing
unit as shown in the illustration.
D Pull the fusing unit out.
E Pull out the pins on both sides of
the new fusing unit.
• The fusing unit becomes very
hot. When installing the new fus-
ing unit, turn off the printer and
wait about an hour. After that, in-
stall the new fusing unit. Not
waiting for the unit to cool down
can result in a burn.
AGN004S
ZKGX220E
AGN006S
AGN007S
ZKGM010E
