1. Guide to the Printer

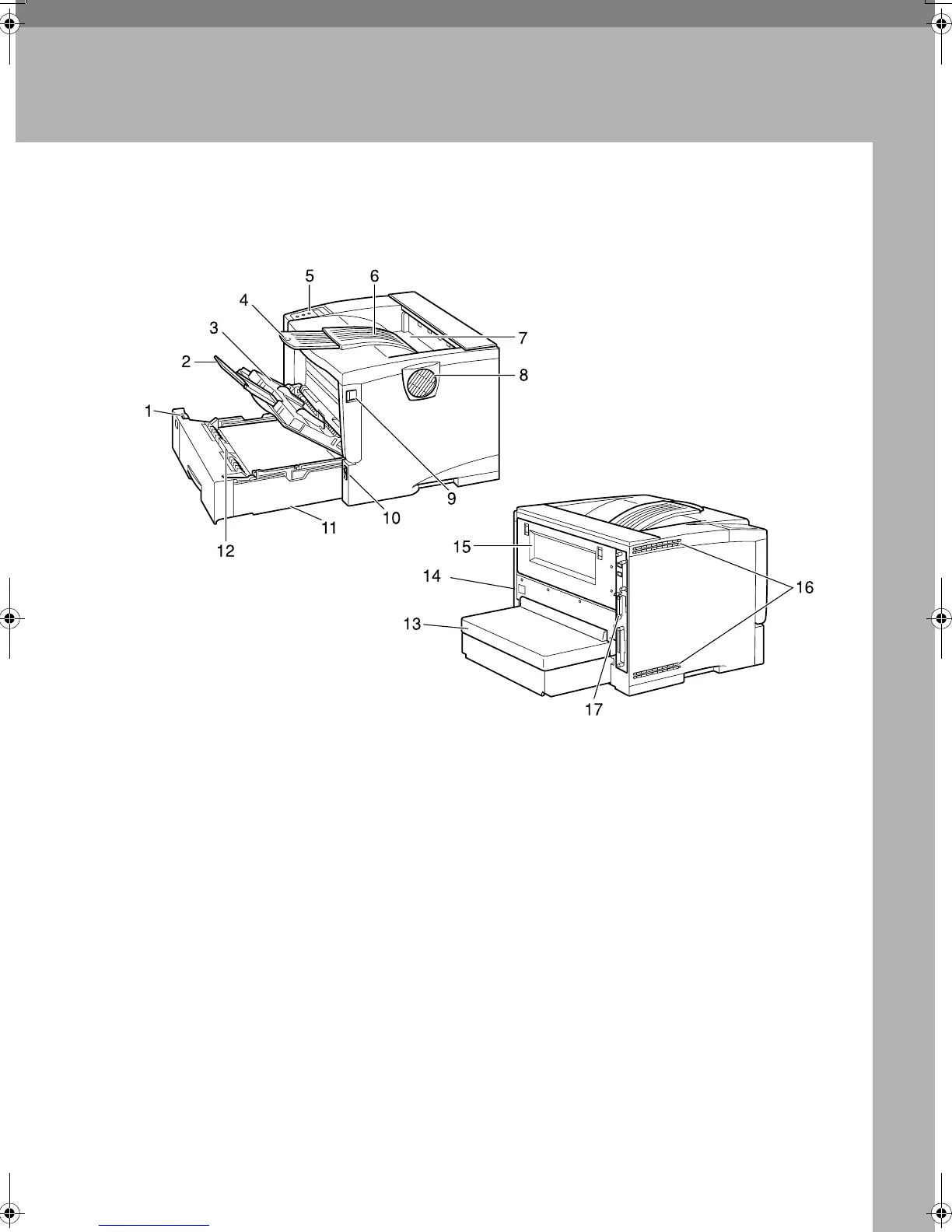

Exterior
1. Paper Size Dial
Adjust this dial to match the size and feed
direction of the paper loaded in the paper
tray.
2. Bypass Tray Extension
Pull out this extension to load paper into
the Bypass Tray when its length is longer
than A4 L or 8
1
/
2
” × 11”L.
3. Bypass Tray
Use to print onto thick paper, OHP trans-
parencies, adhesive labels, custom size
paper, envelopes as well as plain paper.
When printing on custom paper size,
printer driver settings are required.
Up to 100 sheets of plain paper (80 g/m
2
,
20 lb.) can be loaded.
See “Paper and Other Media Supported
by this Printer” and “Loading Paper in
the Bypass Tray”, Maintenance Guide.
4. Output Tray Extension
Pull out this extension when printing on
long paper.
5. Control Panel
Contains keys for the printer operation
and a panel display that shows the print-
er status.
6. Output Tray (Standard Tray)
Printed output is stacked here with the
print side facing down.
7. Paper Exit Cover
Open this cover to remove misfed paper.
AGN010S
