Inside
13
1

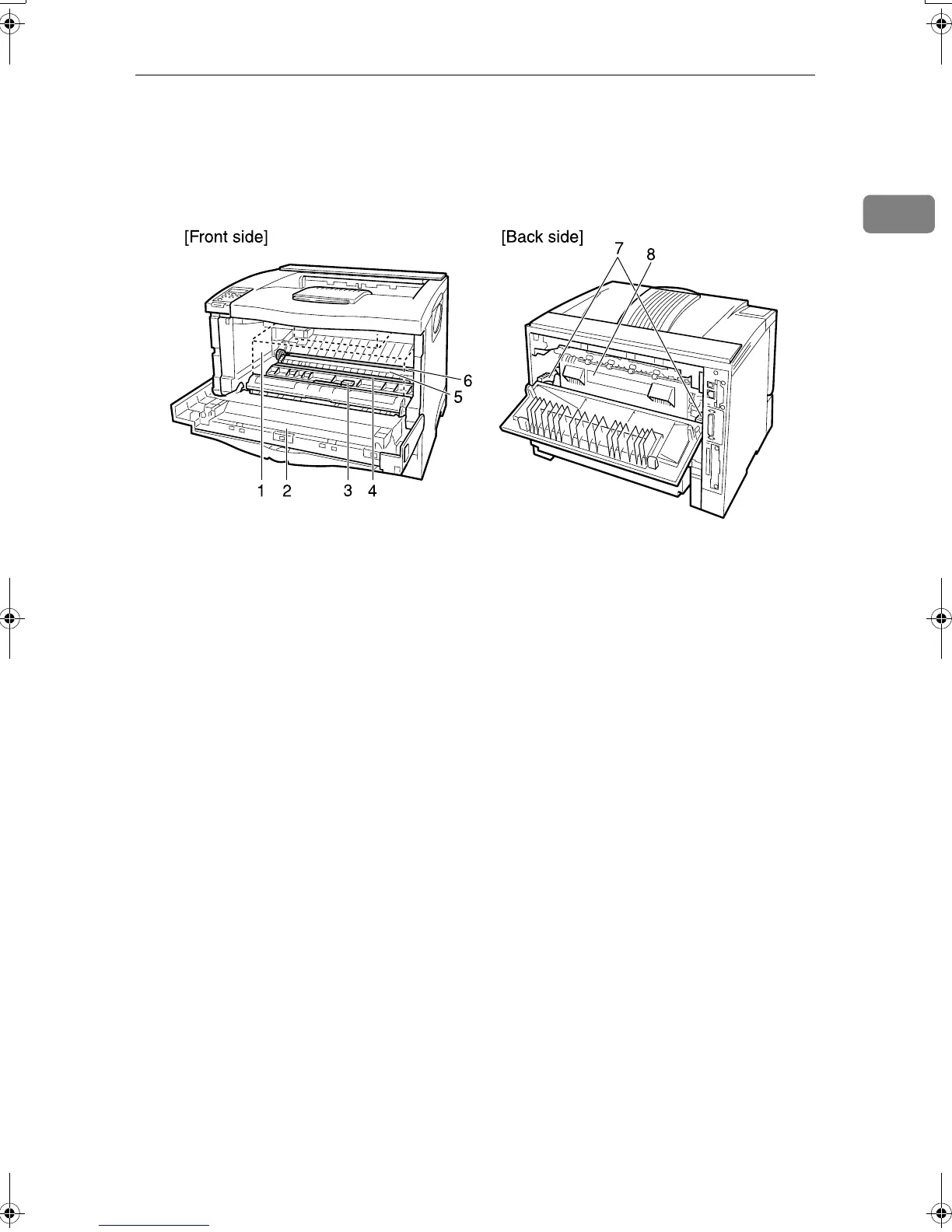

Inside
1. Toner Cartridge
Includes toner and a photo conductor
unit.
When “Replace Toner Cartridge” ap-
pears on the panel display, replace this
unit.
2. Front Cover
Open this cover when accessing the in-
side of the printer.
3. Guide Board
Open this board to remove misfed paper.
4. Registration Roller
Feeds the paper. If it becomes dirty, clean
it.
See “Cleaning the Registration Roller”,
Maintenance Guide.
5. Transfer Roller Cover
Open this cover when replacing a trans-
fer roller.
6. Transfer Roller
When “Replace Maintenance Kit” ap-
pears on the panel display, replace this
roller.
7. Fusing Unit Lock Levers
Lift these levers when replacing the fus-
ing unit.
8. Fusing Unit
Fuses the image onto paper.
When “Replace Maintenance Kit” ap-
pears on the panel display, replace this
unit.
AGN044S
