8. Tray 1
This tray can hold up to 250 sheets of plain paper.
9. Bypass Tray
This tray can hold up to 50 sheets of plain paper.
10. Output Tray
Printed paper is output here. Up to 125 sheets of plain paper can be stacked here.
11. USB Flash Disk Port
Insert a USB flash disk to store scanned files using the Scan to USB function.
12. Control Panel
Contains a screen and keys for machine control.
13. Exposure Glass
Place originals here sheet by sheet.
14. Cover for the Exposure Glass
Open this cover to place originals on the exposure glass.

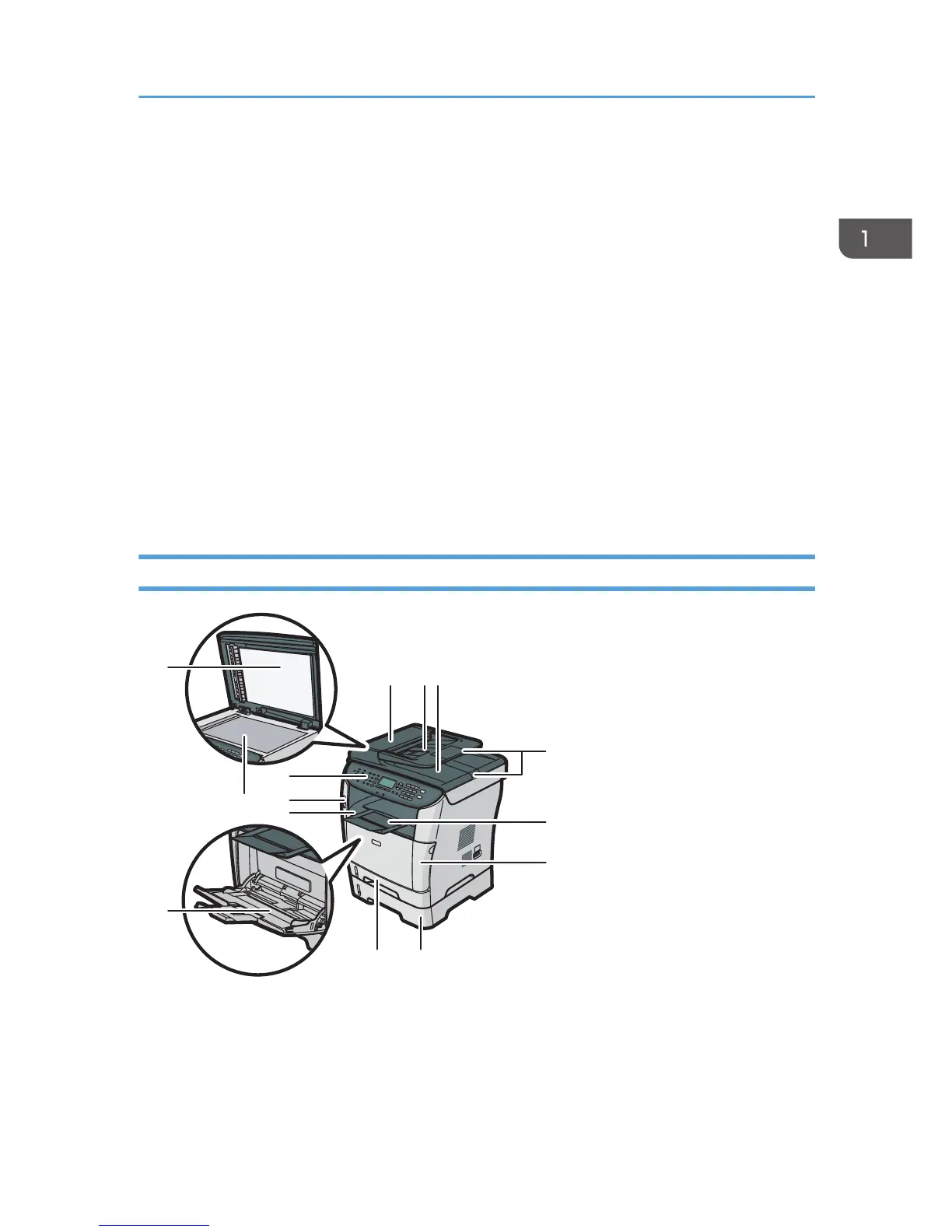

Exterior: Front View (Type 1 model)
1. ADF (Auto Document Feeder) Cover
Open this cover to remove originals jammed in the ADF.
2. Input Tray for the ADF
Place stacks of originals here. They will feed in automatically. This tray can hold up to 35 sheets of plain
paper.
Guide to Components
37
