6.11.3 Setpoints
The controlled boiler temperature setpoint can be limited by Setpoint min and Setpoint
max. These limitations can be considered to be a protective function for the boiler. In
normal operation, minimum limitation of the boiler temperature is the lower limit value
for the controlled boiler temperature setpoint, depending on the boiler's operating
mode. In normal operation, maximum limitation of the boiler temperature is the upper
limit value for the controlled boiler temperature setpoint.
Note!
The setting range of Setpoint min and Setpoint max is limited by Setpoint manual
control.
120 °C
2213
2211
2210
2212
8 °C
Normal operating mode
Range of control
Boiler setpoint
7471z97e/1210

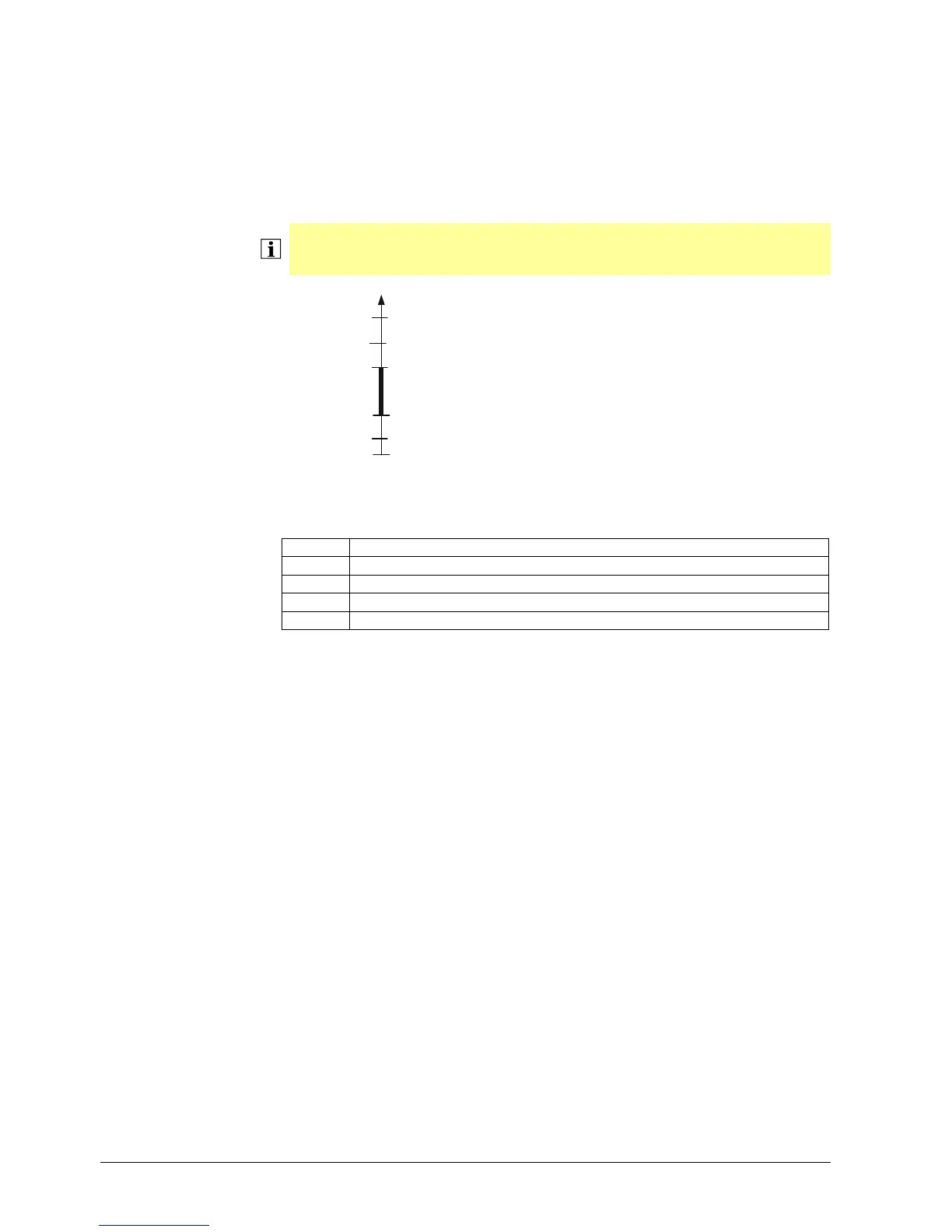

Figure 37: Boiler setpoints
Key
Line no. Meaning
2210 Setpoint minimum
2211 Setpoint minimum OEM
2212 Setpoint maximum
2213 Setpoint maximum OEM
