Building Technologies Division User Manual LMS14… CC1U7471en
6 The settings in detail 28.01.2015
6.12.7 Boiler control
Boiler control comprises all functions that translate a request (boiler temperature
setpoint) to an output signal (control of burner as a percentage).
Such functions include:
 Frost protection for the boiler
 2-position control
 Modulating control
 Limitation and output of manipulated variable
 Chimney sweep
 Controller stop
 Manual control
The boiler loop is in the form of a single temperature control loop.
Ts ol l TIstP
KK
PWMT

Strecke
T
T
K K
Strecke
Pv
n
Boiler
setpoint
Pneumatical /
electrical
ratio
Adjustment of
manipulated
variable
Setpoint preselection Controller
K Sensor Sensor

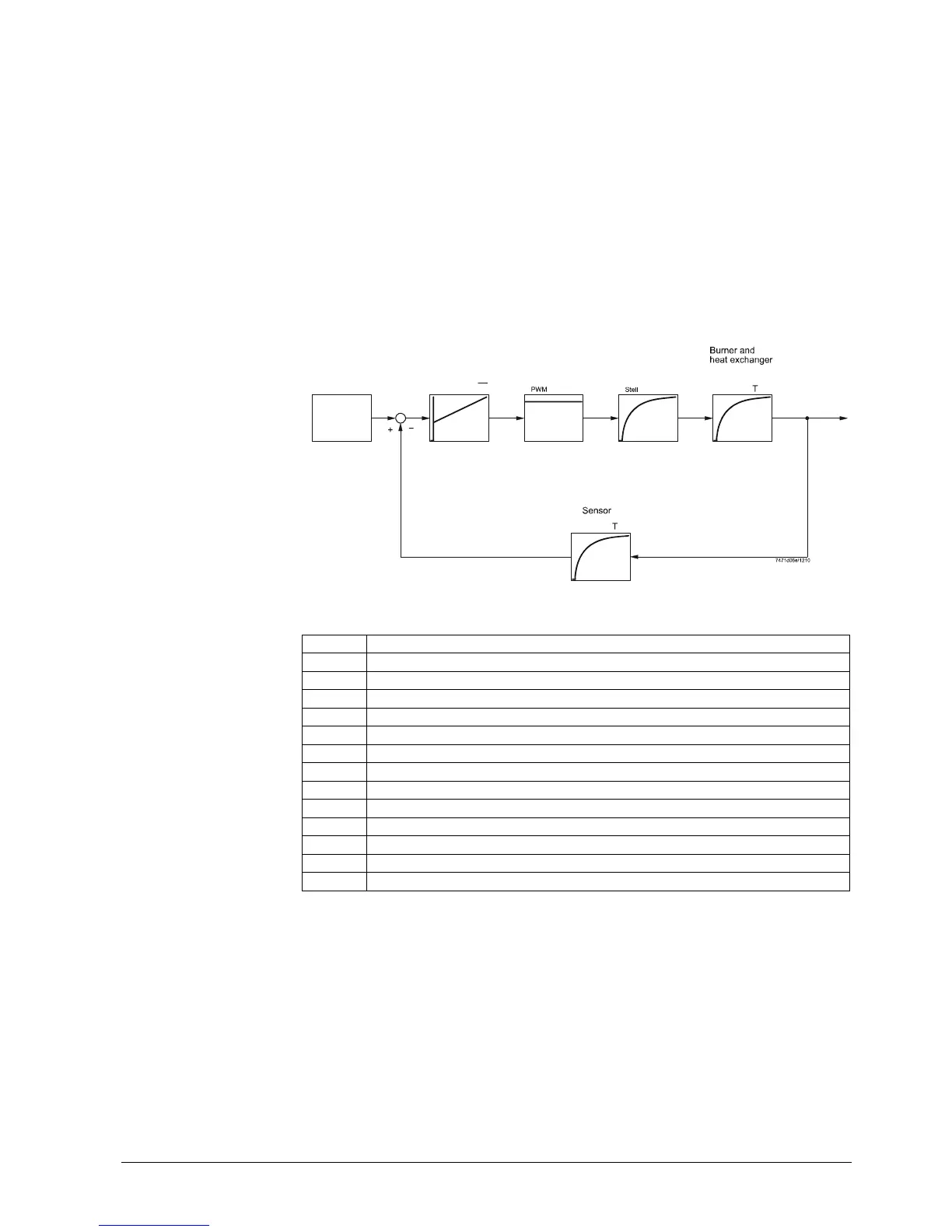

Figure 52: Boiler control – modulating control
Key
Line no. Meaning
KFühler Sensor characteristic
KP Controller gain 1/XP
KPWM Conversion factor for positioning signal
KStell Fan characteristic
KStrecke Gain of controlled system
TStrecke Temperature of controlled system
P Pressure
PWM Fan control
TFühler Temperature acquired by sensor
TIst Actual value of temperature
Tn Integral action time
Tsoll Temperature setpoint
Tv Derivative action time
Modulating control
